Drop & Lock
Panel Attachment System
Metal Panel Attachment System
Drop & Lock enables fast and sealant-free installation of metal panels and other hardware for architectural metal systems.

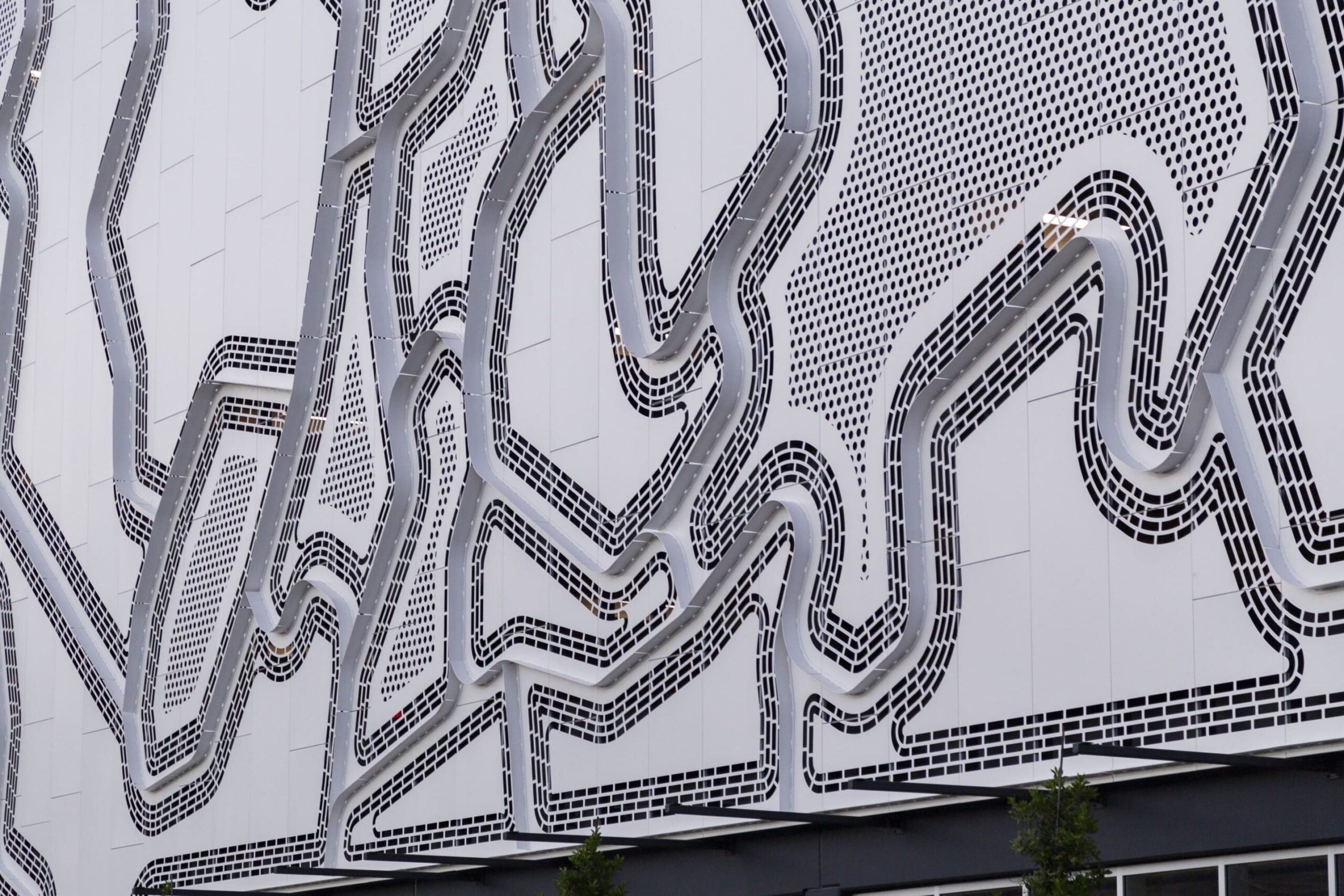

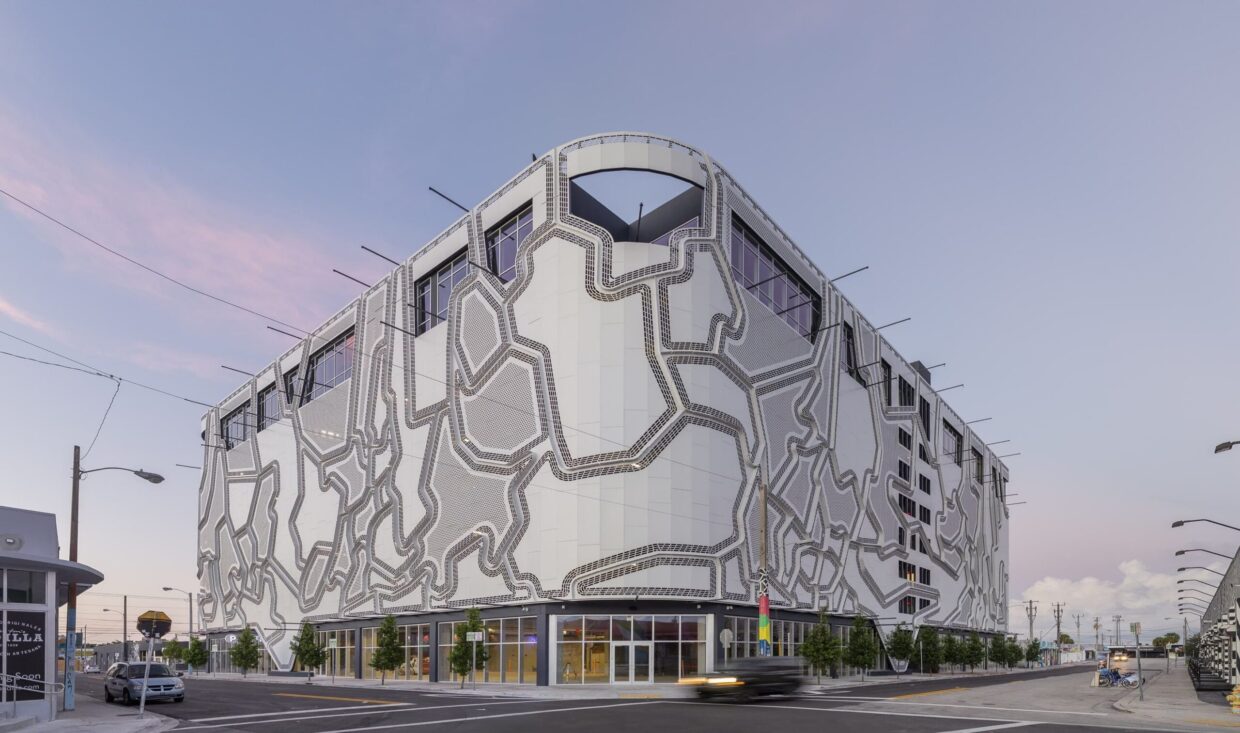

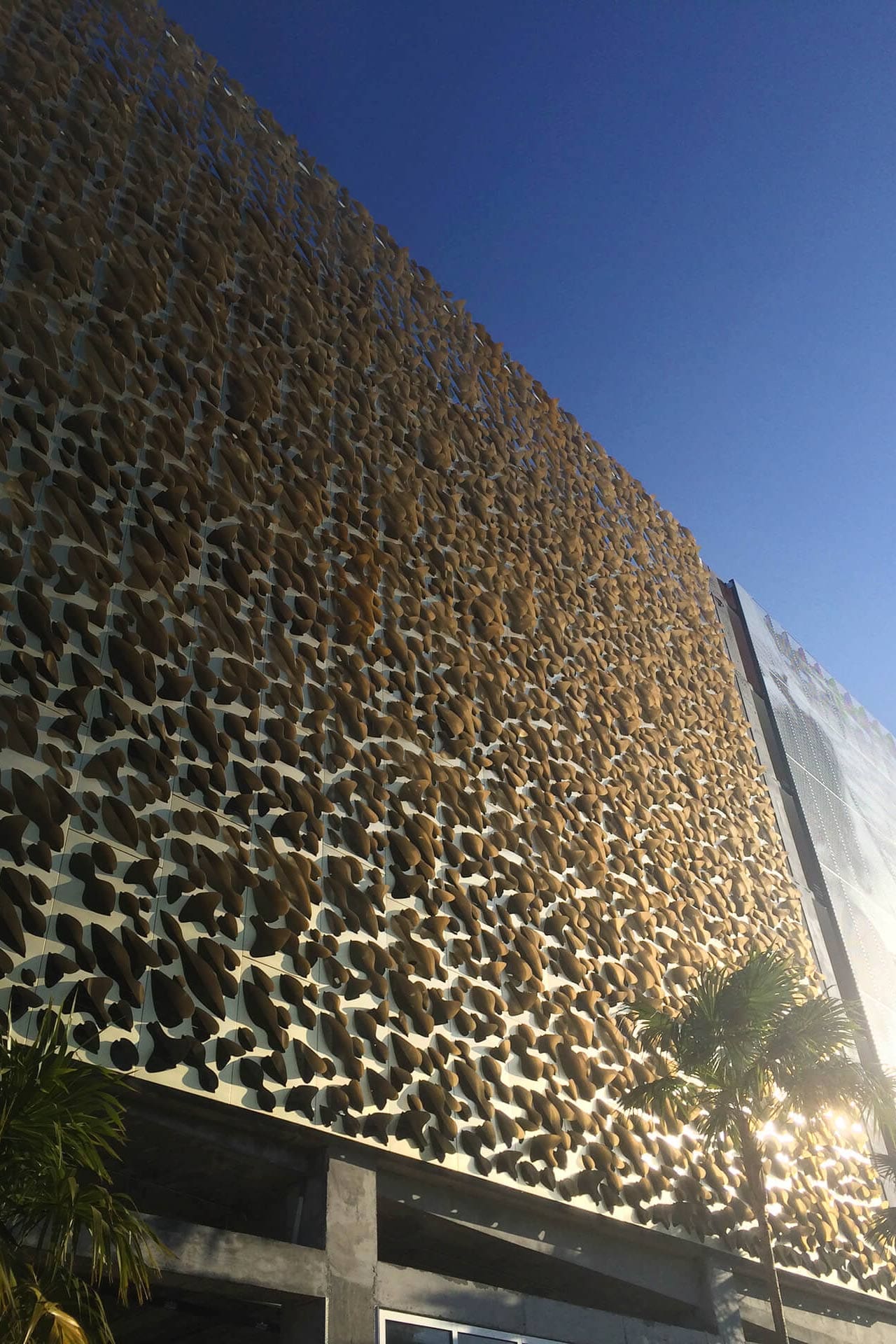

Miami, Florida
Drop & Lock
Details
36 Inch
- Panel Height, in : 35.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 11
- Solanum Steel : 16
- Oscura Blackened Steel : 13
- Spectura Steel : 13
- Dirty Penny Copper : 13
- Star Blue Copper : 13
- Baroque Zinc : 11
- Hunter Zinc : 11
- Roano Zinc : 11
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
54 Inch
- Panel Height, in : 53.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 16
- Solanum Steel : 24
- Oscura Blackened Steel : 19
- Spectura Steel : 19
- Dirty Penny Copper : 19
- Star Blue Copper : 19
- Baroque Zinc : 16
- Hunter Zinc : 16
- Roano Zinc : 16
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
90 Inch
- Panel Height, in : 89.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 26
- Solanum Steel : 39
- Oscura Blackened Steel : 32
- Spectura Steel : 32
- Dirty Penny Copper : 32
- Star Blue Copper : 32
- Baroque Zinc : 27
- Hunter Zinc : 27
- Roano Zinc : 27
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
108 Inch
- Panel Height, in : 107.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 32
- Solanum Steel : 47
- Oscura Blackened Steel : 38
- Spectura Steel : 38
- Dirty Penny Copper : 38
- Star Blue Copper : 38
- Baroque Zinc : 32
- Hunter Zinc : 32
- Roano Zinc : 32
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75

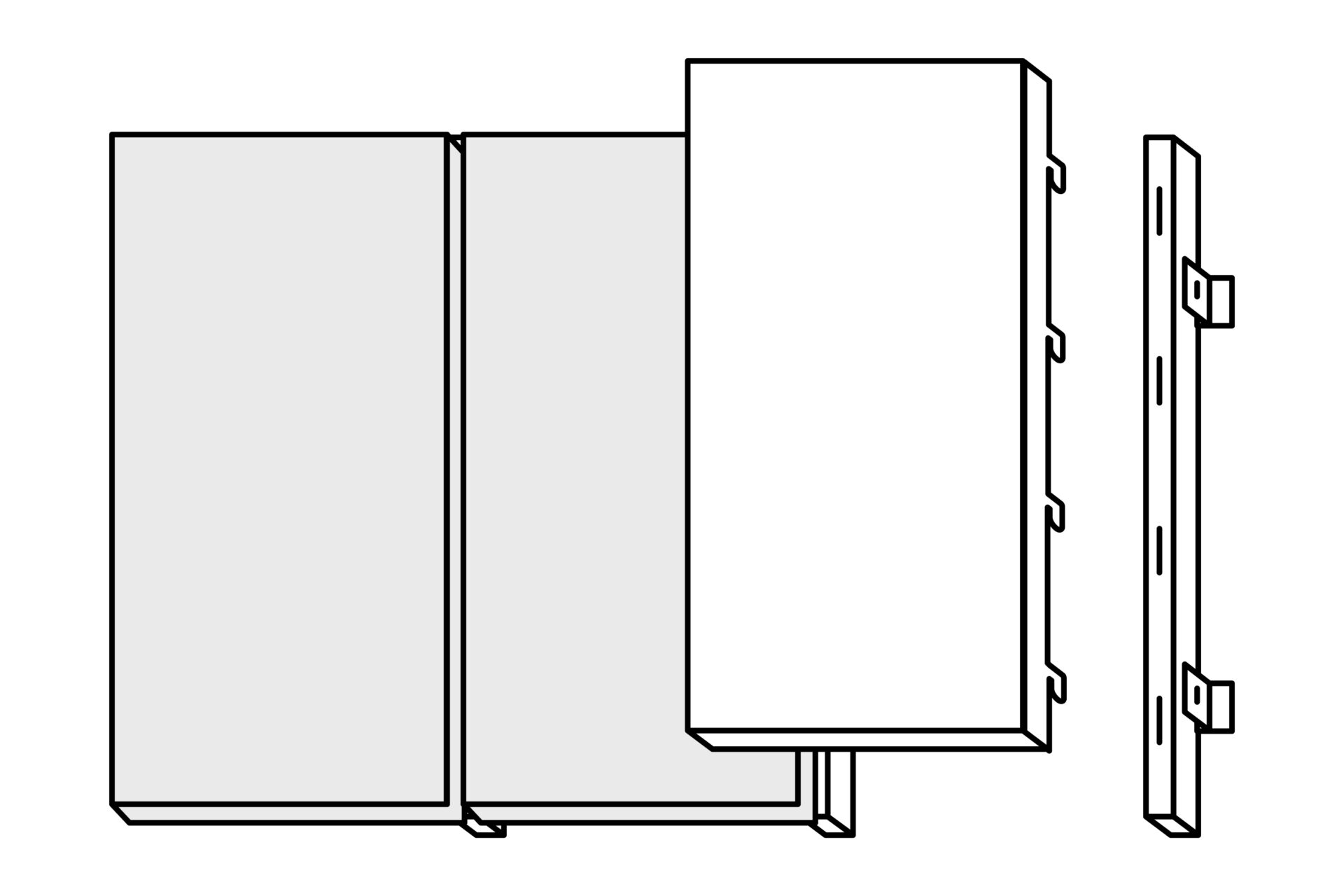

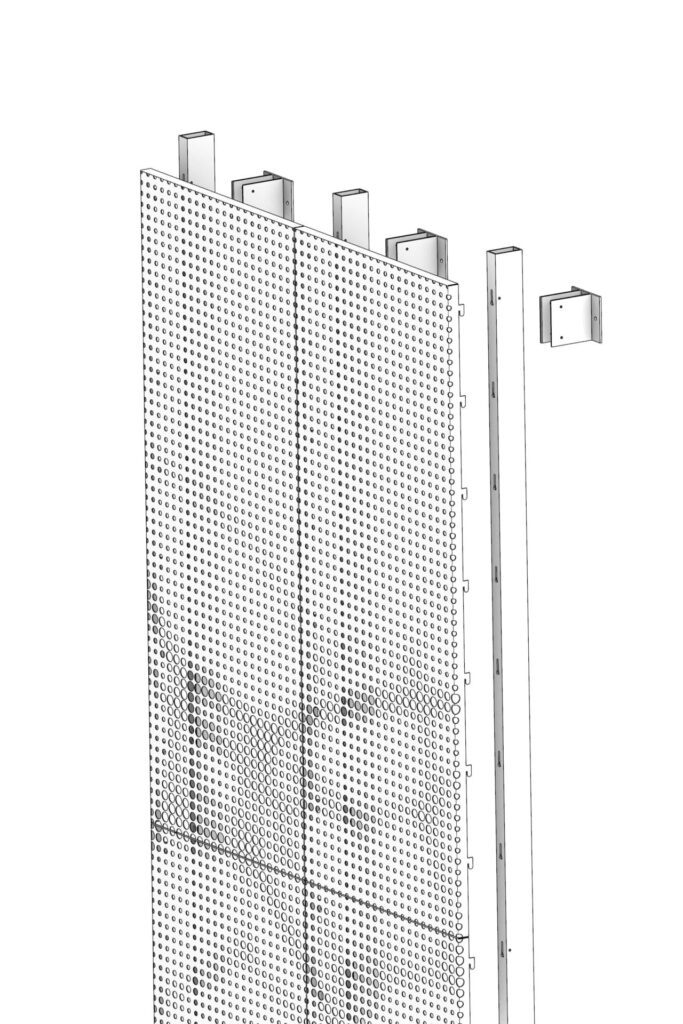

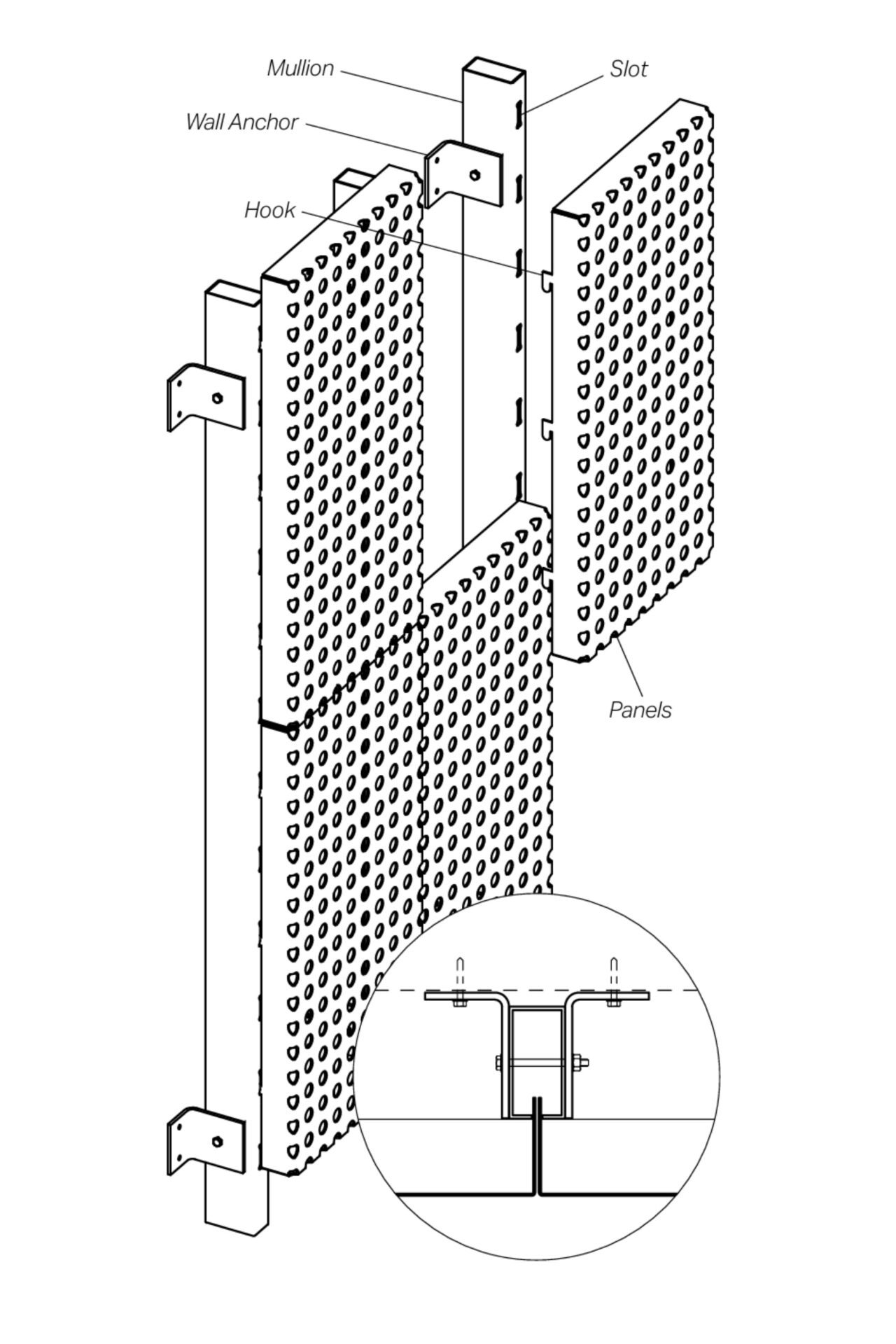

Exploded model of installed Drop & Lock panel.
© A. Zahner Company

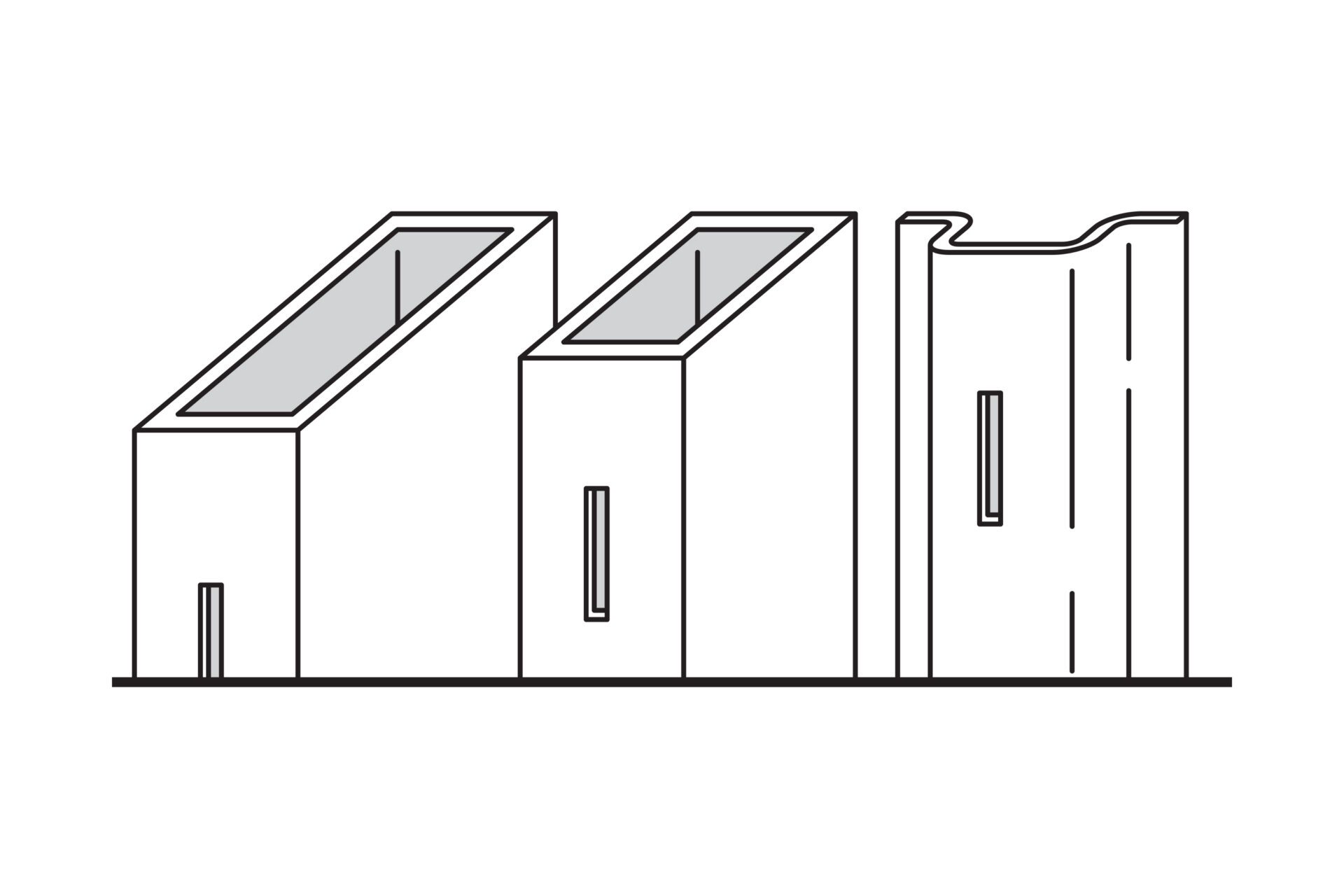

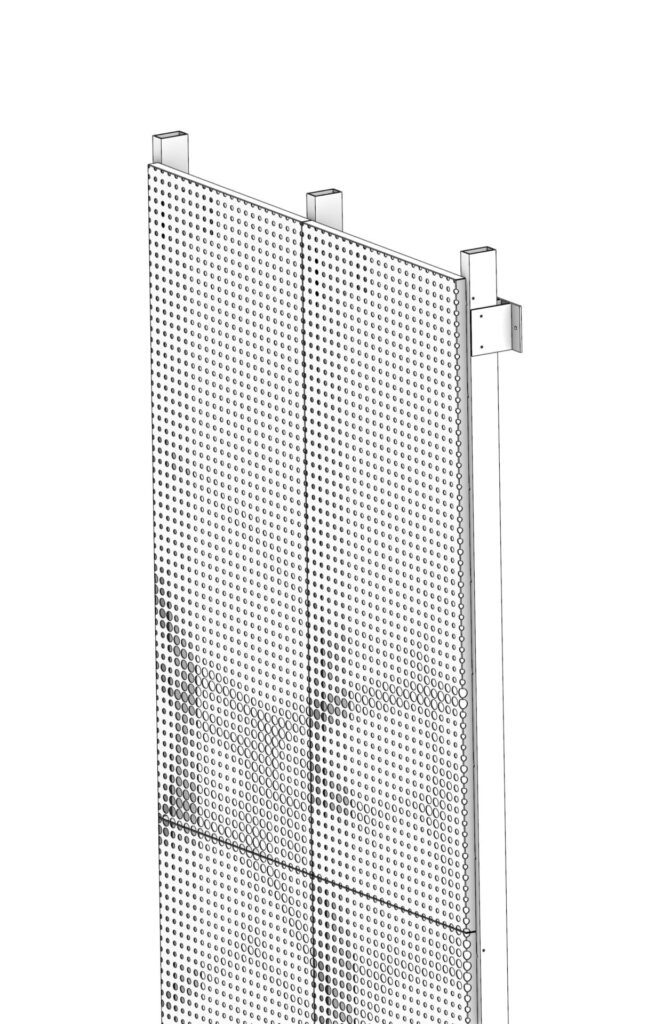

Model of installed Drop & Lock panel.
© A. Zahner Company

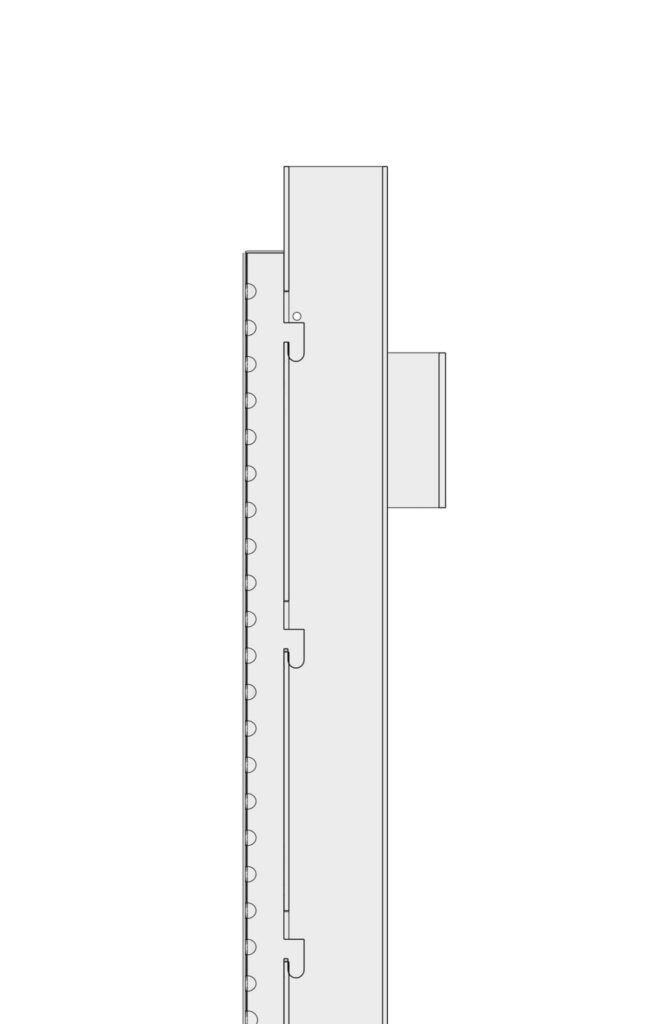

Profile model of installed Drop & Lock panel.
© A. Zahner CompanyAbout the Drop & Lock System
Drop & Lock comprises panels with returns that engage into vertical mullions using interlocking components. Once the mullions are laid out and in place, the panels are easily mounted. Installers lift the panels into position, insert L-shaped prongs into corresponding slots in the mullions, and drop them into place. The shape of the prongs and gravity immediately lock the panels into the mullions.
Great for any vertical wall application, we help your team choose the best material, surface treatments, panel sizes, and joint patterns for your project’s design and budget.
Benefits
| Installation | Quick and easy installation without need for special tools |
| Material Usage | Panel sizes can nest efficiently into raw material sheets |
| Removable Panels | Panels can easily be removed and replaced |
| Concealed Hardware | No visible fasteners; no visible backside weld transfer |
| Lower Engineering Effort | Details & specifications reduce engineering time |
Finishes for Drop & Lock System
Explore Zahner Surfaces that are ideal for use with Drop & Lock.

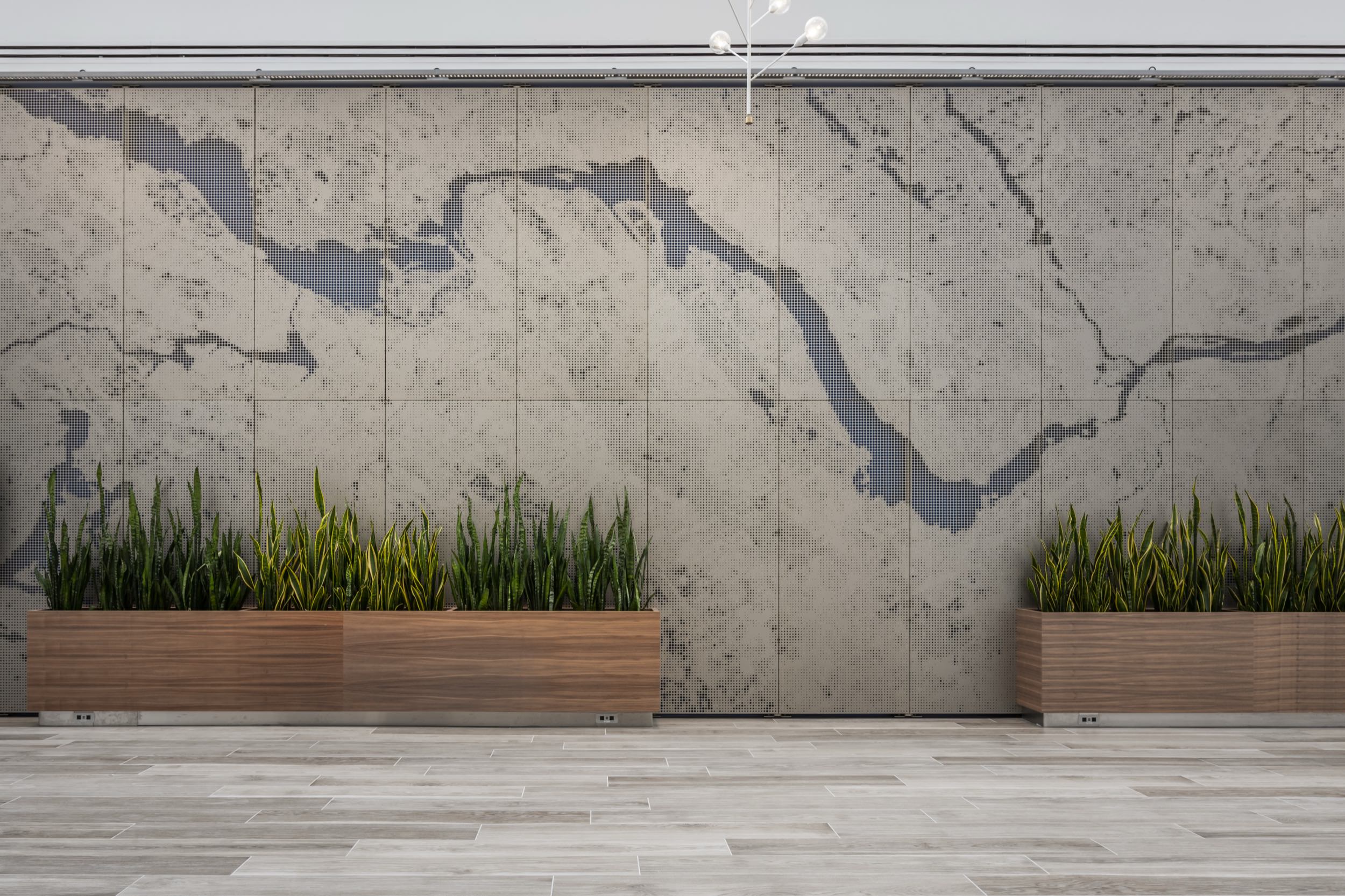

Drop & Lock Inspiration
See the Drop & Lock system in application.
Explore Drop & Lock in a selection of Zahner projects.
Specs & Info
| Title | File Type | Link |
|---|---|---|
| Double Return – Long Span – DWG / DXF / PDF | zip | |
| Double Return – Short Span – DWG / DXF / PDF | zip | |

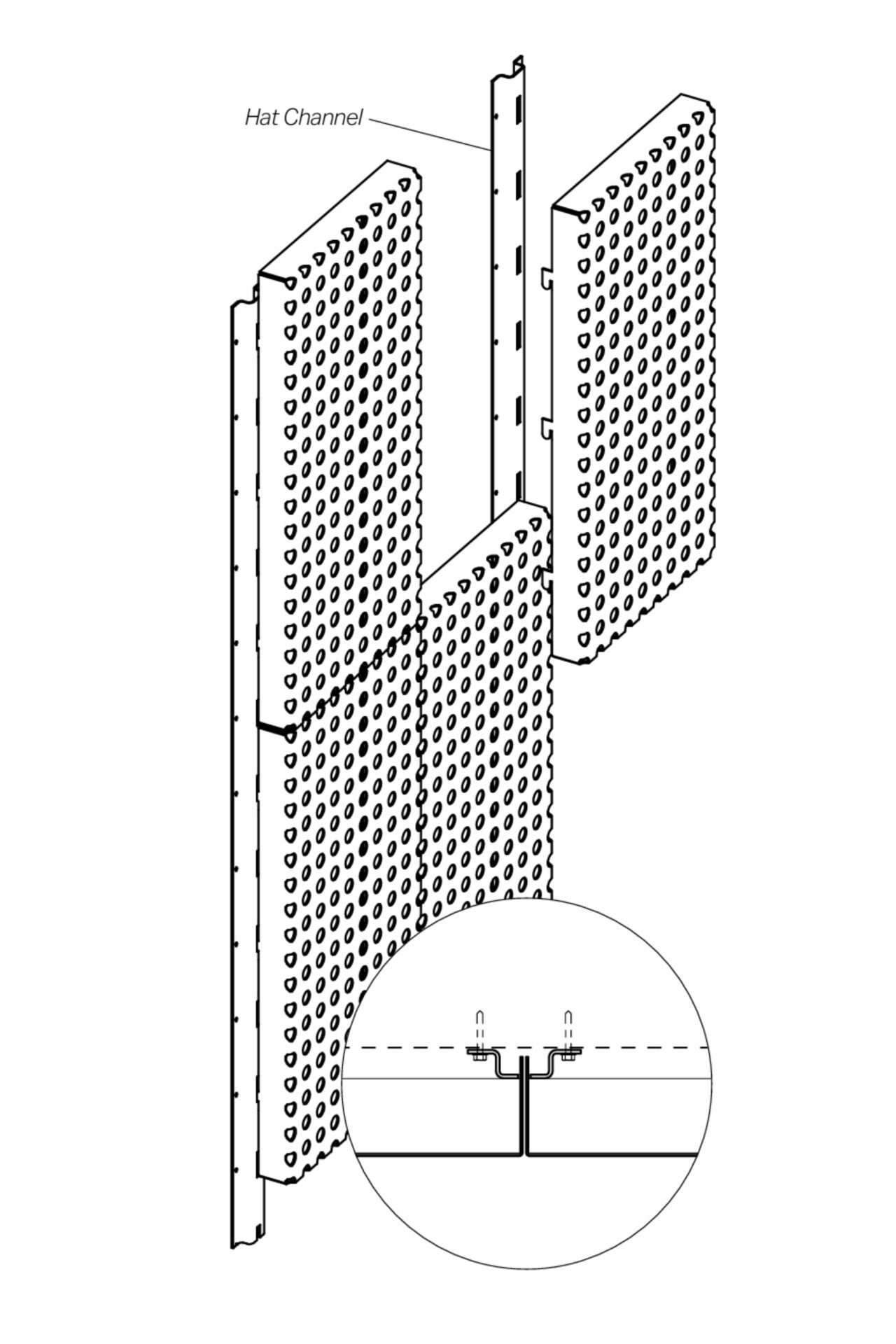

| Drop & Lock – with Hat Channel – DWG / DXF / PDF | zip | |
| Drop & Lock – with Mullion and Anchor – DWG / DXF / PDF | zip | |
| Image File Guidelines | ||
| ImageWall Inspiration Guide | ||
| ImageWall Product Datasheet | ||
| ImageWall Specification – Double Return | docx | |
| ImageWall Specification – Drop & Lock | docx | |
| Surfaces Instructions – General Cleaning | ||
| Zahner Product Warranty |
Details
Painted Aluminum
- Alloy: 5052 H-32
- Available Finishes: 2-coat solid color 70% PVDF coating
- Material Thickness: 0.090″
- Panel Weight / sqft (without perforation): 1.27 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 37 PSF
- Double Return Panels – Long Span
- Not available
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 28 PSF
Anodized Aluminum
- Alloy: 5052 H-32
- Available Finishes: AAMA 611 Class I Anodizing
- Material Thickness: 0.125″
- Panel Weight / sqft (without perforation): 1.75 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 78 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 44 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 52 PSF
Stainless Steel
- Alloy: 304/316L
- Available Finishes: Angel Hair®
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.15 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 43 PSF
Weathering Steel
- Alloy: A606-4
- Available Finishes: Solanum Steel™
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.13 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 46 PSF
1at maximum deflection of Length/60
Articles
Learn More About Perforated Metal Panel Systems and Get Inspired
Read articles on the history, manufacturing, and application of perforated metal panels:

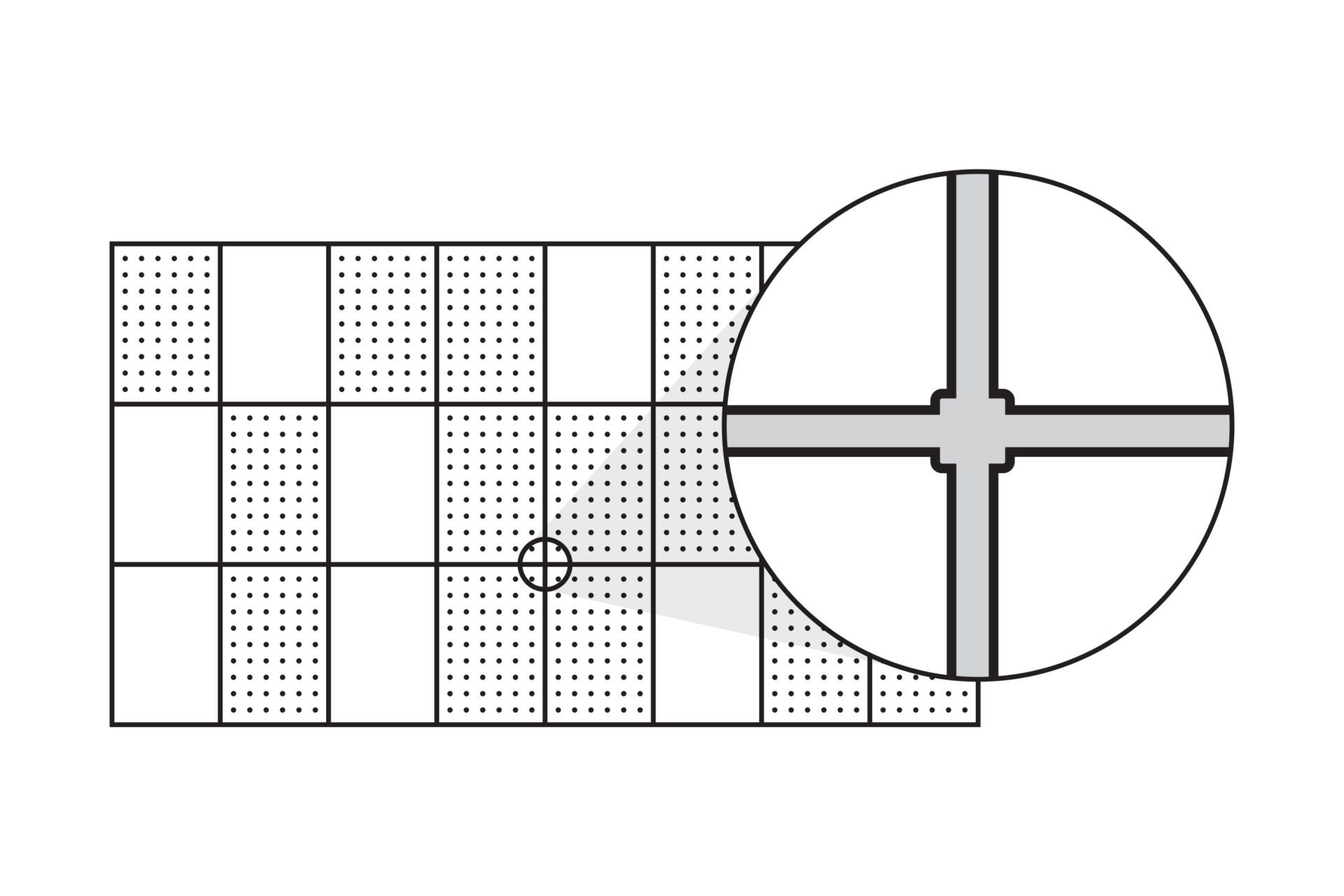

Transform Your Project with Drop & Lock

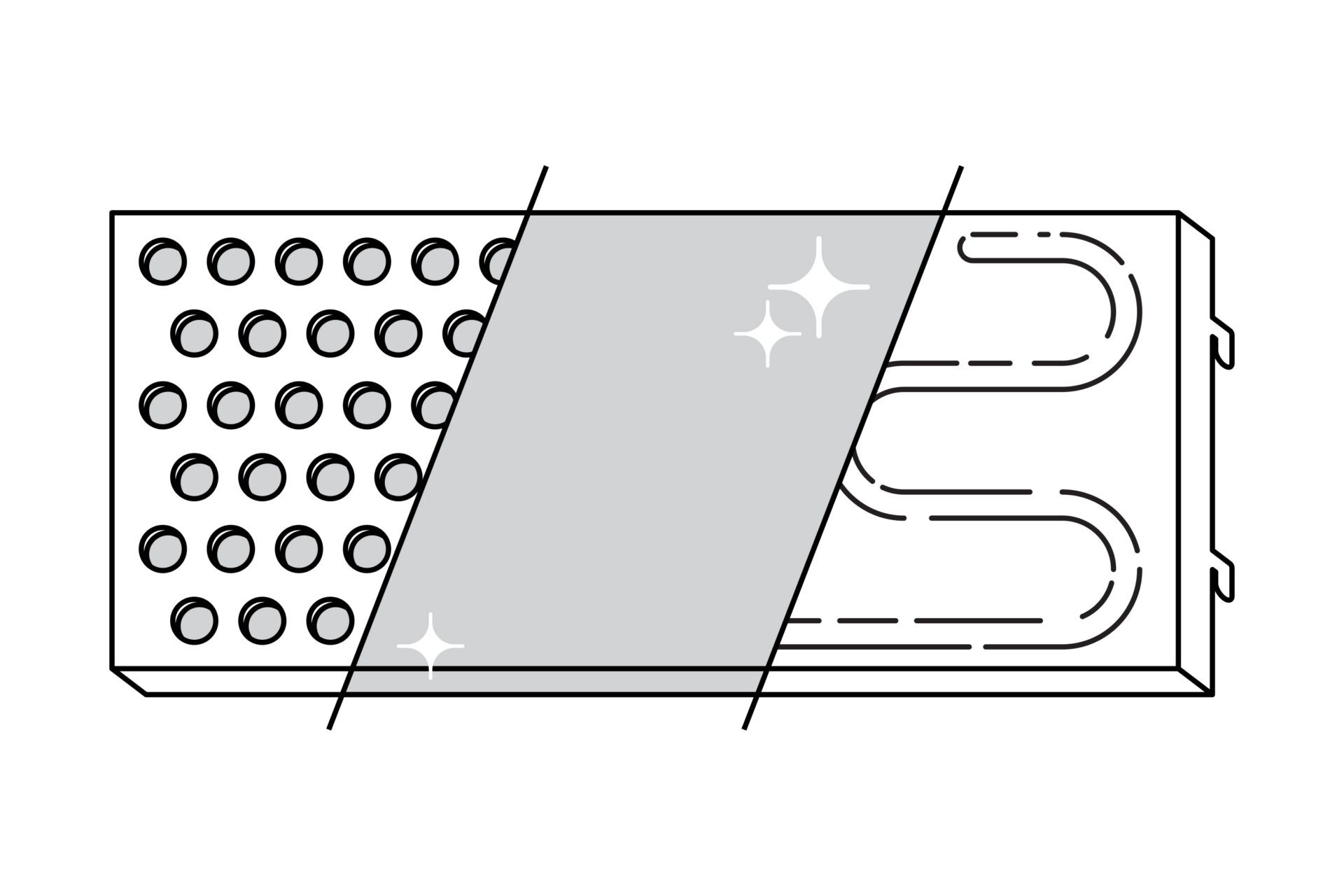

Create unique and visually stunning designs with the Drop & Lock customizable metal panel system.

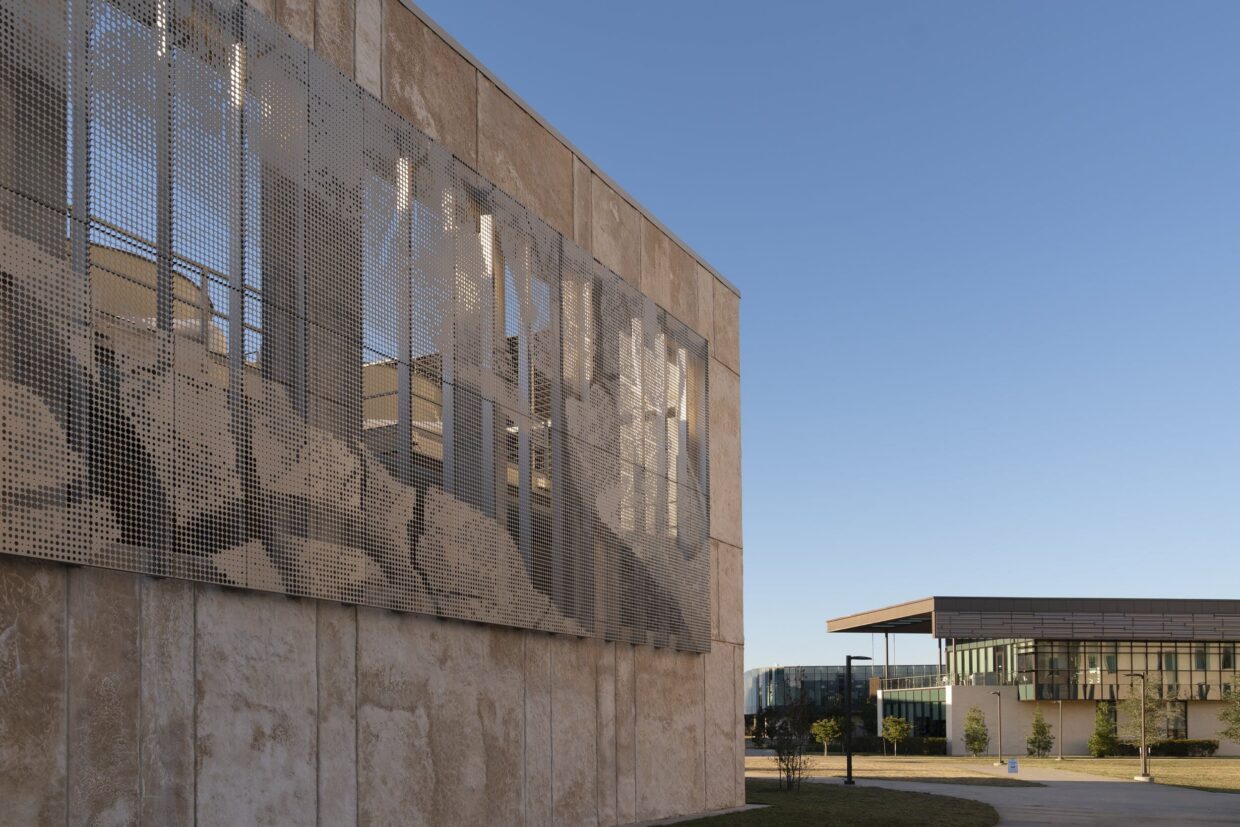

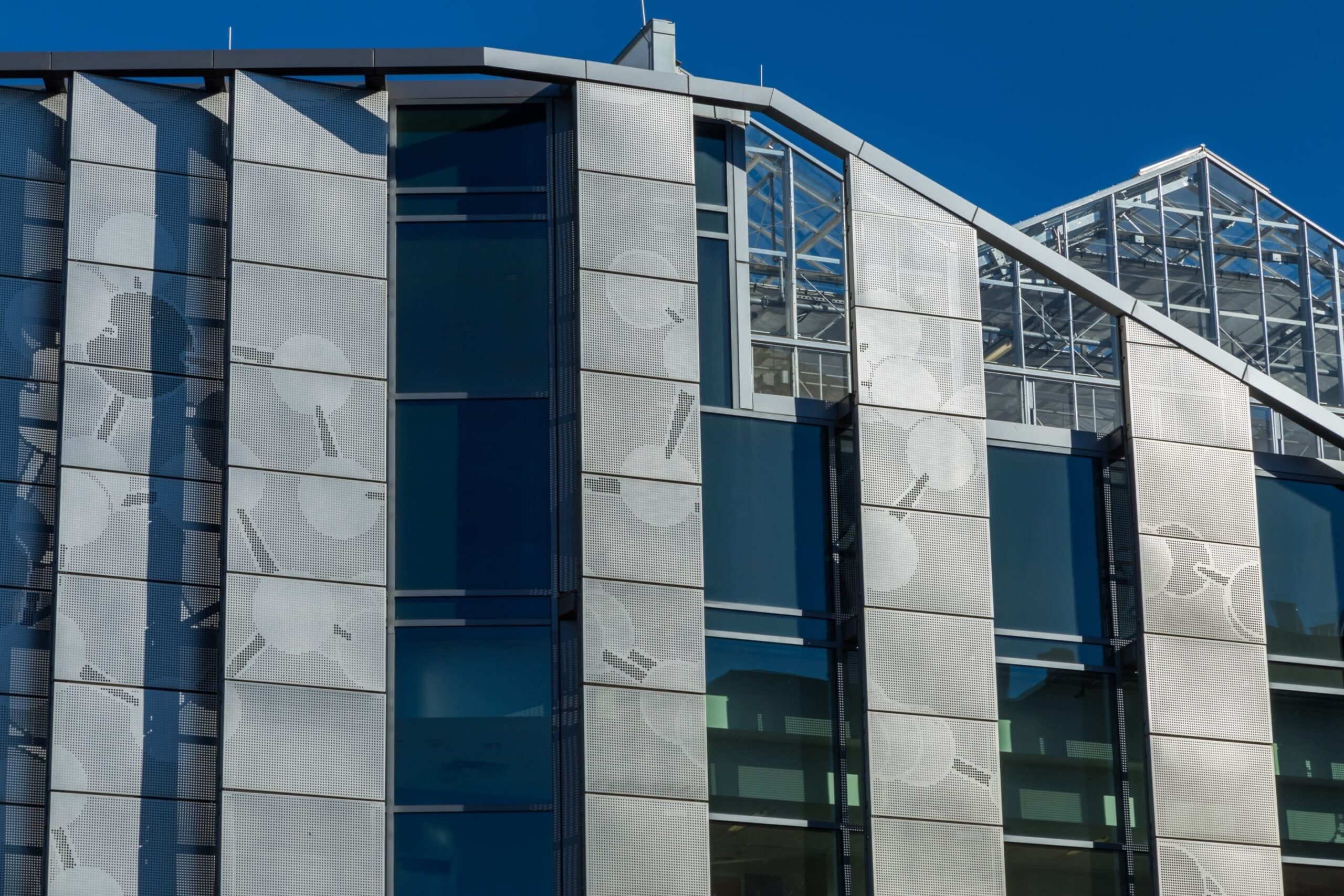

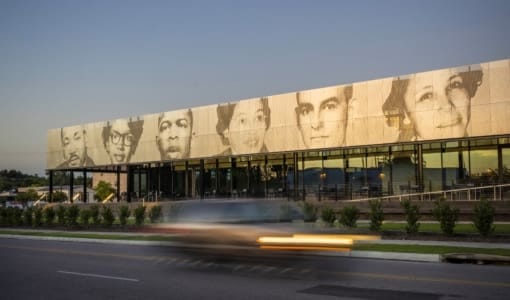

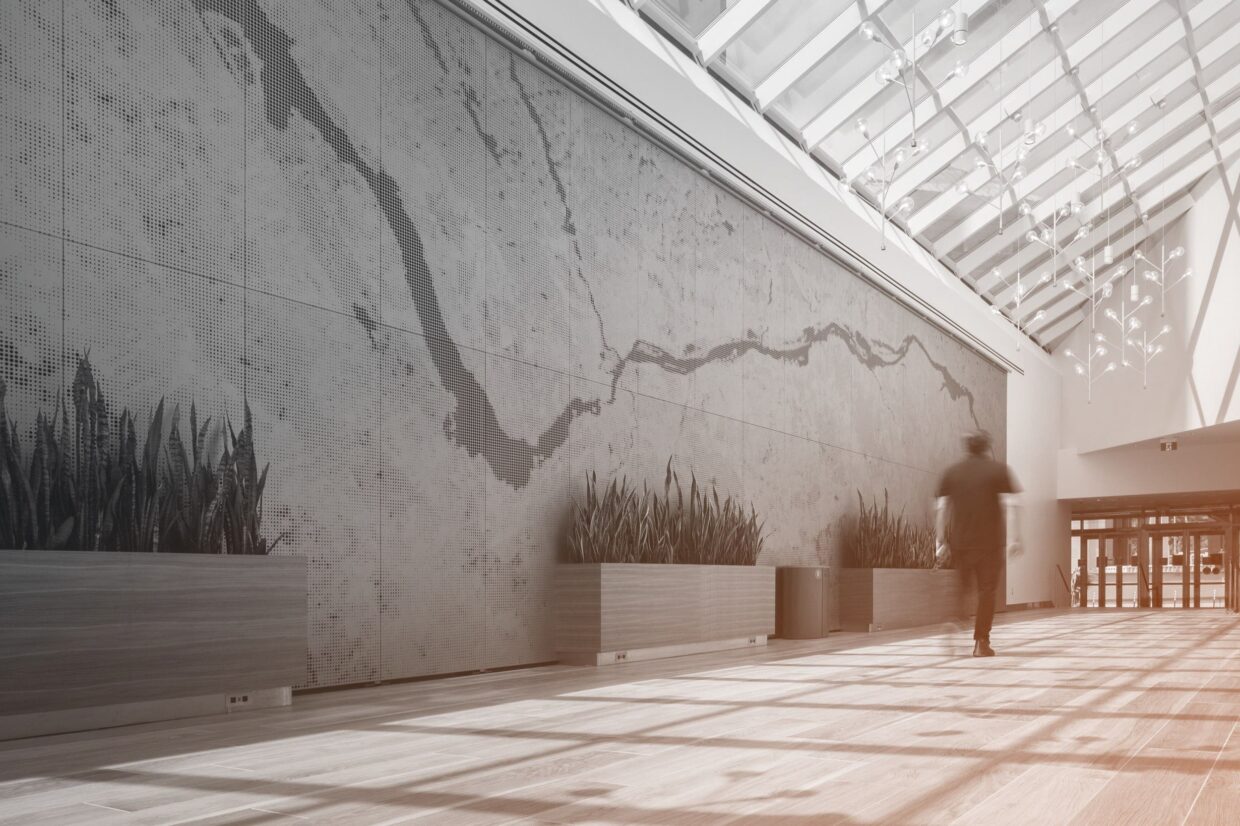

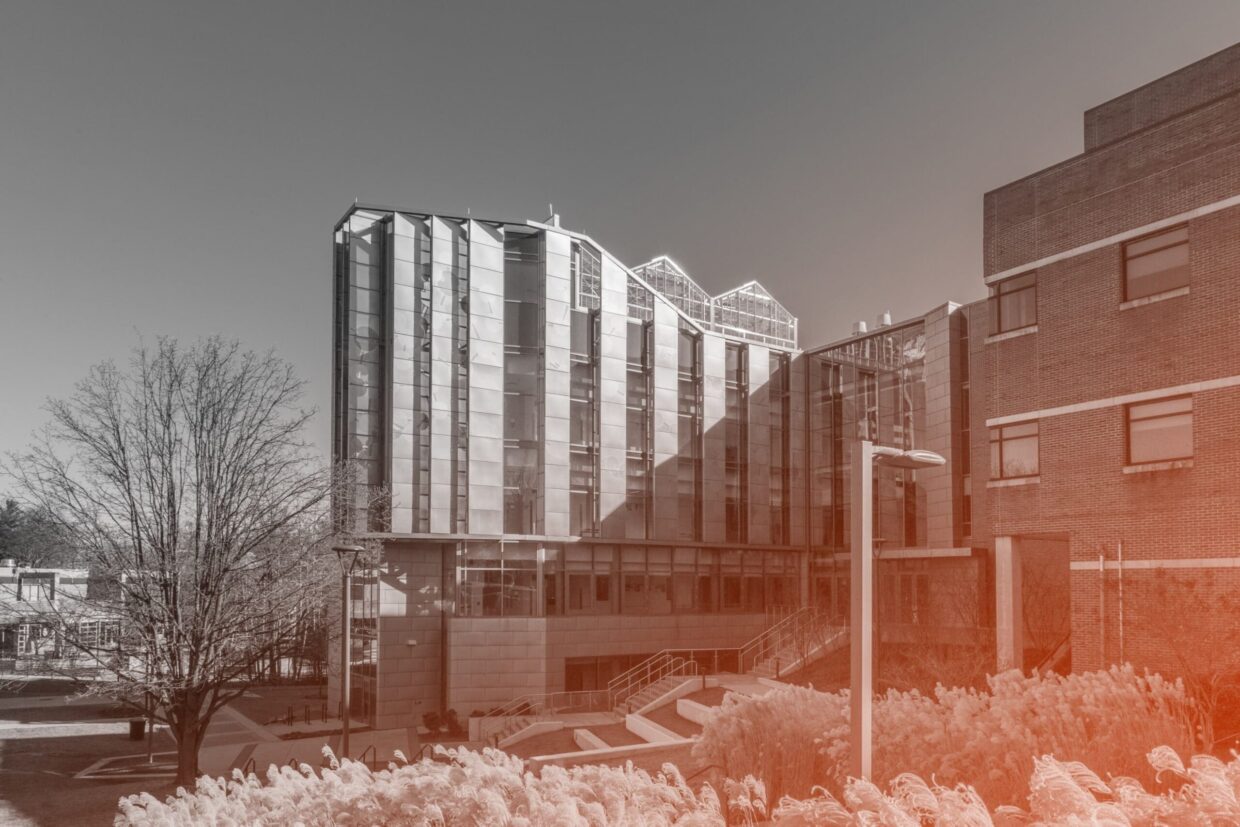

Recent Projects
Photo © Iwan Baan, Courtesy of Heatherwick Studio
PHOTO ©️ Parrish Ruiz de Velasco (parrch.com)

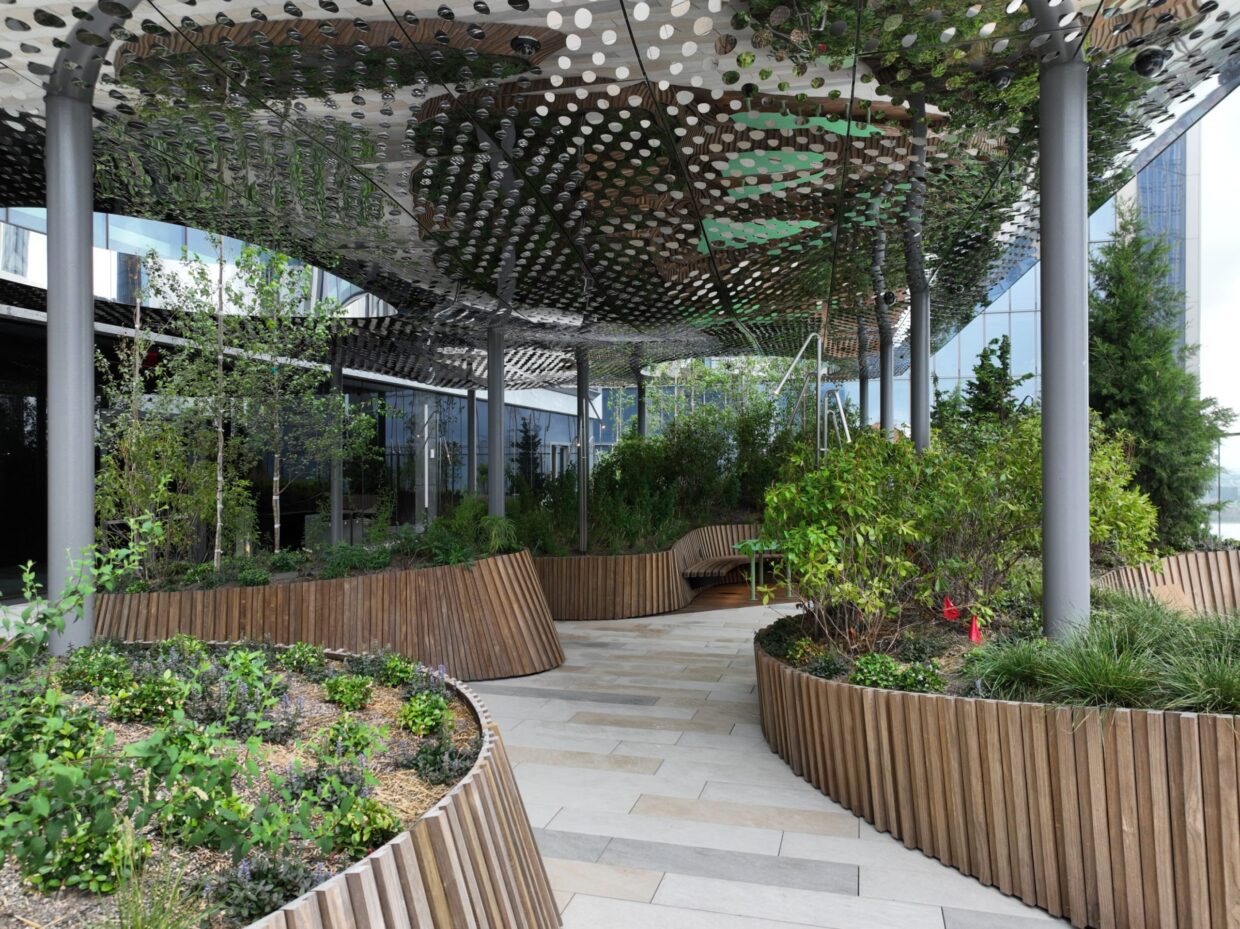

© Fedora Hat PhotographyPhoto © Iwan Baan, Courtesy of Heatherwick StudioPhoto © Iwan Baan, Courtesy of Heatherwick StudioLatest Updates
