ImageLines introduces brushstrokes to graphic perforation, generating an impressionistic style of emotion and movement that can accentuate images, words, and architectural details such as wayfinding points, entrances, and fenestrations.

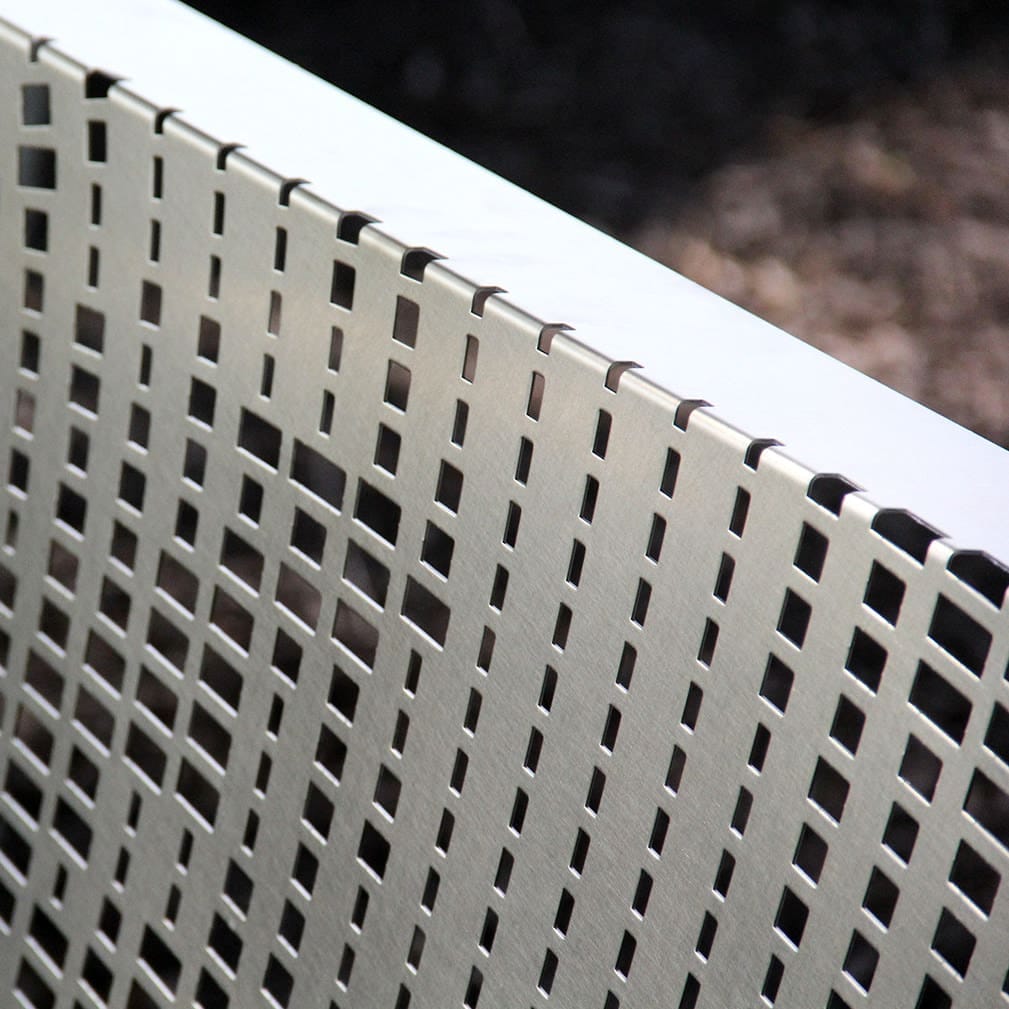

ImageLines panel detail view.
PHOTO © A. ZAHNER COMPANY.For architects and designers who want to add an extra level of creativity, wonder, and visual appeal to any project, ImageLines offers an exciting twist to graphic perforation that can be specified, ordered, and installed within a reasonable lead time and budget.
ImageLines draws from Zahner’s unique combination of multiple disciplines including design, engineering, and fabrication that ensures craftsmanship and quality. The end result is a curvilinear perforated metal panel system that is durable, mesmerizing and affordable.
ImageLines uses a one-of-a-kind technology that positions perforations along an array of customizable lines & curves. This new approach adds a painterly alternative to the printing aesthetic so far available in the marketplace.
ImageLines’ “brushstrokes” can be used to emphasize elements of the source image or to highlight architectural features, giving architects and designers new palettes and tools to fostering creativity and embolden new ideas through greater design variety.
With lightweight visualization and modeling tools that make it easy to experiment, ImageLines fuels the drive to innovate and create affordable perforated metal panels that wow clients and make spaces more interesting, engaging, and functional.

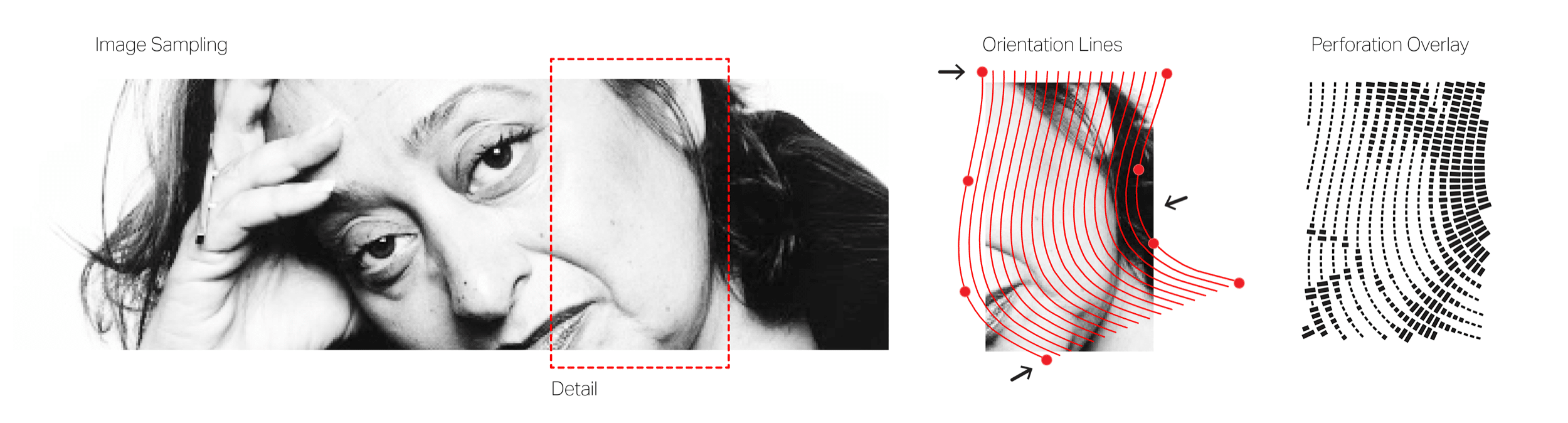

The ImageLines pattern generation process includes image sampling, establishing orientation lines, and then creating the perforation overlay along the orientation lines.
PHOTO © A. ZAHNER COMPANY.
Use ImageLines to create perforated metal imagery that emphasizes and accentuates design features.
PHOTO © A. ZAHNER COMPANY.Launch the ImageLines visualizer, upload your own images, and see how ImageLines can take your perforated facades to the next level.
| Title | File Type | Link |
|---|---|---|
| Double Return – Long Span – DWG / DXF / PDF | zip | |
| Double Return – Short Span – DWG / DXF / PDF | zip | |
| Drop & Lock – with Hat Channel – DWG / DXF / PDF | zip | |
| Drop & Lock – with Mullion and Anchor – DWG / DXF / PDF | zip | |
| Image File Guidelines | ||
| ImageLines Product Datasheet | ||
| ImageLines Specification – Double Return | docx | |
| ImageLines Specification – Drop & Lock | docx | |
| ImageWall Inspiration Guide | ||
| Surfaces Instructions – General Cleaning | ||
| Zahner Product Warranty |
| Material | Painted Aluminum | Anodized Aluminum | Stainless Steel | Weathering Steel |
| Alloy | 5052 H-32 | 5052 H-32 | 304/316L | A606-4 |
| Available Finishes | 2-coat solid color 70% PVDF coating | AAMA 611 Class I Anodizing | Angel Hair® | Solanum Steel™ |
| Material Thickness | 0.090″ | 0.125″ | 0.075″ | 0.075″ |
| Panel Weight / sqft (without perforation) | 1.27 lbs | 1.75 lbs | 3.15 lbs | 3.13 lbs |
| Perforation Grid Size | Image Optimized (maximum ⅝” x 2⅛”) | Image Optimized (maximum ⅝” x 2⅛”) | Image Optimized (maximum ⅝” x 2⅛”) | Image Optimized (maximum ⅝” x 2⅛”) |
| Perforation Hole Sizes | ½” x ⅛” to ½” x 2” rectangles | ½” x ⅛” to ½” x 2” rectangles | ½” x ⅛” to ½” x 2” rectangles | ½” x ⅛” to ½” x 2” rectangles |
| Double Return Panels – Short Span | Painted Aluminum | Anodized Aluminum | Stainless Steel | Weathering Steel |
| Panel Face Width x Length | maximum 40″ x 120” | maximum 40″ x 120” | maximum 40″ x 120” | maximum 40″ x 120” |
| Panel Face Depth | 2.5″ | 2.5″ | 2.5″ | 2.5″ |
| Double Return Panels – Long Span | Painted Aluminum | Anodized Aluminum | Stainless Steel | Weathering Steel |
| Panel Face Width x Length | Not Available | maximum 30” x 90” | maximum 30” x 90” | maximum 30” x 90” |
| Panel Face Depth | Not Available | 4″ | 4″ | 4″ |
| Drop & Lock Panels | Painted Aluminum | Anodized Aluminum | Stainless Steel | Weathering Steel |
| Panel Face Width x Length | maximum 40″ x 120” | maximum 40″ x 120” | maximum 40″ x 120” | maximum 40″ x 120” |
| Panel Face Depth | 2.75″ | 2.75″ | 2.75″ | 2.75″ |
Read articles on the history, manufacturing, and application of perforated metal panels:

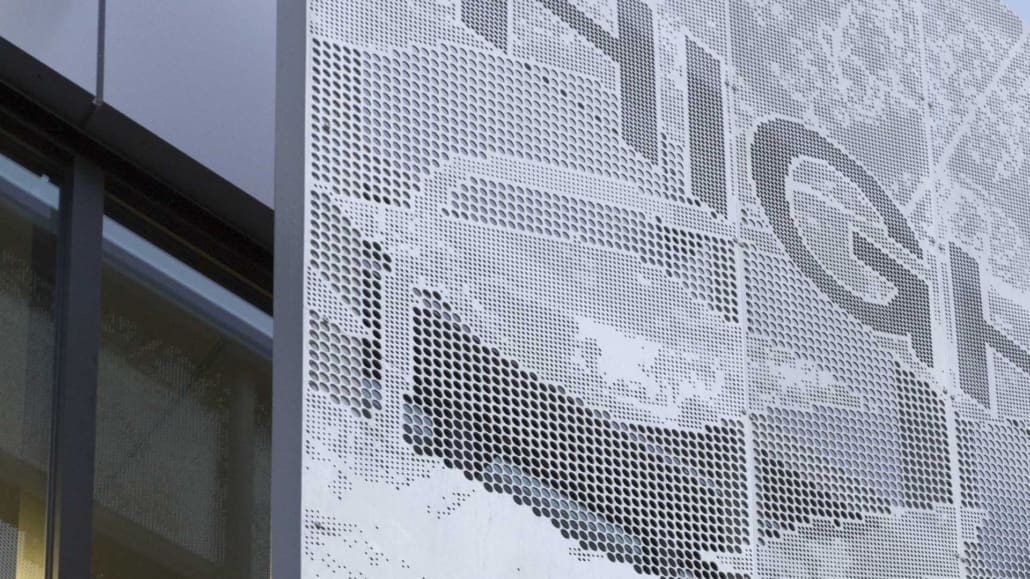

PERFORATED METAL SIGNAGE FOR HIGHLAND PARK COMMUNITY CENTER.

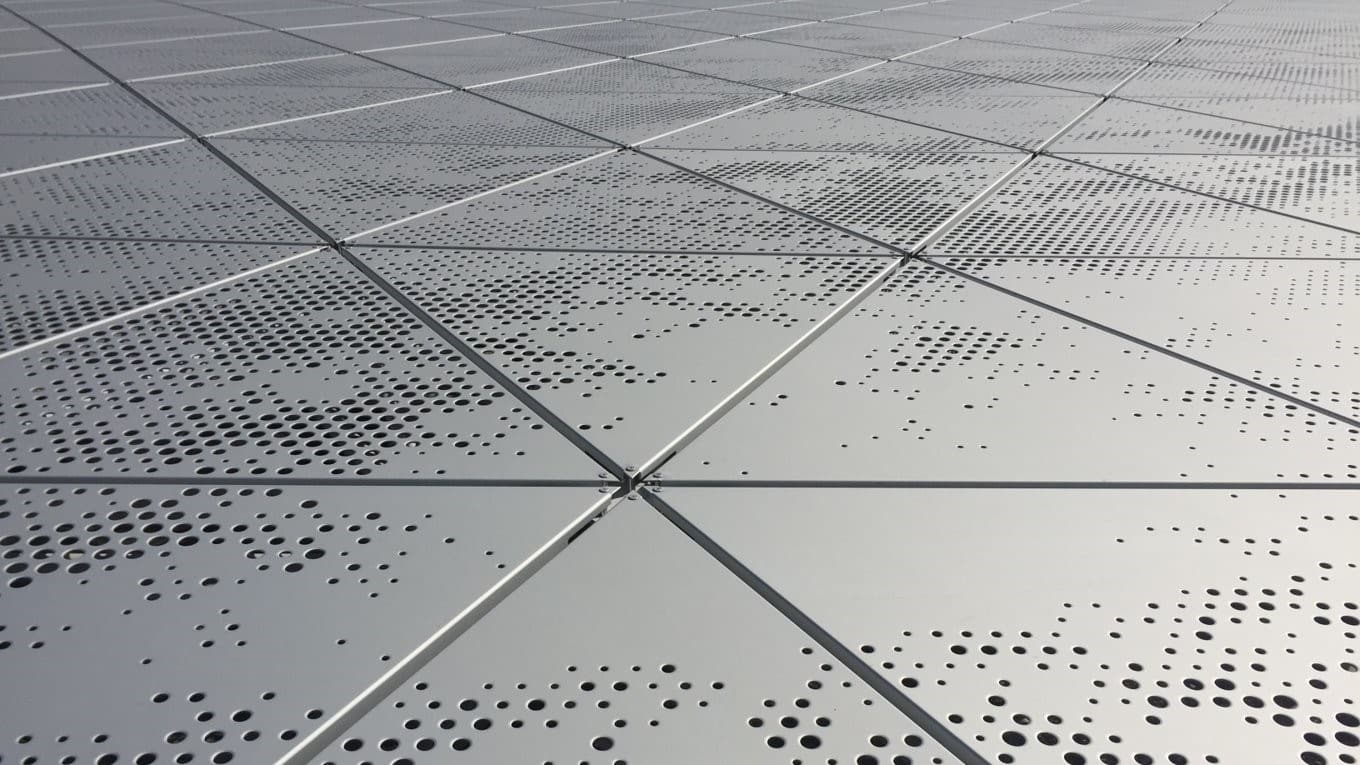

PHOTO © CHRISTIE RACHELLE.The open area of perforated panels determines shading, ventilation, performance, and function.
Architizer editors explore the creative potential of perforated metal panel systems.
Explore the history of perforated metal and the innovation of image-based perforation technologies.
Learn about the new renaissance of perforated metal and imagery created through selective perf.
