Where Innovation, Creativity, and Systems Meet

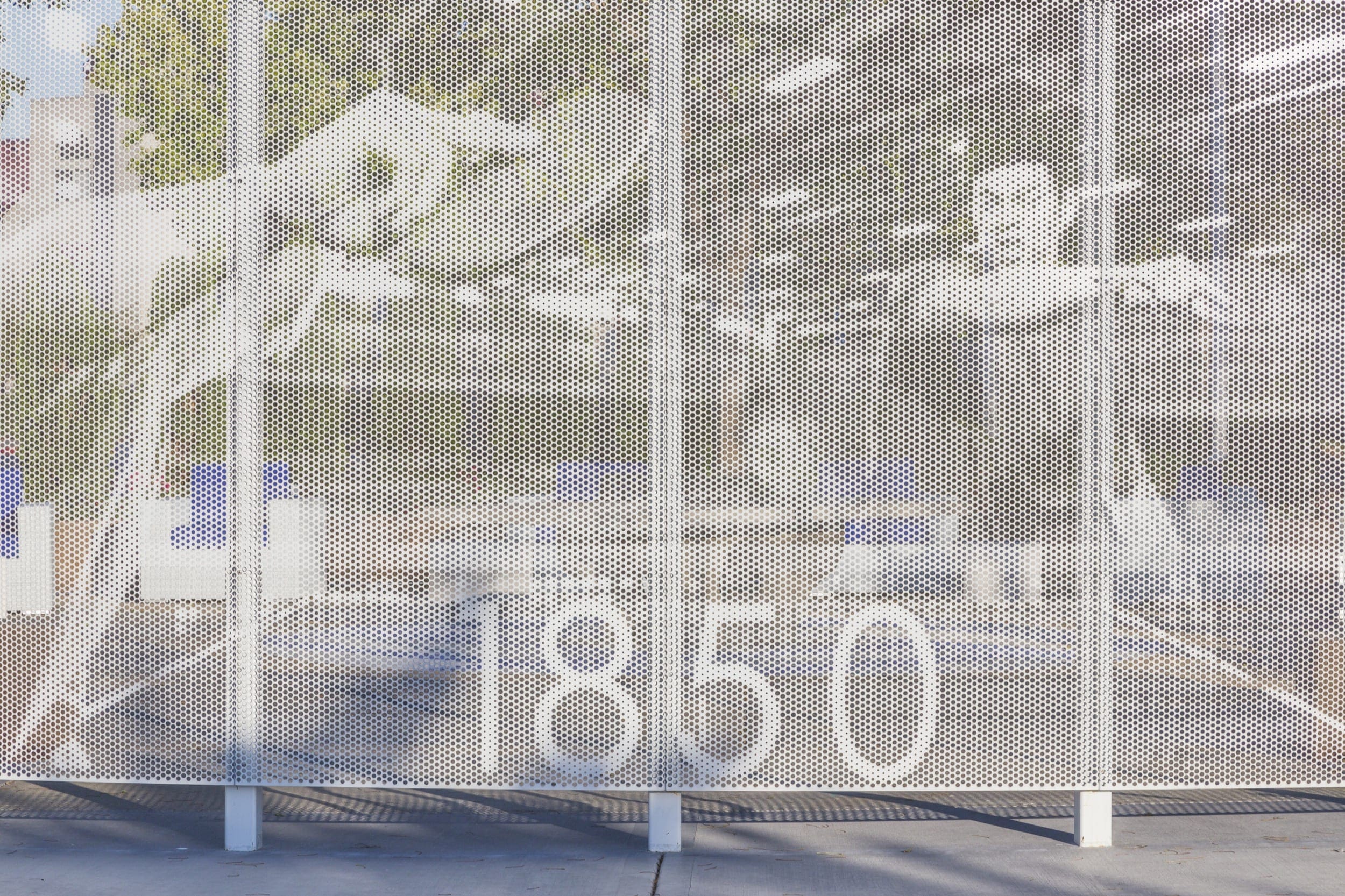

Zahner ImageWall perforated metal panels offer architects and designers the ability to create something unique and special for lobbies, parking garage facades, aging exteriors, or partitioned outdoor spaces. Depending on your design goals, ImageWall fits most any budget or timeline, and comes in a variety of materials and designs that can create warmth, contrast, color, and privacy.

Your Creativity, Visualized.

Start Your ImageWall

See your designs become perfectly perforated with the ImageWall Visualizer—a 3D rendering tool that allows you to upload your own images, select your finish of choice, and download a PNG export of your ImageWall design.

Product

Specifications & Details

TitleFile TypeLink
ImageWall Image File Guidelinespdf
ImageWall Inspiration Guidepdf
ImageWall Product Datasheetpdf
ImageWall Specification – Double Returndocx
ImageWall Specification – Drop & Lockdocx
ImageWall Warrantypdf
Painted Aluminum
  • Alloy: 5052 H-32
  • Available Finishes: 2-coat solid color 70% PVDF coating
  • Material Thickness: 0.090″
  • Panel Weight / sqft (without perforation): 1.27 lbs
  • Perforation Grid Size: 1” O.C.
  • Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
  • Double Return Panels – Short Span
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.5″
    • Panel Max Design Pressure (ASD)1: 37 PSF
  • Double Return Panels – Long Span
    • Not available
  • Drop & Lock Panels
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.75″
    • Panel Max Design Pressure (ASD)1: 28 PSF
Anodized Aluminum
  • Alloy: 5052 H-32
  • Available Finishes: AAMA 611 Class I Anodizing
  • Material Thickness: 0.125″
  • Panel Weight / sqft (without perforation): 1.75 lbs
  • Perforation Grid Size: 1” O.C.
  • Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
  • Double Return Panels – Short Span
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.5″
    • Panel Max Design Pressure (ASD)1: 78 PSF
  • Double Return Panels – Long Span
    • Panel Face Width x Length: maximum 30” x 90”
    • Panel Face Depth: 4″
    • Panel Max Design Pressure (ASD)1: 44 PSF
  • Drop & Lock Panels
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.75″
    • Panel Max Design Pressure (ASD)1: 52 PSF
Stainless Steel
  • Alloy: 304/316L
  • Available Finishes: Angel Hair®
  • Material Thickness: 0.075″
  • Panel Weight / sqft (without perforation): 3.15 lbs
  • Perforation Grid Size: 1” O.C.
  • Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
  • Double Return Panels – Short Span
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.5″
    • Panel Max Design Pressure (ASD)1: 51 PSF
  • Double Return Panels – Long Span
    • Panel Face Width x Length: maximum 30” x 90”
    • Panel Face Depth: 4″
    • Panel Max Design Pressure (ASD)1: 24 PSF
  • Drop & Lock Panels
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.75″
    • Panel Max Design Pressure (ASD)1: 43 PSF
Weathering Steel
  • Alloy: A606-4
  • Available Finishes: Solanum Steel™
  • Material Thickness: 0.075″
  • Panel Weight / sqft (without perforation): 3.13 lbs
  • Perforation Grid Size: 1” O.C.
  • Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
  • Double Return Panels – Short Span
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.5″
    • Panel Max Design Pressure (ASD)1: 51 PSF
  • Double Return Panels – Long Span
    • Panel Face Width x Length: maximum 30” x 90”
    • Panel Face Depth: 4″
    • Panel Max Design Pressure (ASD)1: 24 PSF
  • Drop & Lock Panels
    • Panel Face Width x Length: maximum 40″ x 120”
    • Panel Face Depth: 2.75″
    • Panel Max Design Pressure (ASD)1: 46 PSF

1at maximum deflection of Length/60

TitleFile TypeLink
Double Return – Long Span – DWG / DXF / PDFzip
Double Return – Short Span – DWG / DXF / PDFzip
Drop & Lock – with Hat Channel – DWG / DXF / PDFzip
Drop & Lock – with Mullion and Anchor – DWG / DXF / PDFzip
TitleFile TypeLink
ImageWall Image File Guidelinespdf
ImageWall Inspiration Guidepdf
ImageWall Product Datasheetpdf
ImageWall Specification – Double Returndocx
ImageWall Specification – Drop & Lockdocx
ImageWall Warrantypdf
MaterialPainted AluminumAnodized AluminumStainless SteelWeathering Steel
Alloy5052 H-325052 H-32304/316LA606-4
Available Finishes2-coat solid color 70% PVDF coatingAAMA 611 Class I AnodizingAngel Hair®Solanum Steel™
Material Thickness0.090″0.125″0.075″0.075″
Panel Weight / sqft (without perforation)1.27 lbs1.75 lbs3.15 lbs3.13 lbs
Perforation Grid Size1” O.C.1” O.C.1” O.C.1” O.C.
Perforation Hole Sizes0.25” – 0.875” in 1/16” increments0.25” – 0.875” in 1/16” increments0.25” – 0.875” in 1/16” increments0.25” – 0.875” in 1/16” increments
Double Return Panels – Short SpanPainted AluminumAnodized AluminumStainless SteelWeathering Steel
Panel Face Width x Lengthmaximum 40″ x 120”maximum 40″ x 120”maximum 40″ x 120”maximum 40″ x 120”
Panel Face Depth2.5″2.5″2.5″2.5″
Panel Max Design Pressure (ASD)137 PSF78 PSF51 PSF51 PSF
Double Return Panels – Long SpanPainted AluminumAnodized AluminumStainless SteelWeathering Steel
Panel Face Width x LengthNot Availablemaximum 30” x 90”maximum 30” x 90”maximum 30” x 90”
Panel Face DepthNot Available4″4″4″
Panel Max Design Pressure (ASD)1Not Available44 PSF24 PSF24 PSF
Drop & Lock PanelsPainted AluminumAnodized AluminumStainless SteelWeathering Steel
Panel Face Width x Lengthmaximum 40″ x 120”maximum 40″ x 120”maximum 40″ x 120”maximum 40″ x 120”
Panel Face Depth2.75″2.75″2.75″2.75″
Panel Max Design Pressure (ASD)128 PSF52 PSF43 PSF46 PSF
TitleFile TypeLink
Double Return – Long Span – DWG / DXF / PDFzip
Double Return – Short Span – DWG / DXF / PDFzip
Drop & Lock – with Hat Channel – DWG / DXF / PDFzip
Drop & Lock – with Mullion and Anchor – DWG / DXF / PDFzip

ImageWall Solutions

Applications

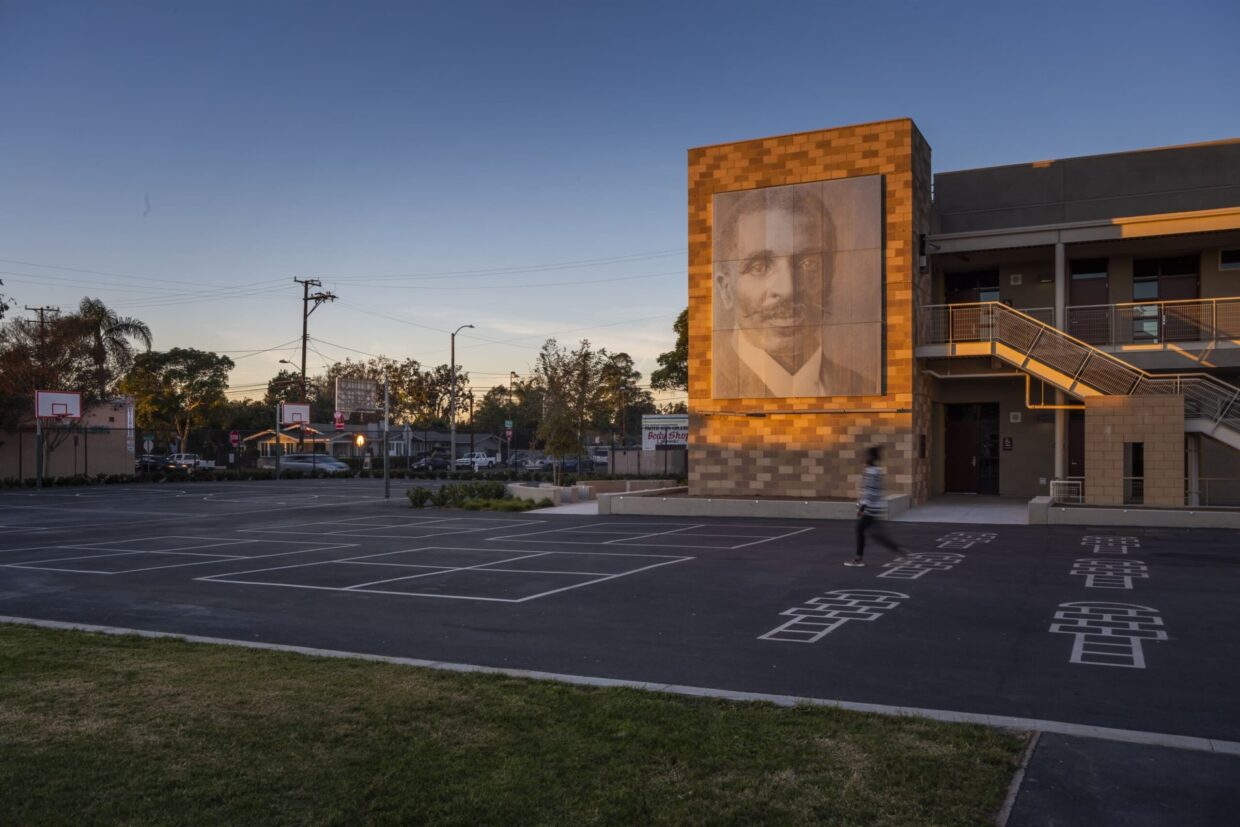

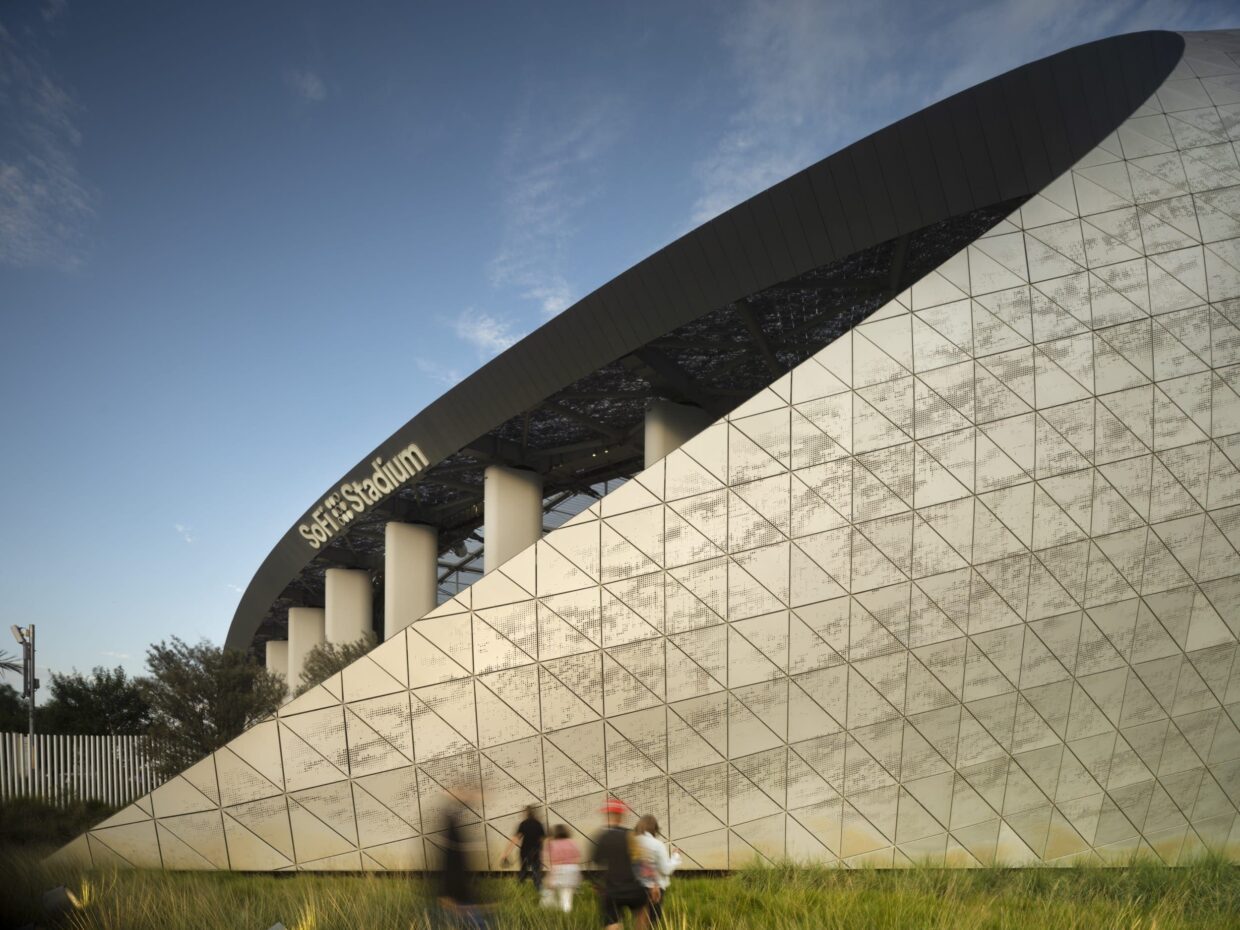

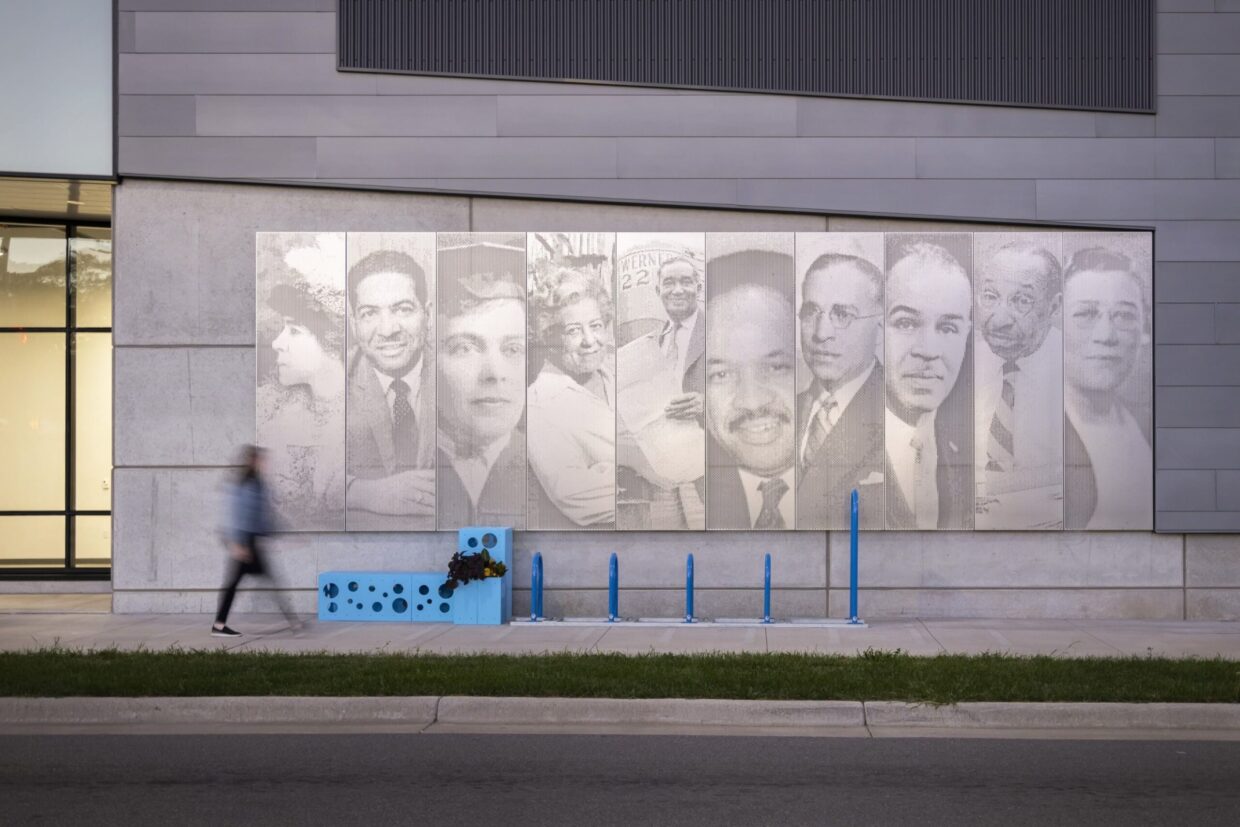

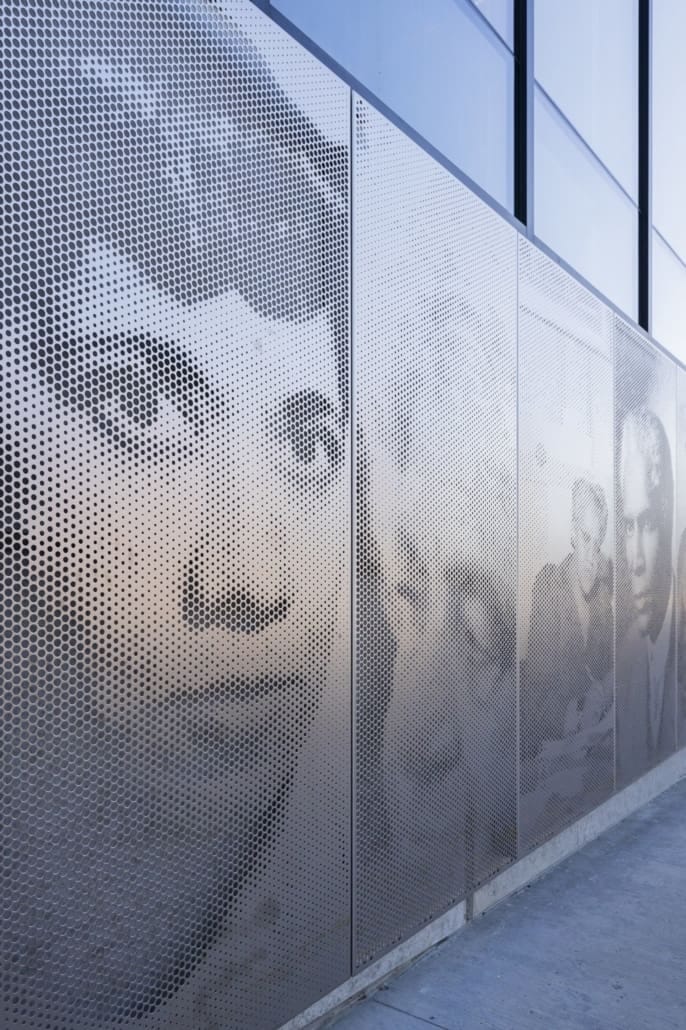

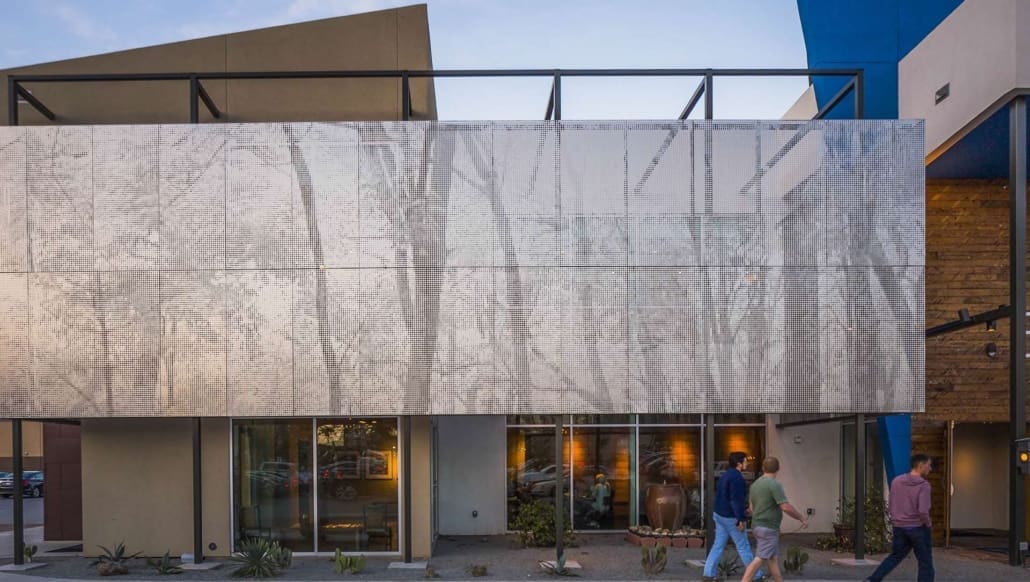

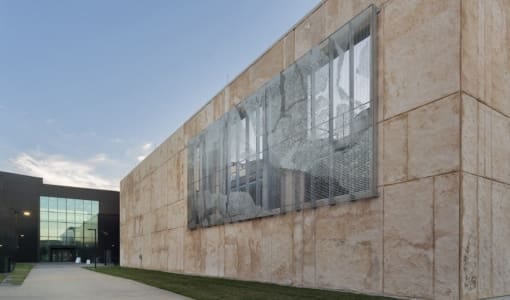

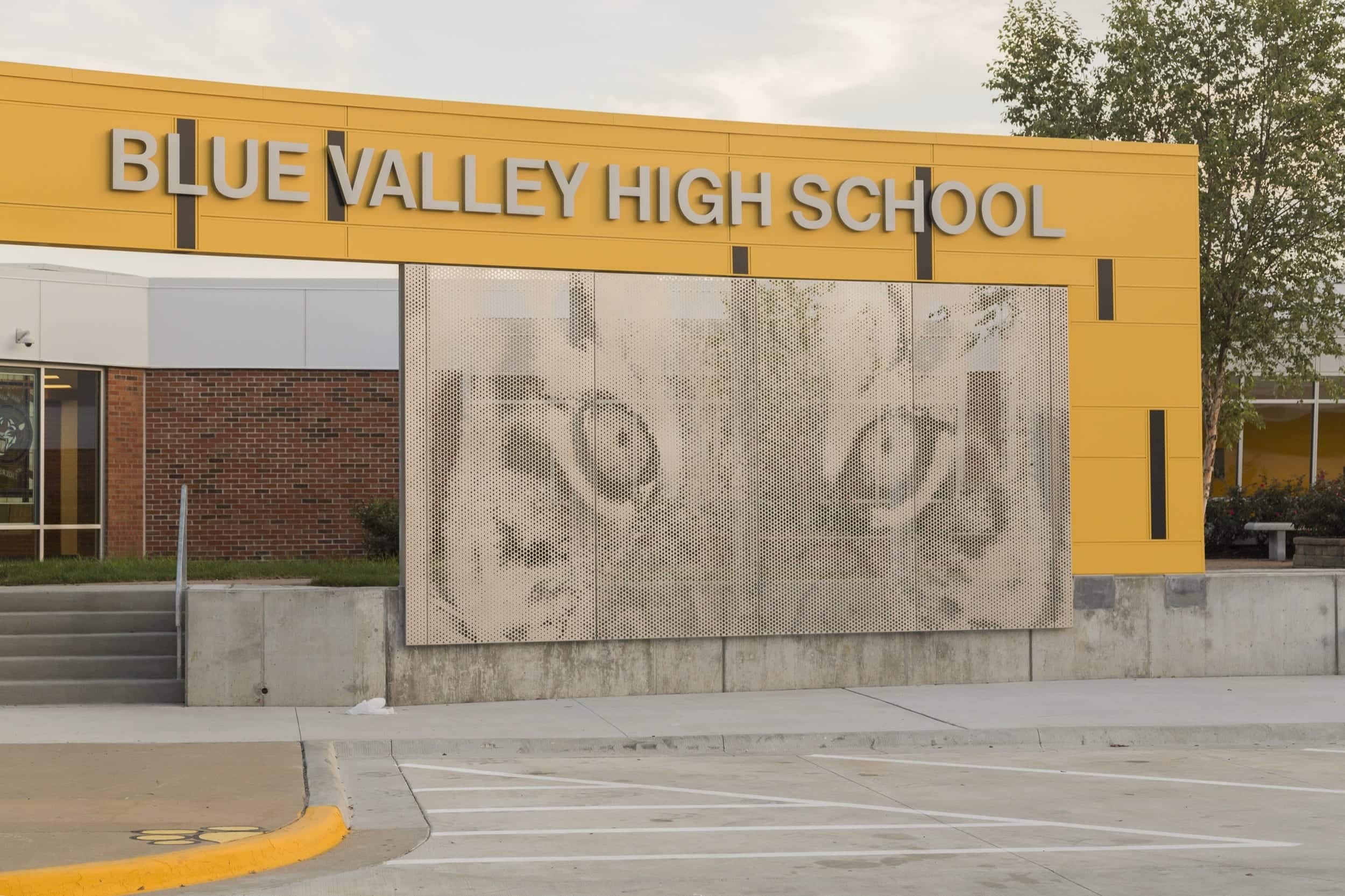

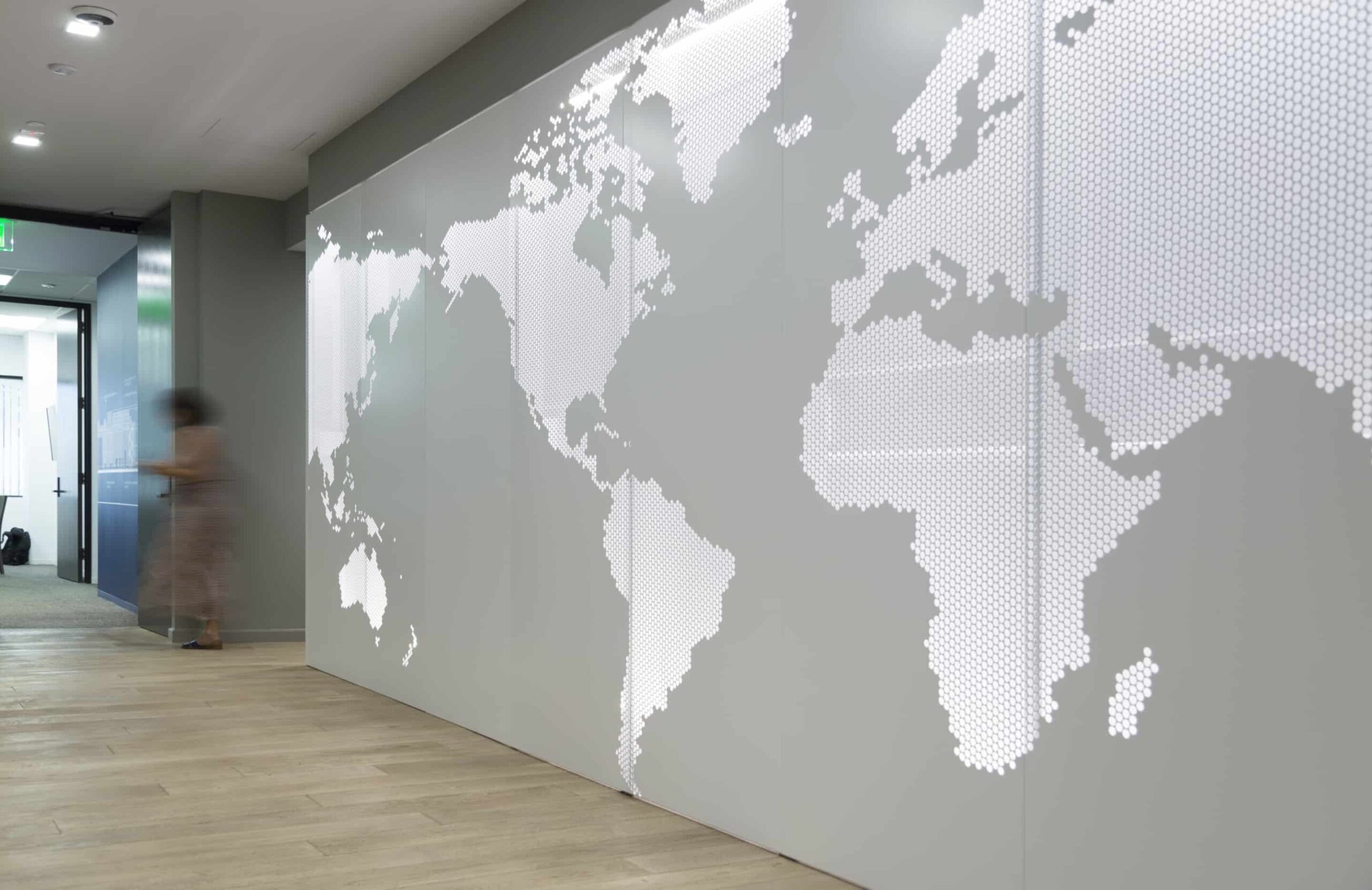

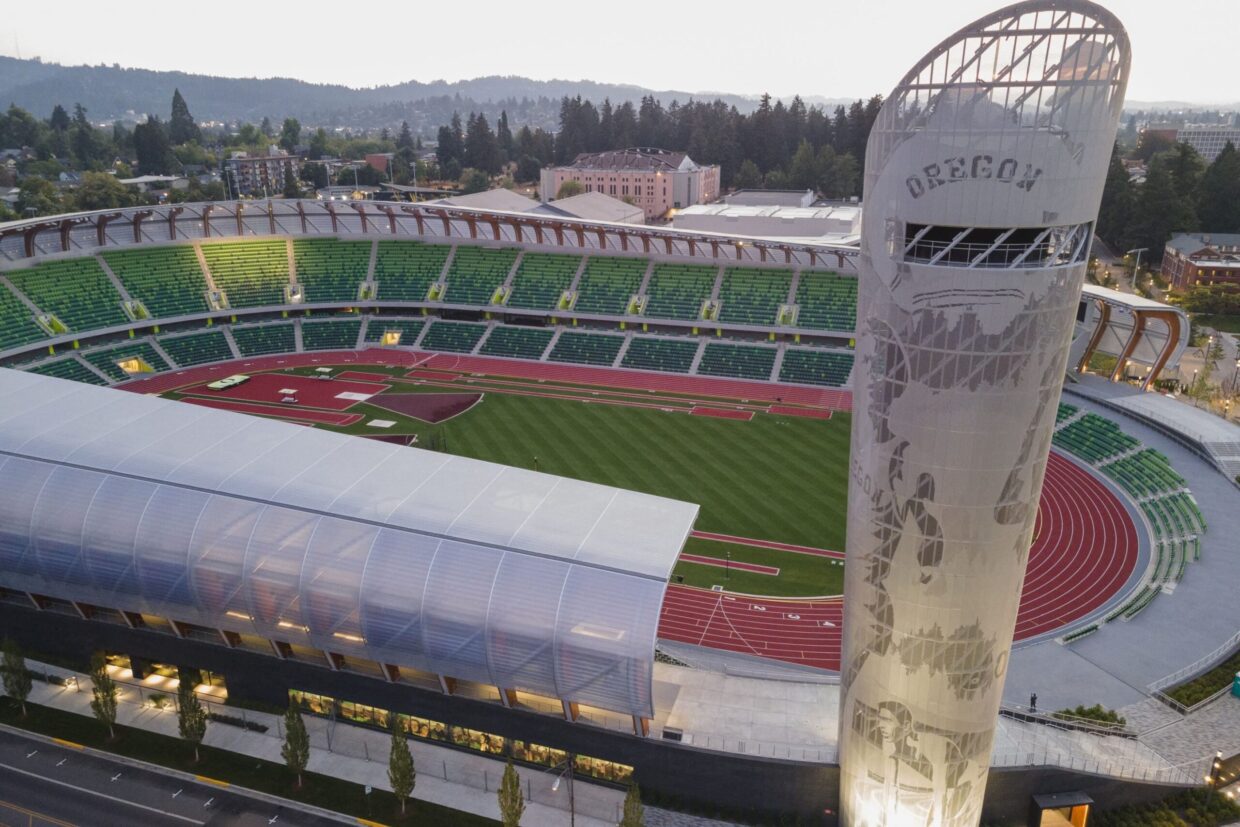

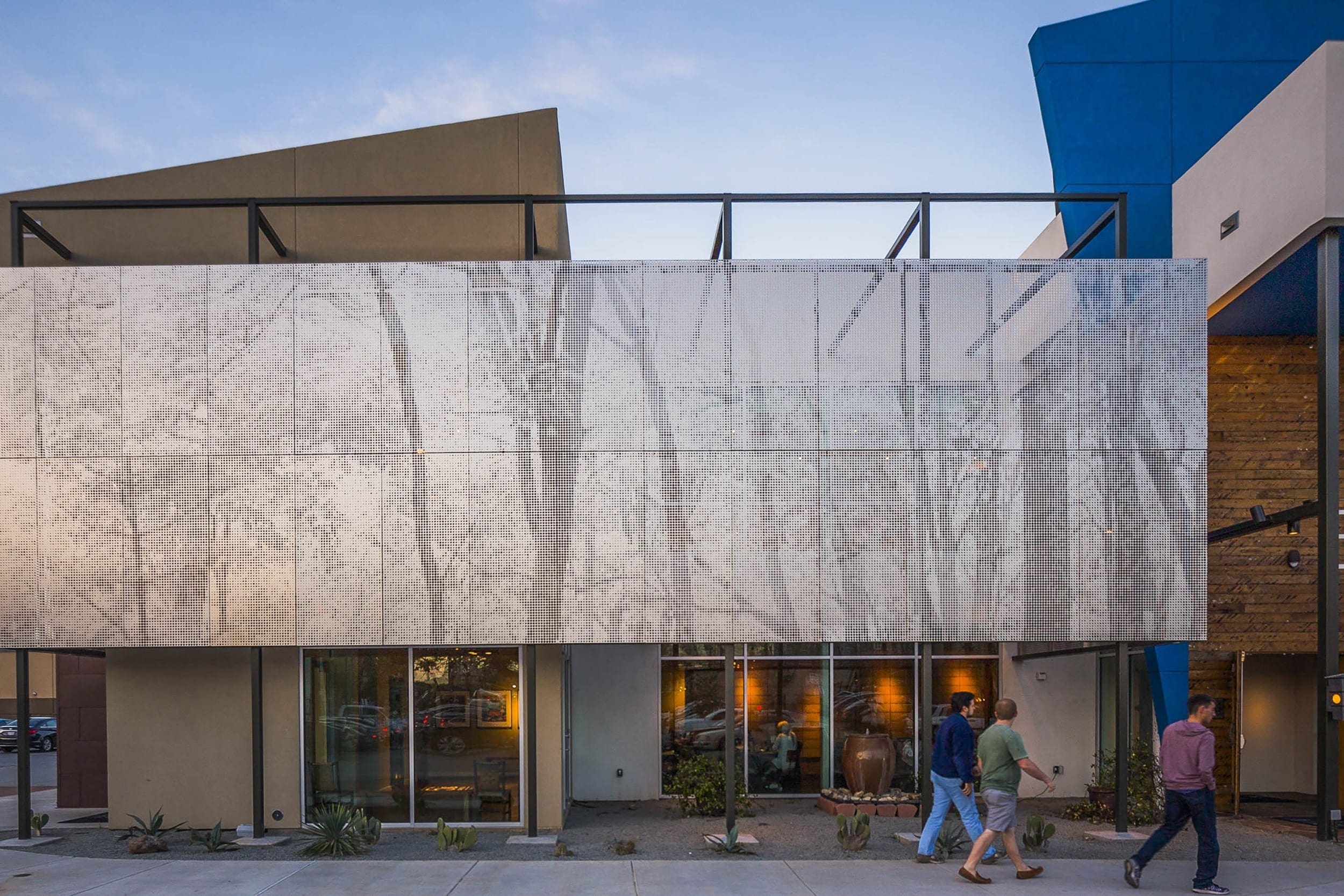

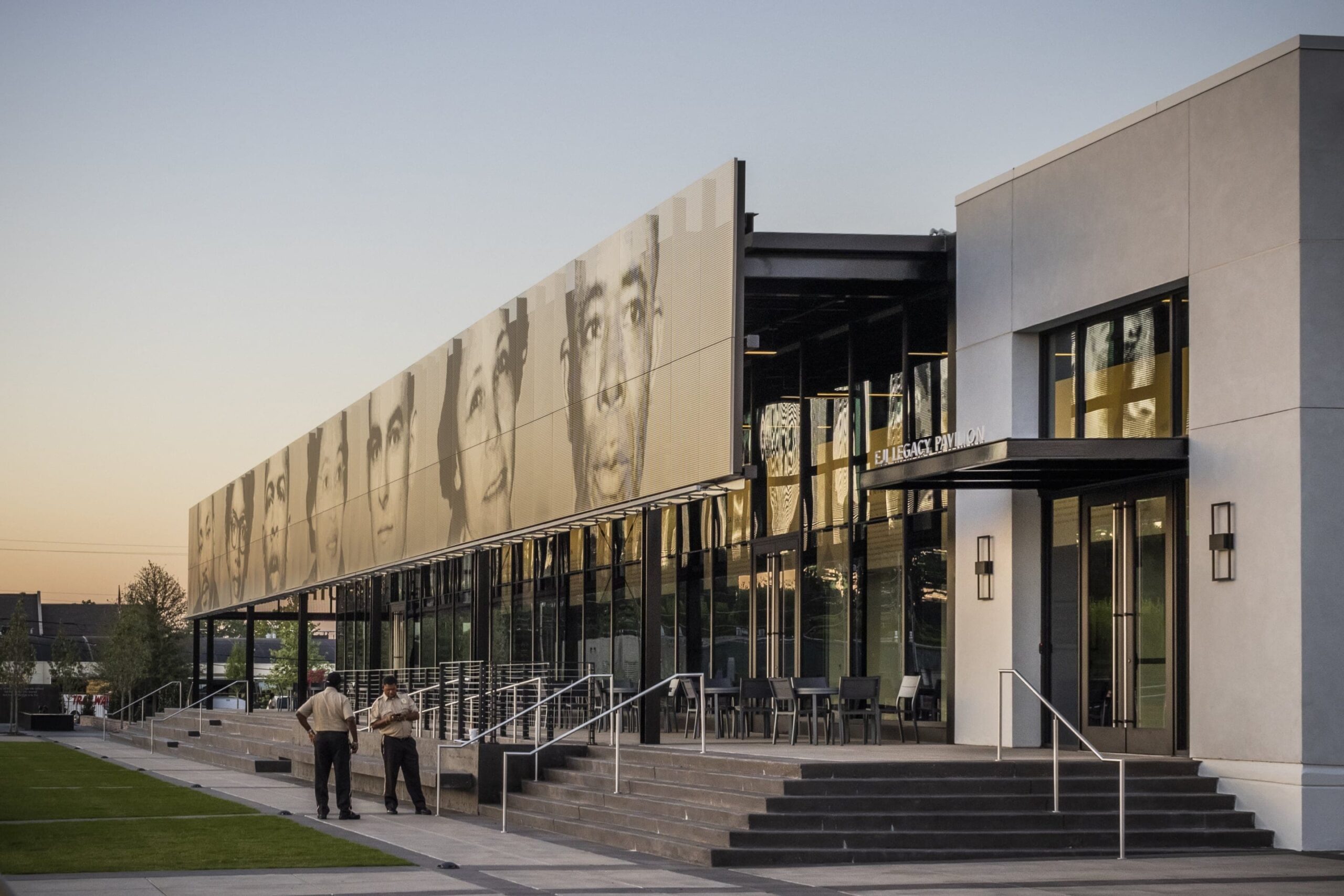

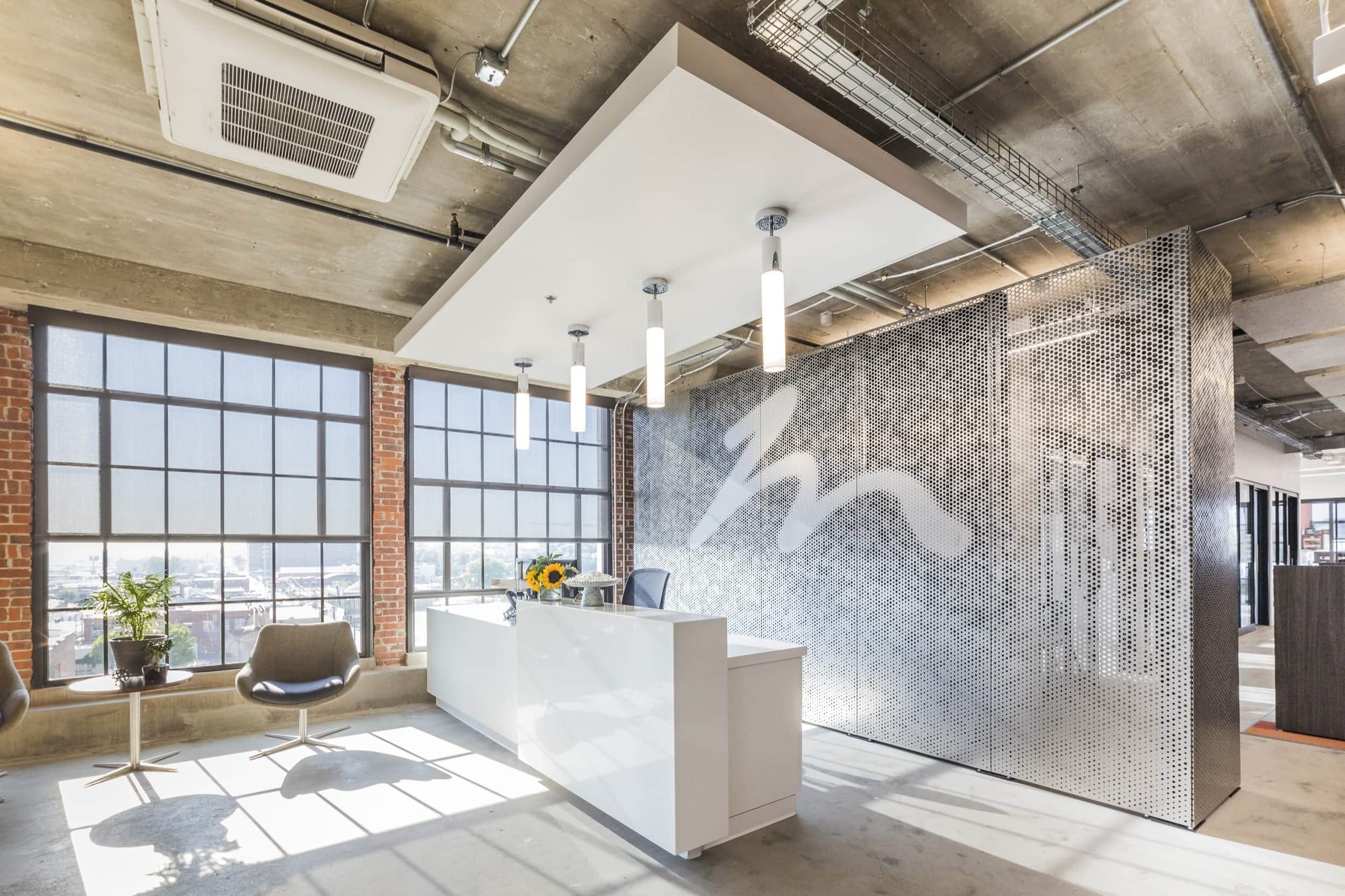

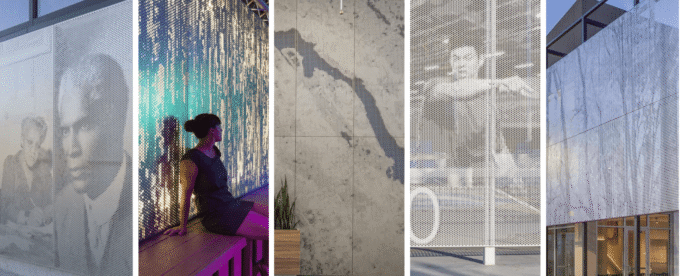

ImageWall is ready for your project, whether that’s a 100 foot facade or an 8 foot partition. Our in-house manufacturing process creates perforated metal panel systems with continuous imagery across planar surfaces at high-precision tolerances.

Hear more about how ImageWall and graphic perforation can be applied from Zahner’s Director of Sales, Eric Steele:

Best in Class

Features

Precision Manufacturing

Take advantage of generations of experience and powerful tools. Every ImageWall is custom made in our Kansas City and Dallas shops in the USA. Our shops are supported by 120 years of experience in metal fabrication and research.

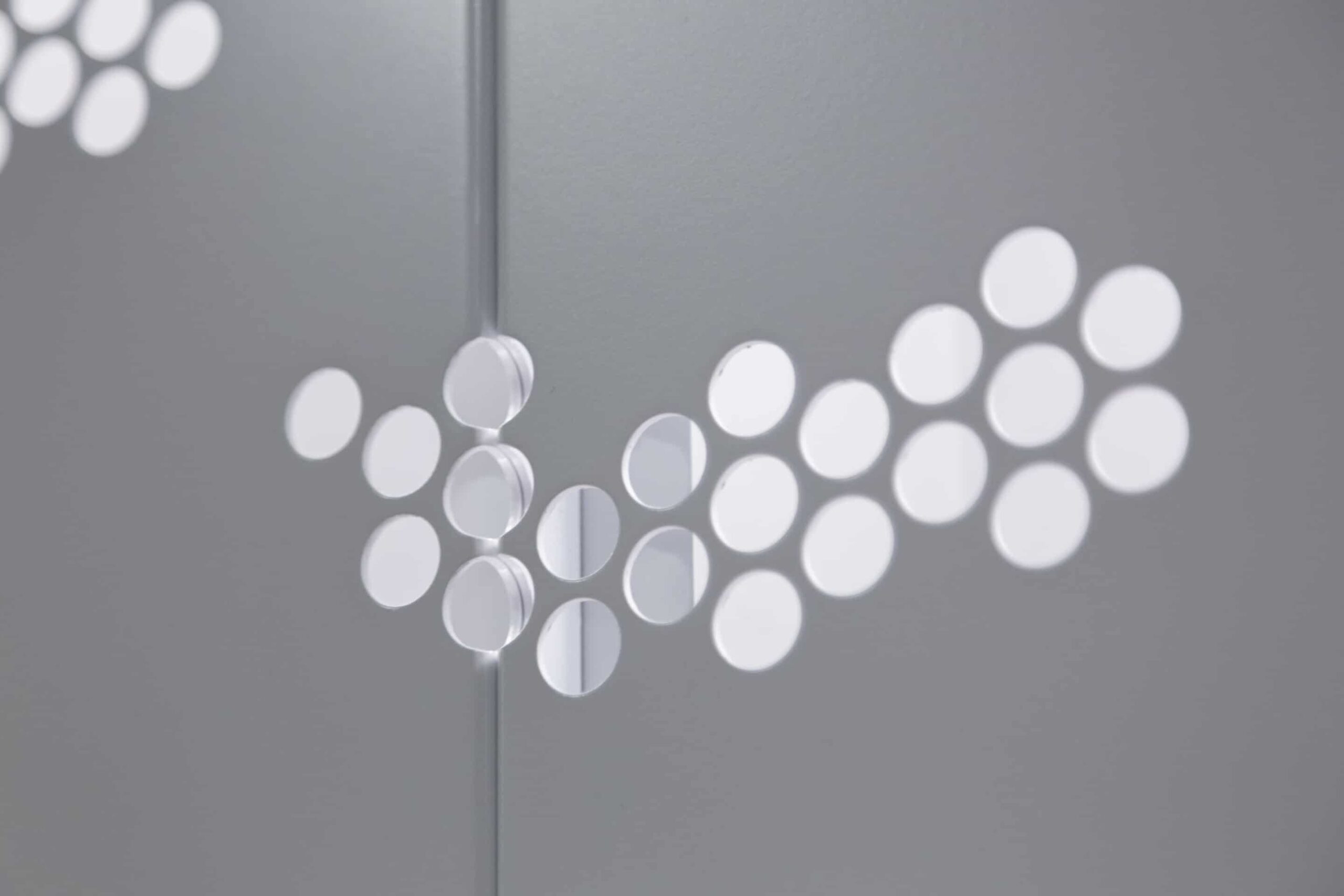

Seamless Transitions

Eliminate panel borders to create a seamless image. We have developed processes to create seamless imagery (Cross-Seam Perf™), by enabling perforations to continue across a folded seam or joint. Similar perforated metal panel systems often leave an unperforated border around each panel, obscuring imagery with a prominent panel grid. Zahner technology and craftsmanship ensure a high-impact display where boundaries and lines become undetectable at a distance.

Simple Install

Install your ImageWall quickly and accurately without specialty tools. ImageWall attachment systems are designed to make accurate installation easy. The systems are developed in collaboration with licensed engineers for structural rigidity yet require no site welding, cutting, or adhesives.

Materials

Finishes

ImageWall is available in the following finishes:

Proprietary Zahner Surfaces

Installation

Standard Configurations

ImageWall is available in four standard configurations:

Drop & Lock™

Drop & Lock systems by Zahner use Inverted Seam technology to enable fast and sealant-free installation of perforated metal panels and other hardware for architectural systems. The systems use a two-part process for installation and include all of the hardware needed to hang the panel system. In additions to ease of install, Drop & Lock panels are also easy to remove and allow maintenance access to the space behind the panels.

Drop & Lock with mullion & anchor

Exploded view of Drop & Lock panels with mullion and anchor.

Exploded view of Drop & Lock panels with mullion and anchor.

Installed view of Drop & Lock panels with mullion and anchor.

Installed view of Drop & Lock panels with mullion and anchor.

Section View of Drop & Lock panels with Mullion & Anchor.

Section View of Drop & Lock panels with Mullion & Anchor.

Drop & Lock with hat channel

Exploded view of Drop & Lock panels with hat channel.

Exploded view of Drop & Lock panels with hat channel.

Installed view of Drop & Lock panels with hat channel.

Installed view of Drop & Lock panels with hat channel.

Section view of Drop & Lock panels with Hat Channel.

Section view of Drop & Lock panels with Hat Channel.

Double Return

ImageWall Double Return is the most versatile perforated metal panel system. Panels are attached directly to the steel structures, or any other substructures designed and provided. With the Double Return system, the Designer will have the option to create the panel mount either horizontally or vertically.

There are two different variations of the Double Return system:

Long Span System

Long Span Panels have a broader flange to provide strength and rigidity to allow the panels to be fastened on the short edge only. Depending on the available substructure, panels can be installed in either vertical or horizontal orientation.

Short Span System

Short Span Panels have a thinner profile as the panels are fastened on the long edge. Depending on the available substructure, panels can be installed in either vertical or horizontal orientation. Double Return Short Span system is the most economical ImageWall option.

ImageWall panel with Double Return.

ImageWall panel with Double Return.

Contact Us

Get Started with ImageWall Today

Whether you’re an architect, designer or fabricator, Zahner ImageWall custom perforated metal panels help you deliver high impact design solutions on a smaller budget. To create your own design start a conversation with one of our project assistants.
