The necessity of security is so intertwined in the history of the built environment that it may go back back to the roots of why we want to build in the first place. From the age-old castle typology to the earliest hill-forts, architecture has served to secure and protect since its humble beginnings.

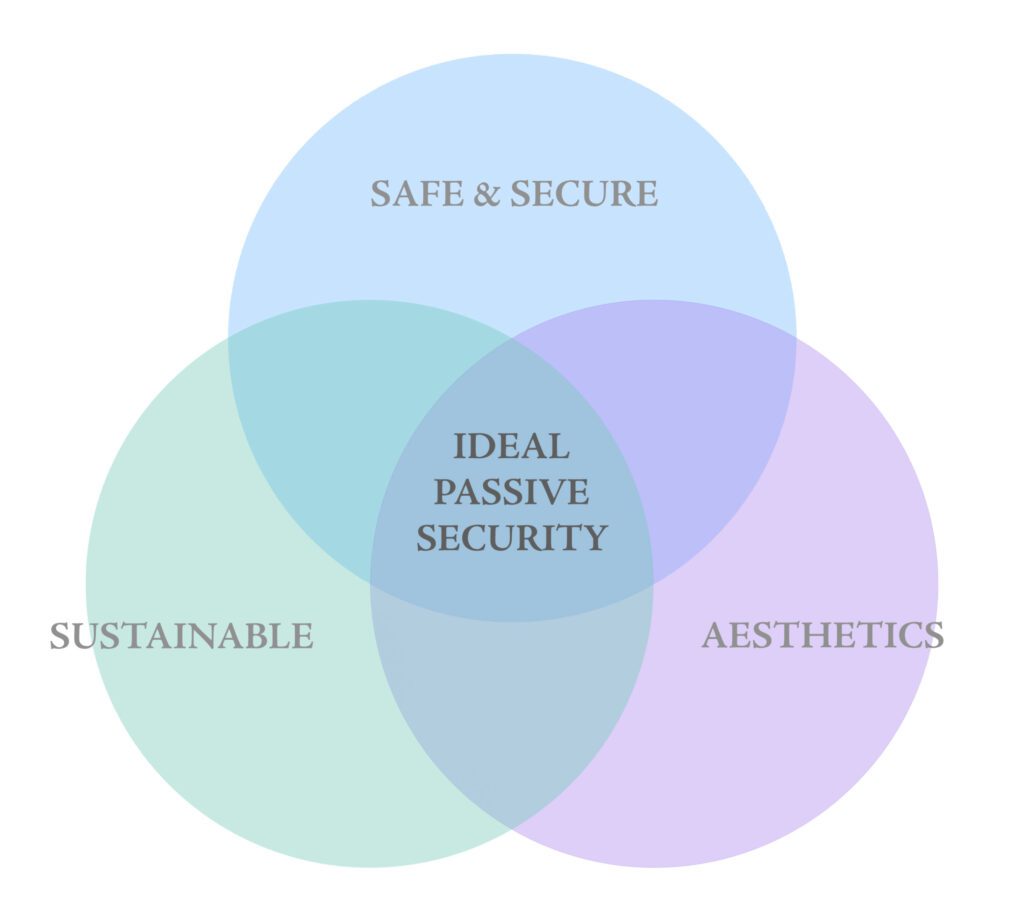

If you're designing a building for security, it's important to think about how your design's defenses can be met sustainably — and to also consider how these measures can be achieved without antagonizing its inhabitants.
These are the challenges which passive security aims to solve: quietly protecting people — and without the ongoing maintenance and energy costs that traditional security entails.
Passive Security vs. Active Security
Passive security in architecture can be broadly defined as “a design feature which deters threats while remaining largely invisible to its users.” Passive security is also predominantly productless — so rather than existing as products to be specified, passive security is about using good design to add a layer of privacy, security, and protection.
Active security is more readily visible and more in line with what most people think of as traditional security. Examples include spiked gates, high fences, barbed wire, metal detectors, security cameras, and armed security patrols. These security options all project an outward signal of aggression and many of these will require ongoing costs to maintain.
This tendency for active security to intimidate is the impetus for the passive security movement. Active security may scare or intimidate its inhabitants and visitors. Studies have documented that when innocent people see instruments which are intended to protect, they feel less safe and have heightened fear reactions.
“If it’s a K–8 school, and you’ve put a metal detector at the front door, what does that say? Security should be more integrated, more discreet, and architects should first try to think of passive ways to incorporate security requirements.”James Timeberlake FAIA quoted in Architect Magazine.
Passive security is about adding an additional purpose by utilizing aesthetics. James Timberlake describes how disguising security can benefit how we interact with buildings in an interview with Architect Magazine's Elizabeth Dickinson on designing for security:
Keeping security discreet is something more architects and landscape architects should make a priority, according to James Timberlake, FAIA, founding partner of KieranTimberlake. “In general, architects need to challenge the theory that overt visual deterrents, which are the most aggressive features in the landscape, are the answer,” Timberlake says.
“If it’s a K–8 school, and you’ve put a metal detector at the front door, what does that say? Security should be more integrated, more discreet, and architects should first try to think of passive ways to incorporate security requirements.”
What does passive security have to do with Zahner?
As a company, we've taken great efforts to be stewards of both sustainability and safety for our employees as well as for communities across the globe. We believe that these measures go hand in hand with improving the aesthetics of security. To this end, Zahner provides architecture firms with thoughtfully executed engineered and fabricated solutions for security.
In recent years, our team at Zahner has entered into a number of projects with creative security measures, and we think these are worth sharing with the architectural community.
The case studies below include security measures as part of our scope. (And we'll continue to update our latest examples of passive security here.) Here are three examples of designs with passive security measures, manufactured by Zahner:
1. Protect buildings with landscape art
If you've ever visited a bank in the suburbs, you've experienced passive security in their parking design. Banks utilize heavy curbs and chamfered one-way driveways to deter in-and-out getaways. This concept is taken further when you look at high profile assets such as embassies and government buildings which employ larger blockades and bollards to prevent vehicle-borne threats.
However, these types of barricades are often ugly and their purpose is self-evident. One way to reduce the visual impact of a bollard is by treating the object as an art form.
Echo Dynamics is a public work designed by Mikyoung Kim. The artwork serves as a passive security measure to prevent large trucks from approaching the Courthouse.
An example of this kind of artistic protective barrier can be seen on a project completed by Zahner at the Federal Courthouse in Little Rock, Arkansas. The building's entrance features a work of public artwork, Echo Dynamics, by Mikyoung Kim. The artwork uses stainless steel and aluminum forms which disguise its secondary purpose: that of preventing a vehicle-based threat.
2. Secondary building annexes add security

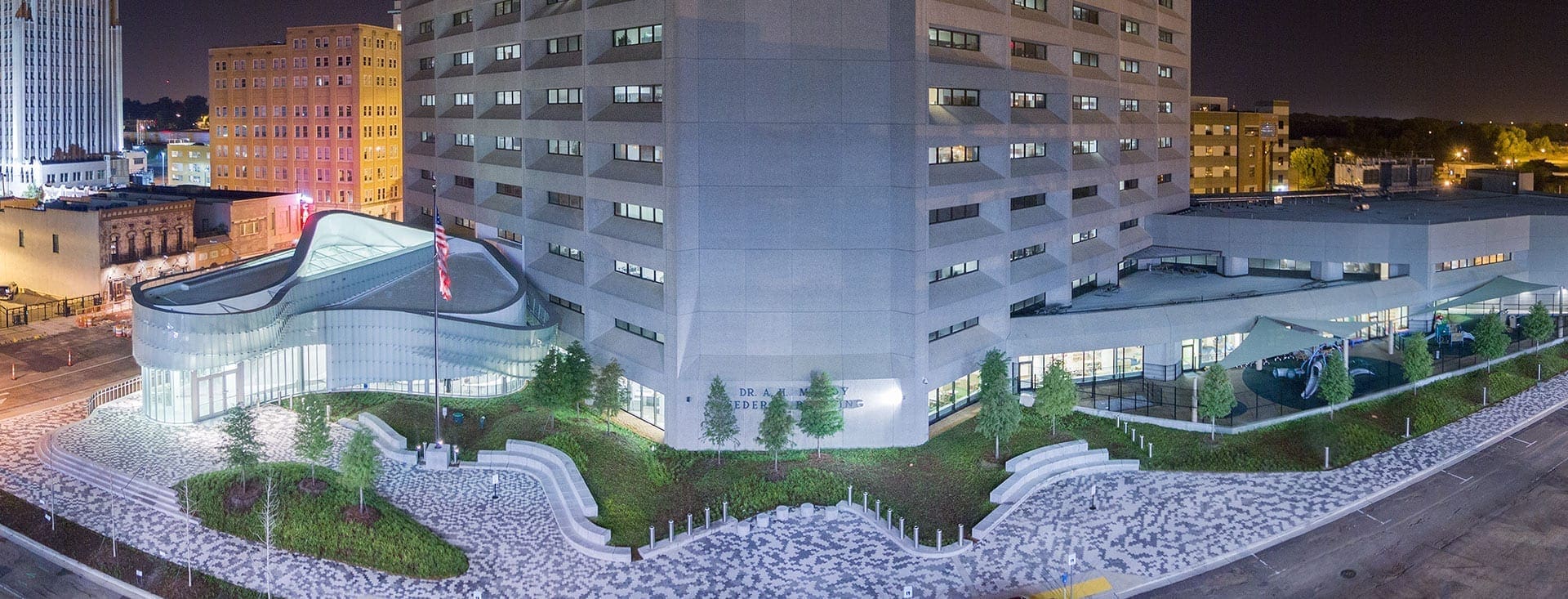

Another example of this passive security in architecture is the use of secondary building structures. These are useful for retrofitting an existing building for security. This enables active security screenings to take place outside in the building annex, preventing would-be attackers from entering the primary building. This approach was used on the Federal Building in Jackson, Mississippi designed by Schwartz/Silver.

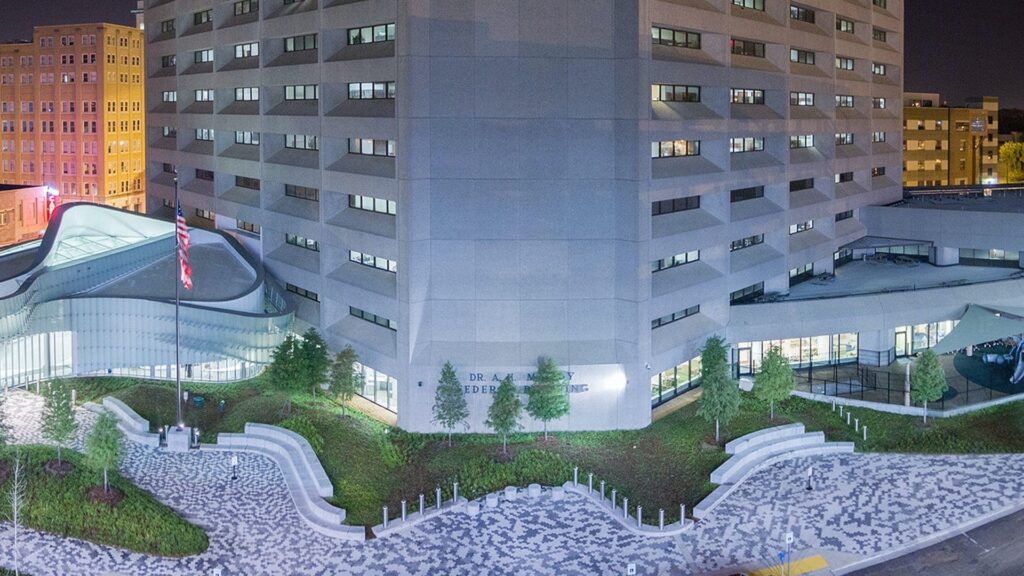

McCoy Federal Building
This upgrade to the McCoy Federal Building includes infrastructure additions to the main building and an ancillary building which serves as a security entrance to the main structure. Designed by Schwartz/Silver architects, Zahner provided the glass facade design along with its structural support system.In 2010, the General Services Administration (GSA) commissioned Schwartz/Silver to upgrade the McCoy Federal Building Courthouse and GSA Facilities in Jackson, Mississippi. Zahner was brought on to construct the building envelope for the structure, under design assist contract. Zahner provided engineering, fabrication, and installation of the curving glass facade in addition to the various architectural metal surfaces.
3. Artful perforation: disguise barriers as art
Custom perforated metal with patterns and imagery can provide a large number of invisible security details. When a wall or divider is made artistically, people are less likely to notice that the barrier is being used to prevent access and more likely to think that it serves a primary artistic function.

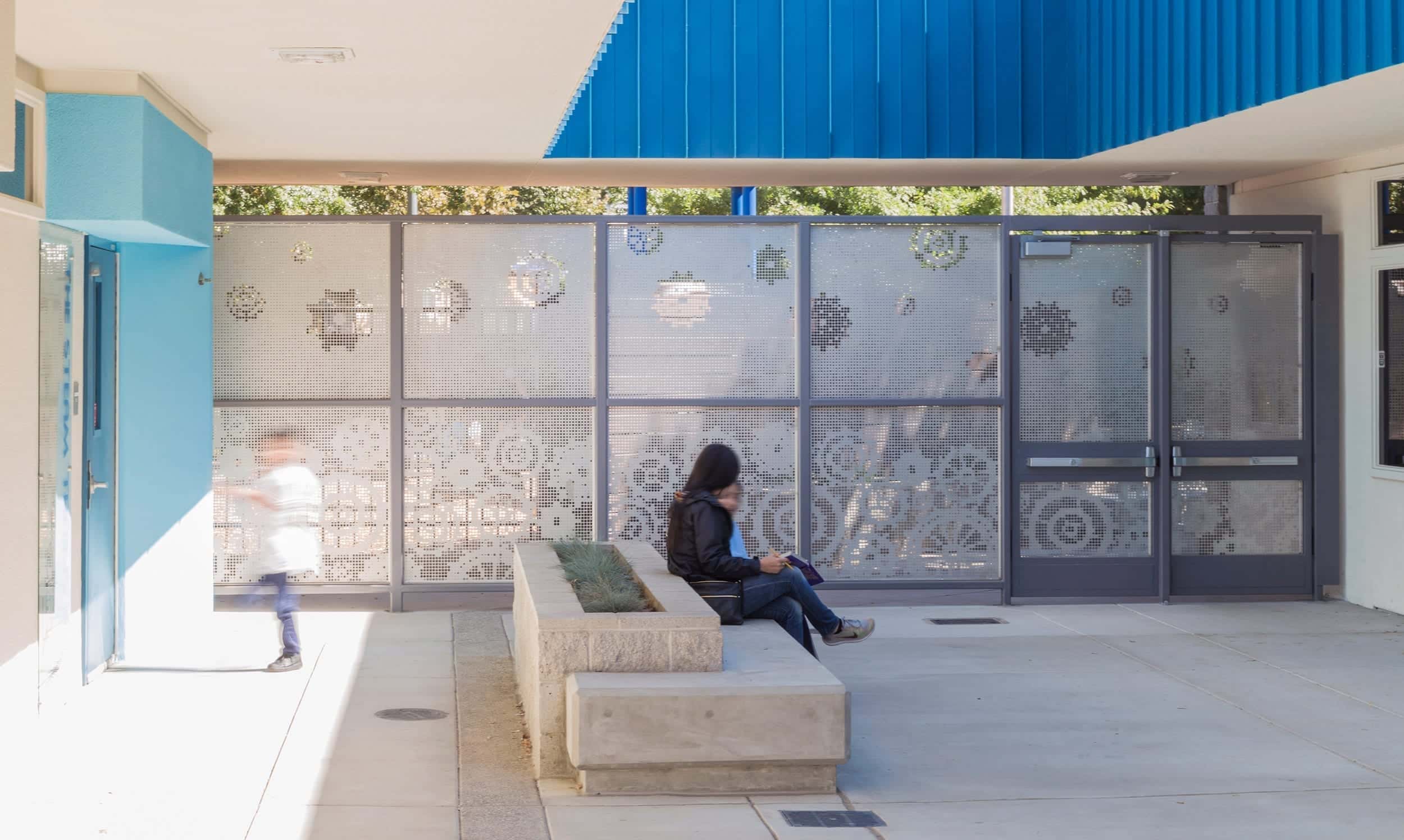

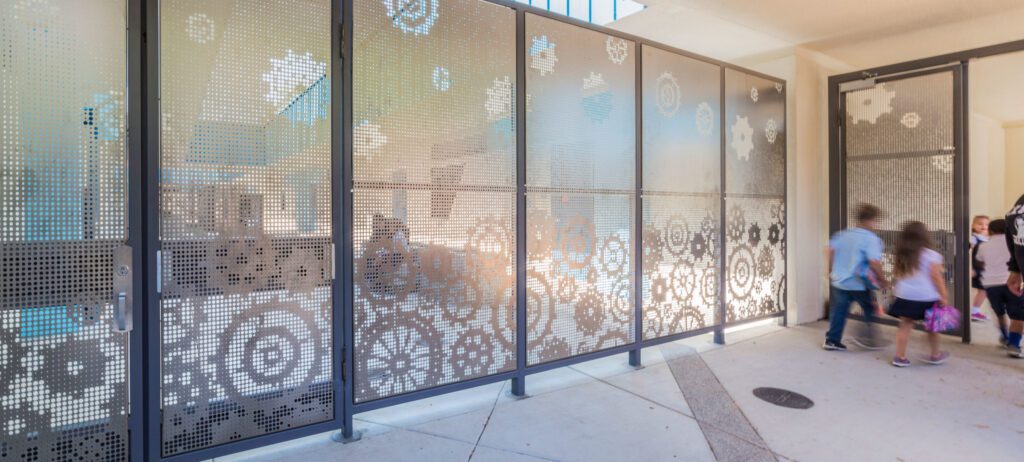

Zahner worked on Washington Elementary for the Sacramento School District which included a number of barrier screen walls, protecting young students from strange persons either entering or seeing into the interior spaces.
What is intriguing about the design, is that from the students perspective, they have a beautiful view of artistic "gear" imagery made by perforating images into metal. In addition, the perforated metal was designed so that, from up high, the perforations are smaller and more dense and thus harder for prying eyes to see into the school. From down low at the kids perspective, these perforations are larger and more open, so that small children can see into the spaces clearly.
This is a great example of passive security: invisible to all, and an aesthetically pleasant experience for those it protects.

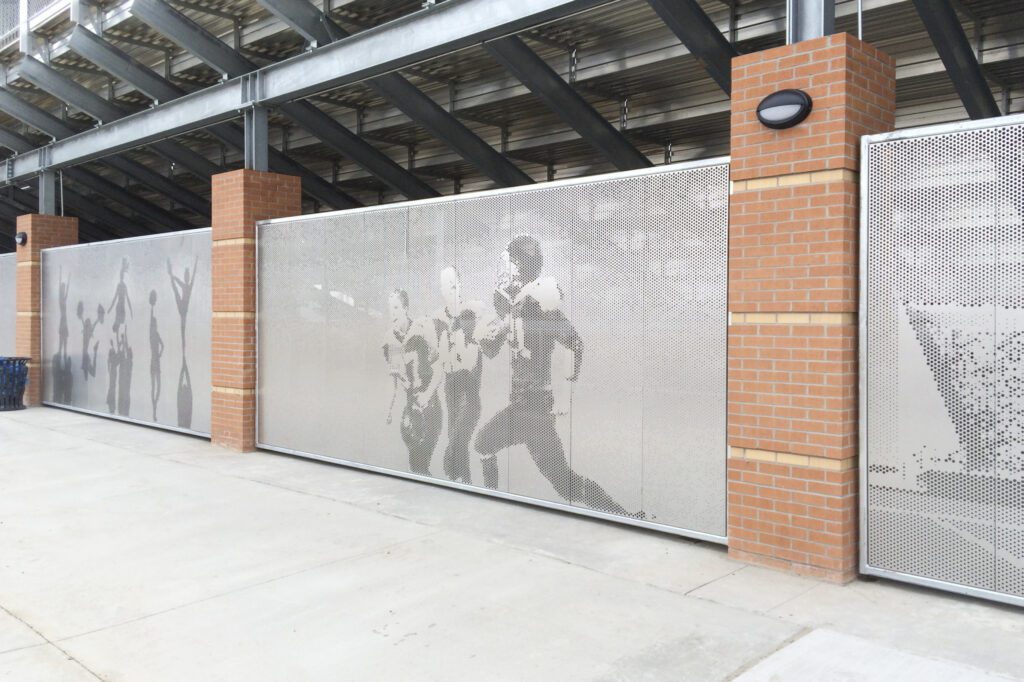

Another example of how perforated metal can be used as passive security is the Okie Blanchard Sports Complex, which includes a series of sports motifs on a gate and fence system. This serves to prevent access to the space beneath the High School stadium's bleacher seating (pictured above).
While a simple wall might have worked, its dull aesthetic would have drawn attention to its purpose of preventing access to the seating. By using perforated metal with custom patterns or designs, the designers were able to achieve transparency and safety for the stadium.
The Future of Passive Security
There are many types of buildings which have requirements that can be met with passive security design. We hope to see these practices move beyond government buildings and into buildings for education, hospitality, sports, and performance. Applying creative thinking to these design challenges will result in something which is both pleasant in its appearance and functional in its safety and security.
Passive security design has a bright future. It enables architects and builders to play a role in making our world safer without sacrificing good aesthetics, and more importantly, the feeling of safety.
