Plate Panel
Facade System
Panel Attachment System
The Plate Panel System by Zahner offers a large-panel option that mitigates oil-canning and improves material-yield.

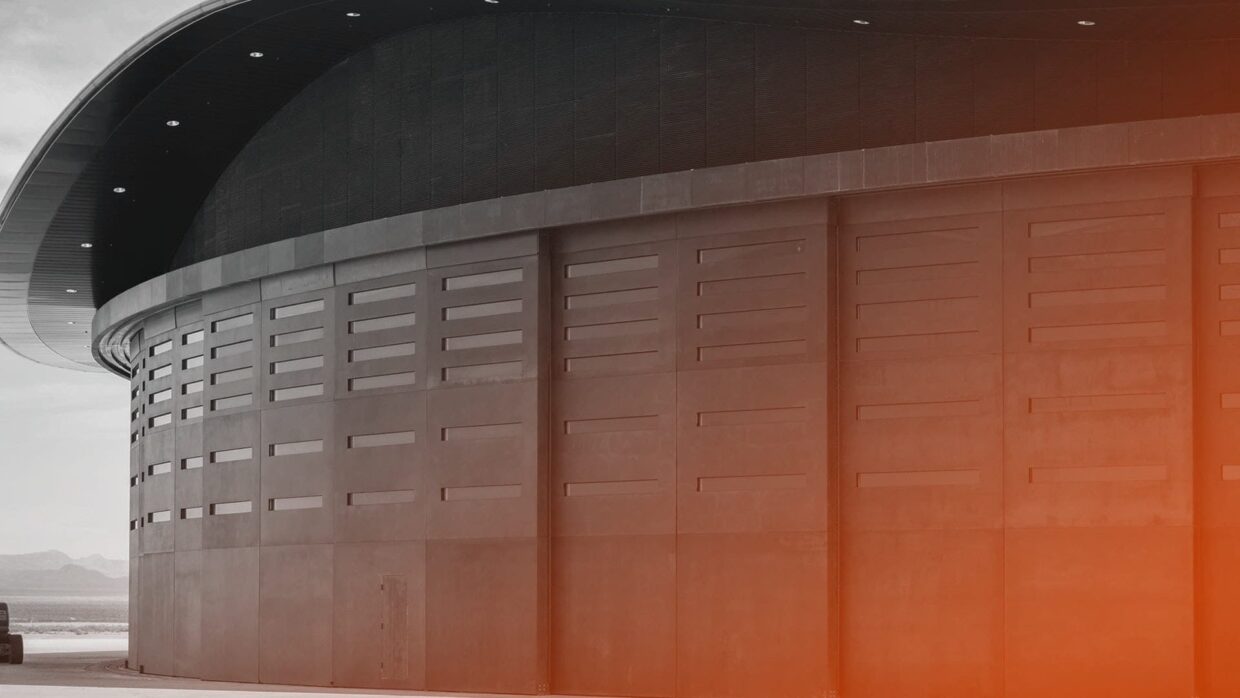

New Mexico
Plate Panel
Details
36 Inch
- Panel Height, in : 35.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 11
- Solanum Steel : 16
- Oscura Blackened Steel : 13
- Spectura Steel : 13
- Dirty Penny Copper : 13
- Star Blue Copper : 13
- Baroque Zinc : 11
- Hunter Zinc : 11
- Roano Zinc : 11
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
54 Inch
- Panel Height, in : 53.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 16
- Solanum Steel : 24
- Oscura Blackened Steel : 19
- Spectura Steel : 19
- Dirty Penny Copper : 19
- Star Blue Copper : 19
- Baroque Zinc : 16
- Hunter Zinc : 16
- Roano Zinc : 16
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
90 Inch
- Panel Height, in : 89.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 26
- Solanum Steel : 39
- Oscura Blackened Steel : 32
- Spectura Steel : 32
- Dirty Penny Copper : 32
- Star Blue Copper : 32
- Baroque Zinc : 27
- Hunter Zinc : 27
- Roano Zinc : 27
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
108 Inch
- Panel Height, in : 107.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 32
- Solanum Steel : 47
- Oscura Blackened Steel : 38
- Spectura Steel : 38
- Dirty Penny Copper : 38
- Star Blue Copper : 38
- Baroque Zinc : 32
- Hunter Zinc : 32
- Roano Zinc : 32
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
About the Plate Panel System
Plate Panel systems developed by Zahner provide designers with a customizable facade system that can utilize almost any finish. Various aesthetics are achievable with this system, as it allows for a combination of varying panel sizes, orientations, and edge conditions that all have similar fabrication and installation techniques.

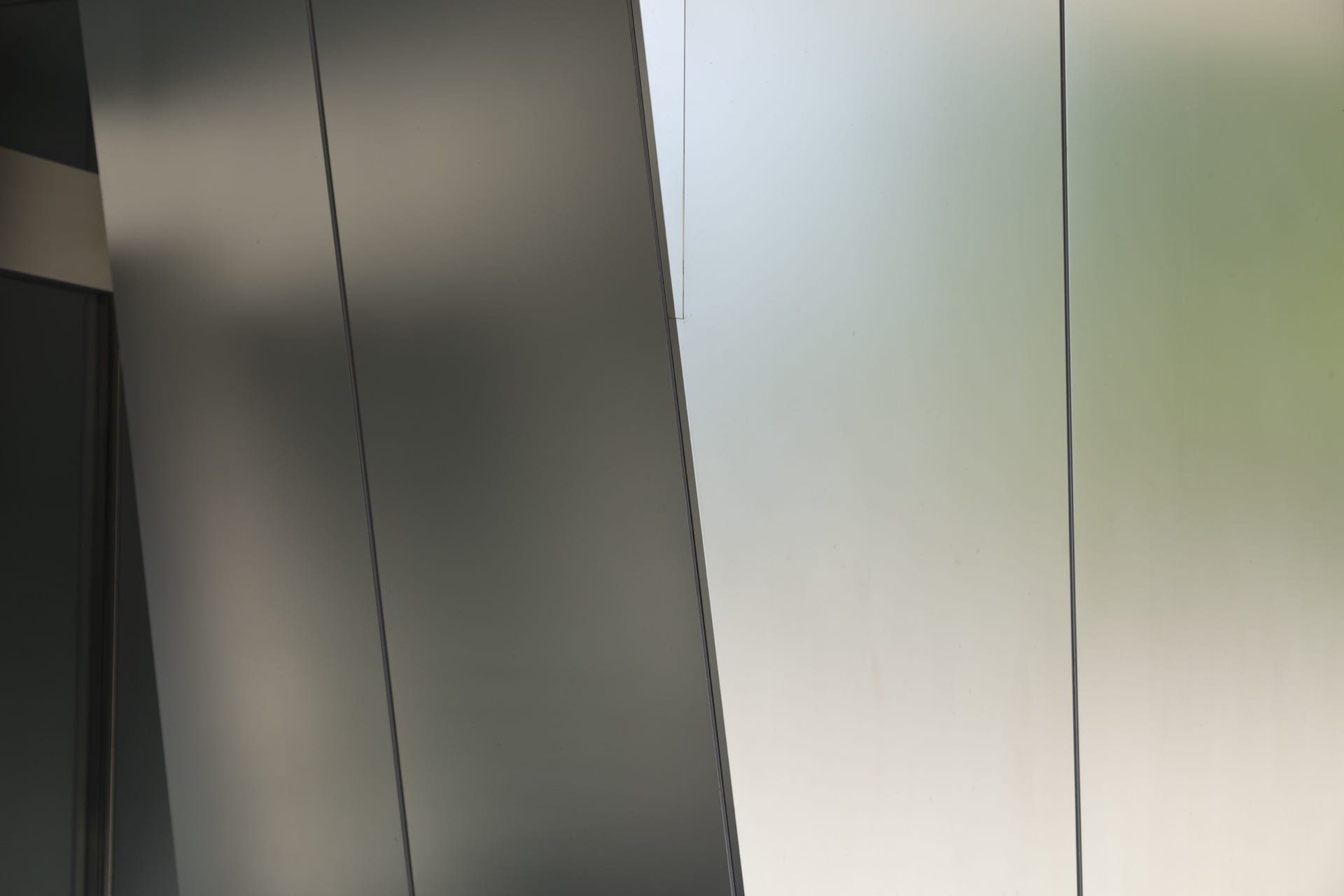

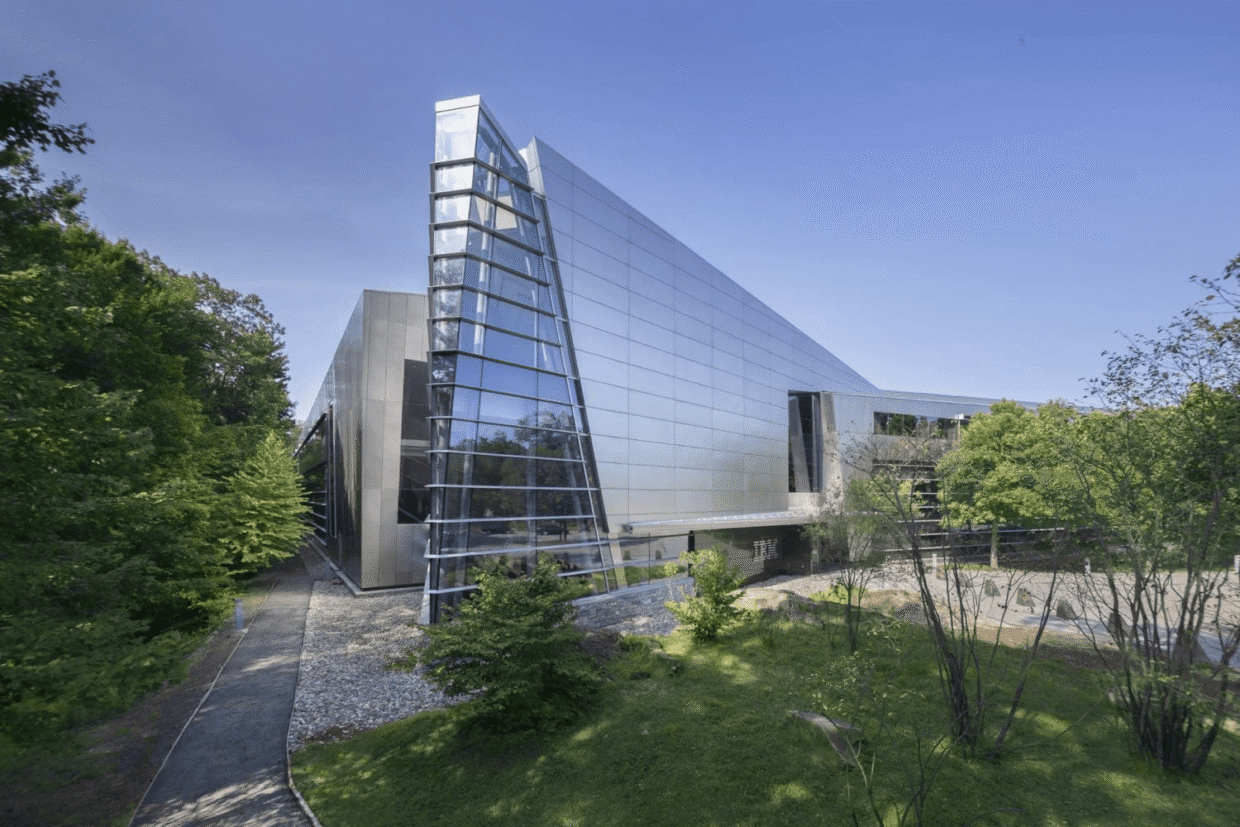

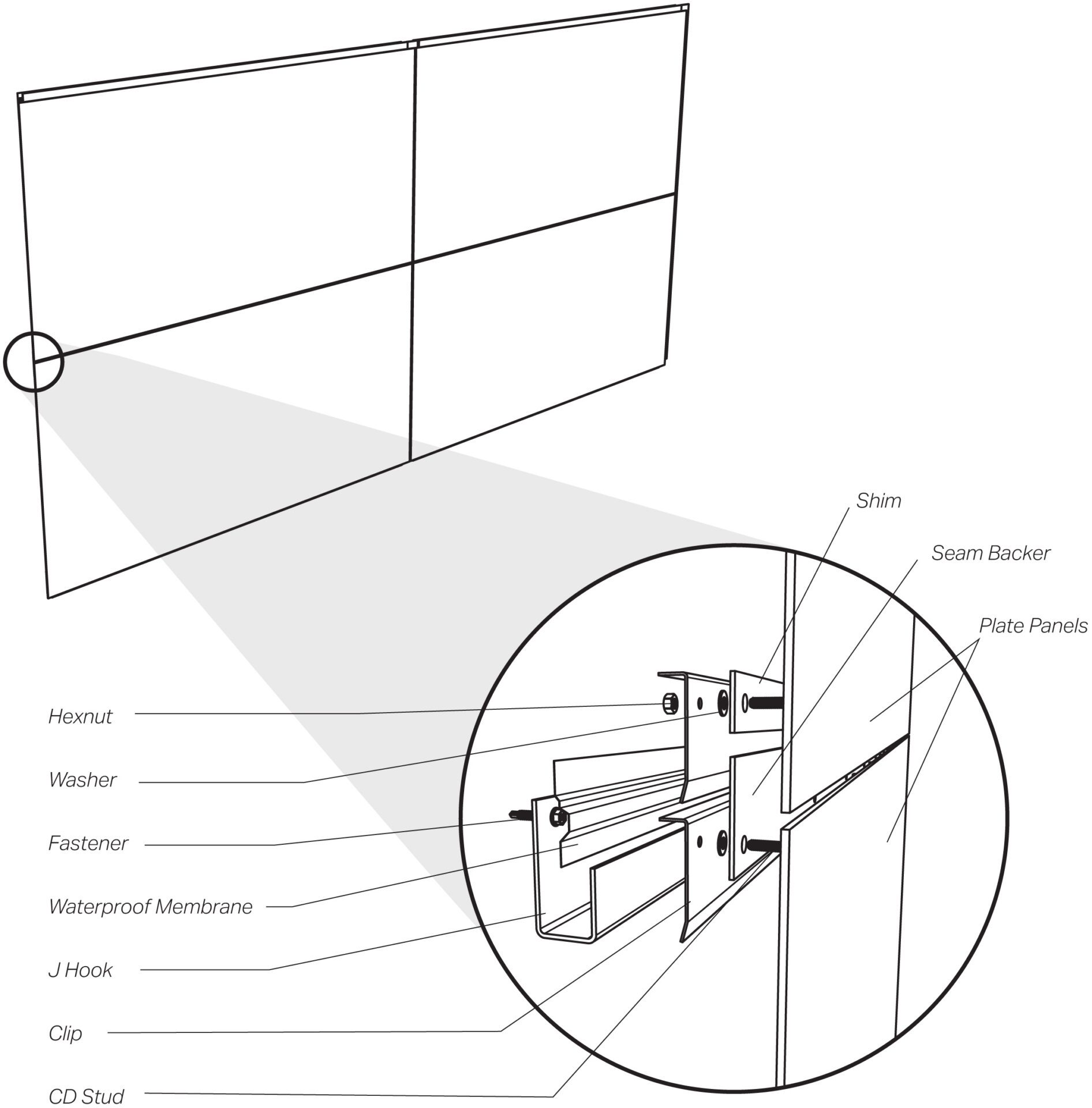

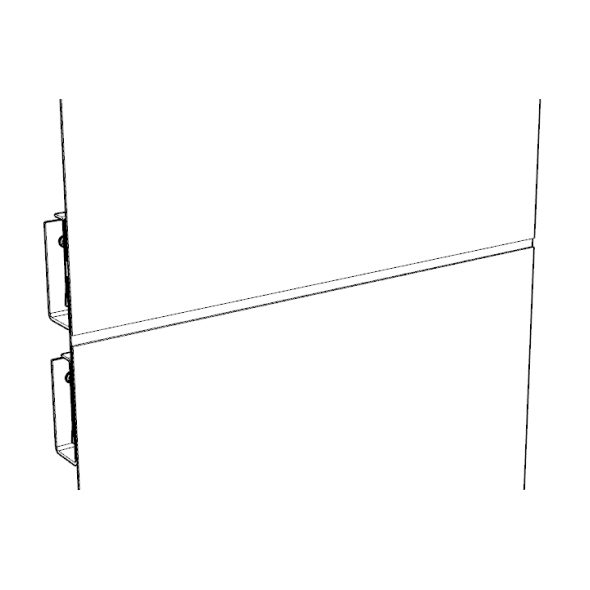

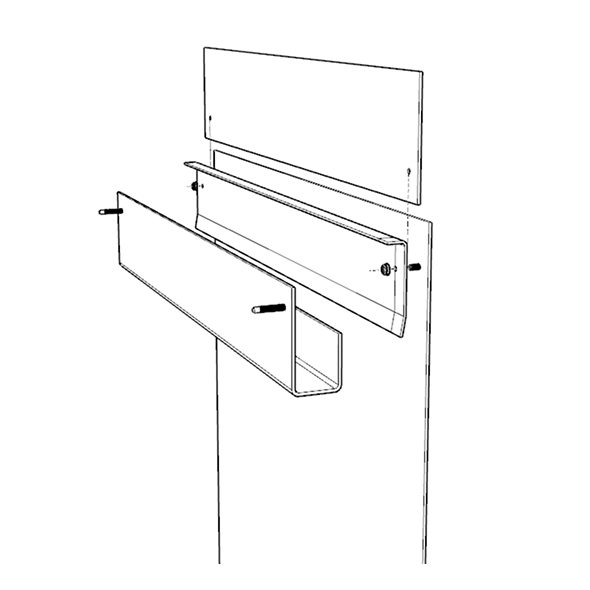

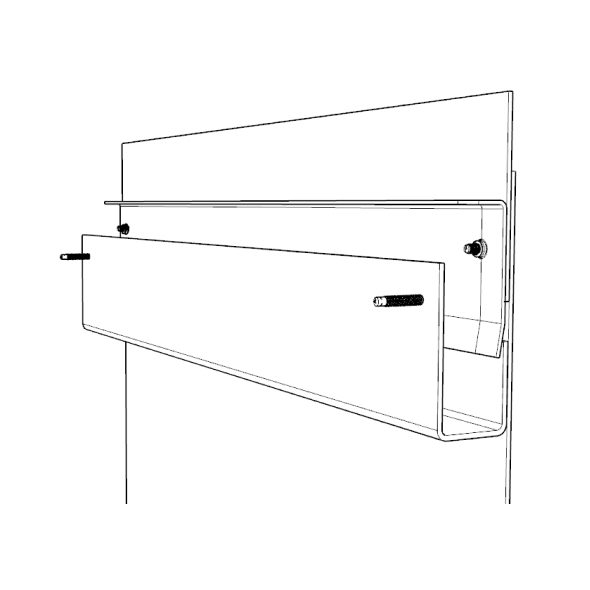

Our Plate Panel system is composed of metal panels in plate (typically .120”+) thicknesses with hardware welded to the backside that engages with Z-girt hardware. Adjustable Z-girts can allow for tolerance in the substrate, so the final installation is smooth and continuous. The joints can include backing hardware to close the joints or can be designed with open joints to allow airflow.
Great for any vertical wall application, Zahner’s sales team can support your efforts. We’ll help your team choose the best material, finish, and panel size for your project’s design and budget.
Benefits
| Lower Engineering Effort | Familiar Zahner detailing saving cost |
| Large Panels | Great option for large panels; fewer joints |

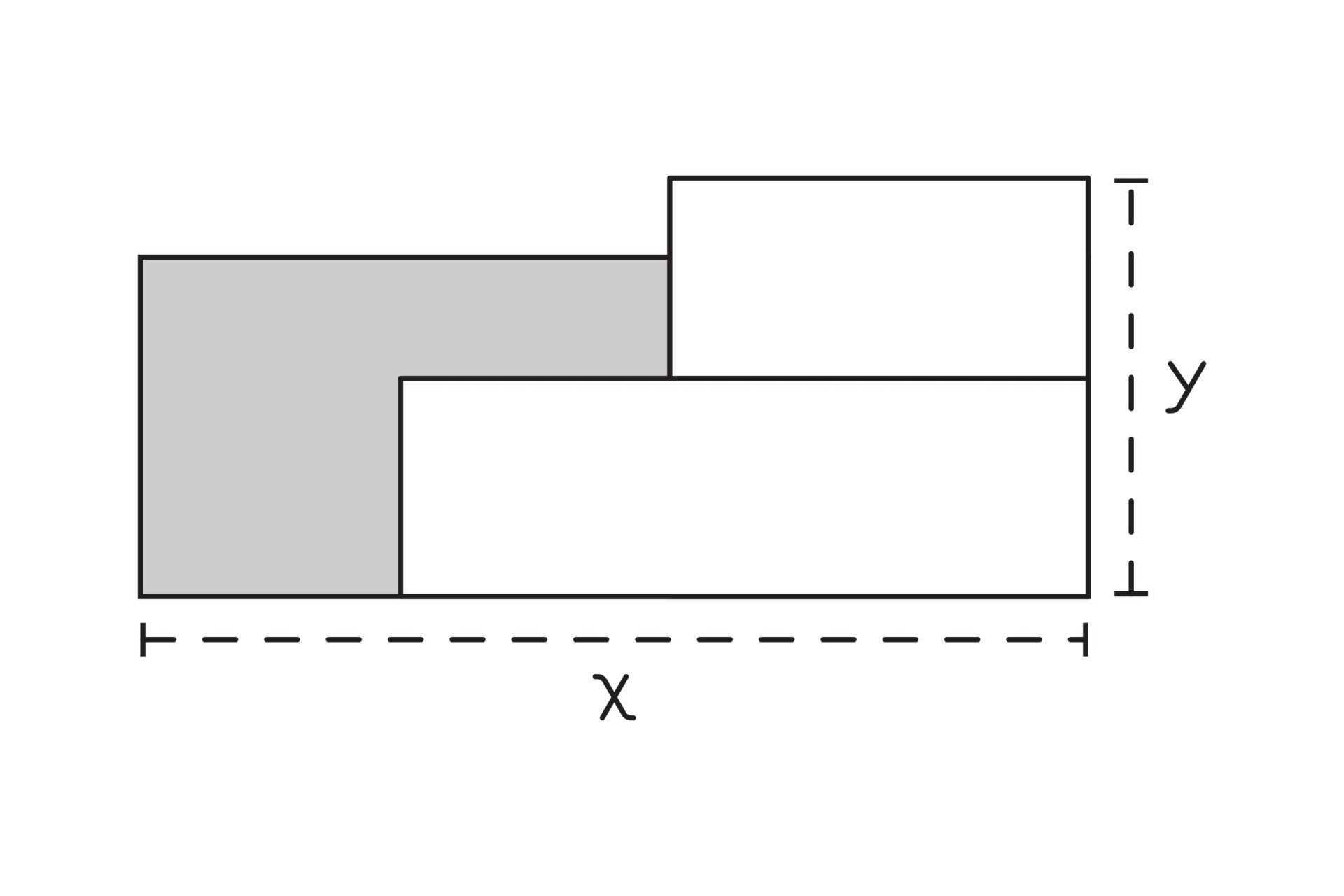

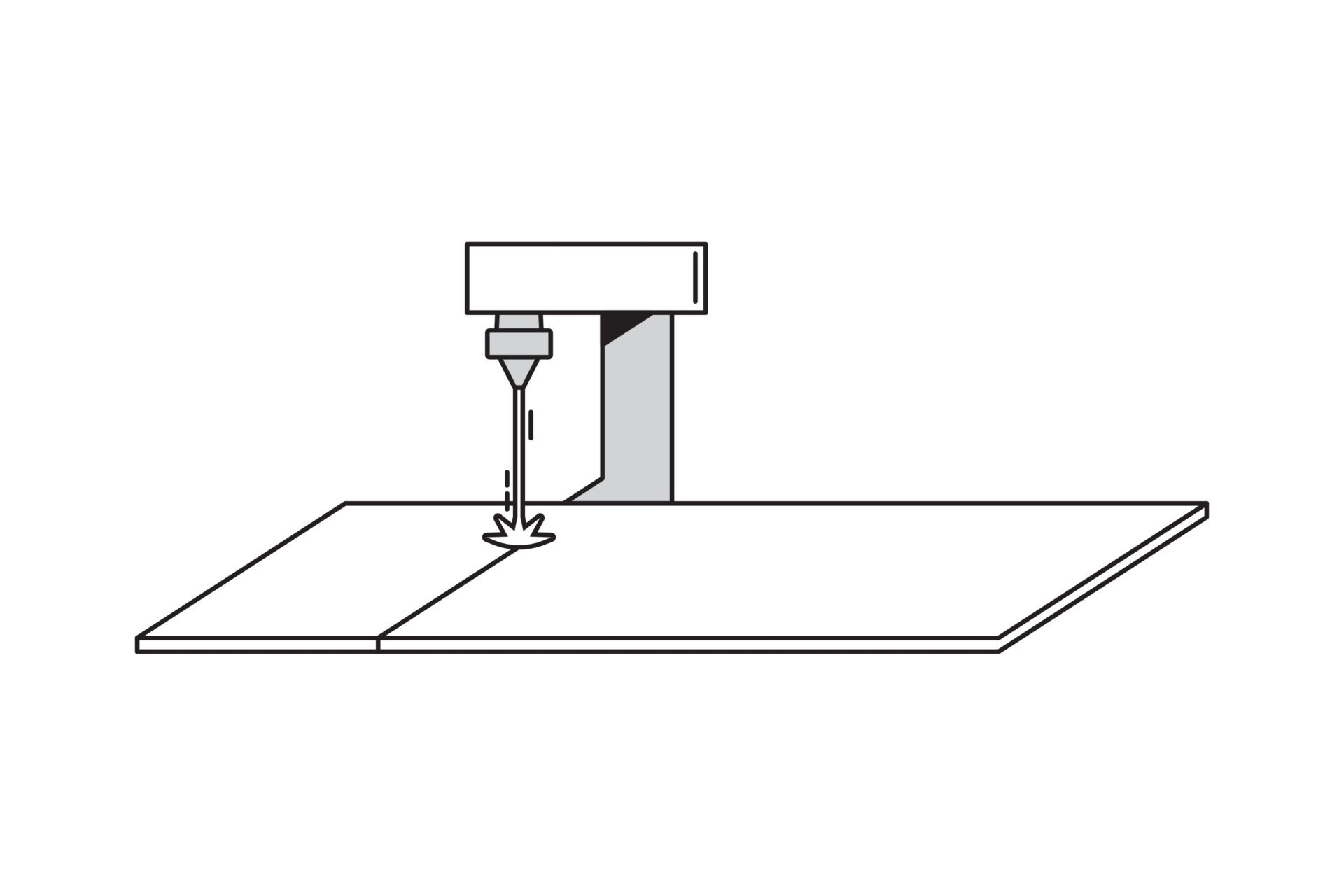

| Material Usage | Panel sizes can nest efficiently into raw material sheets |

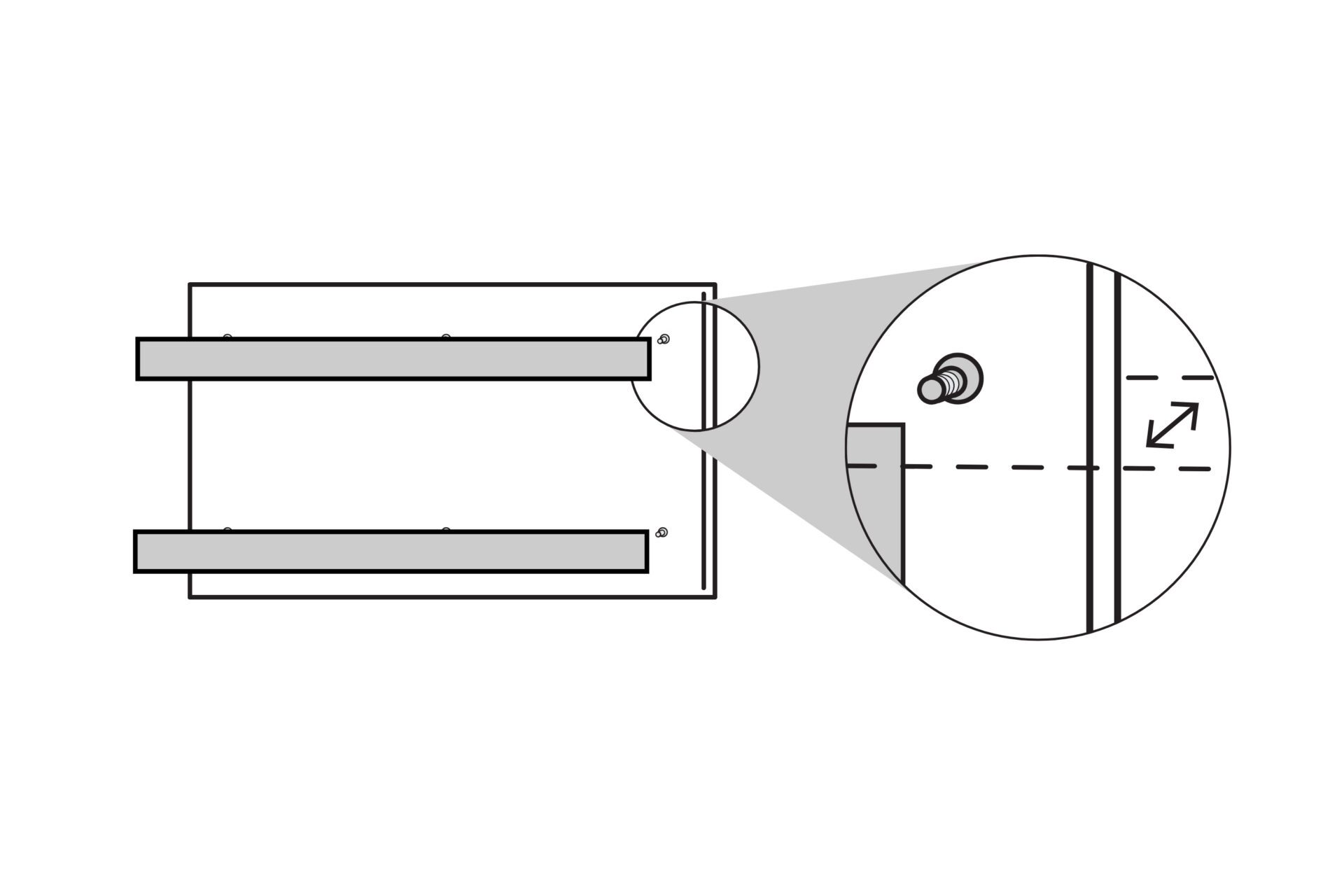

| Installation Tolerance | Hardware allows for Z-axis tolerance for system flatness |

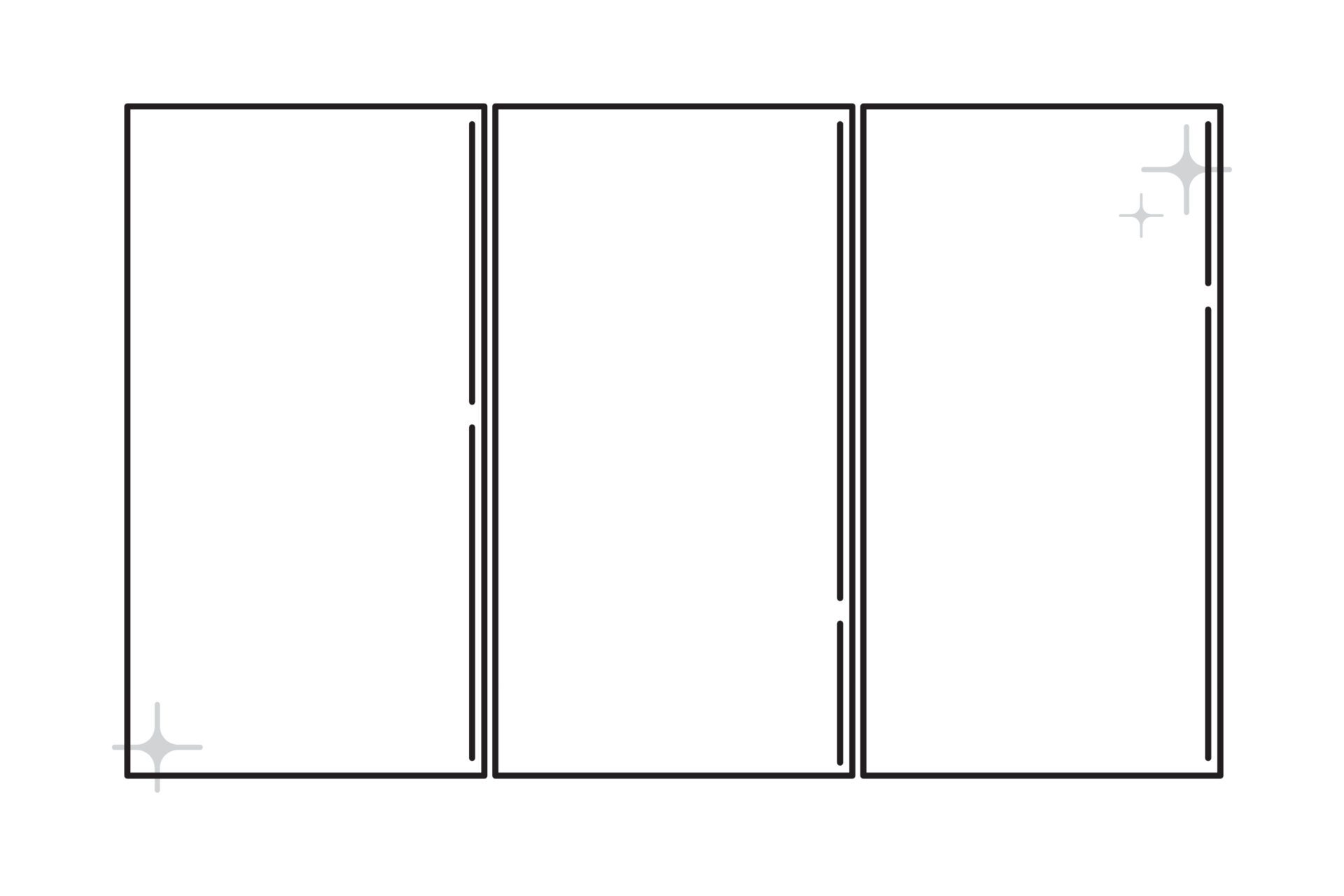

| Concealed Hardware | No visible fasteners; no visible backside weld transfer |
Finishes for Plate Panel
Explore Zahner Surfaces that are ideal for use with Plate Panel.

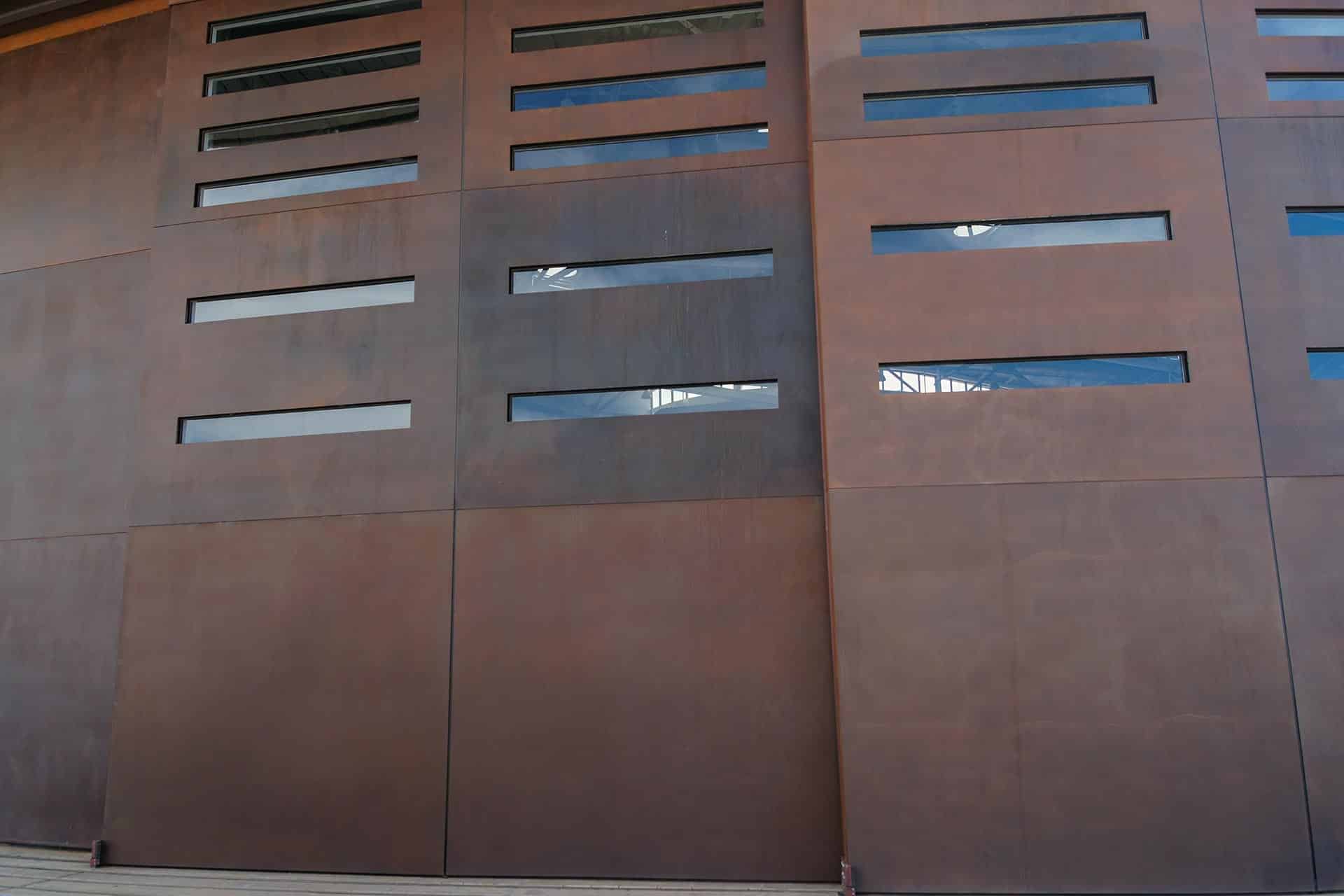

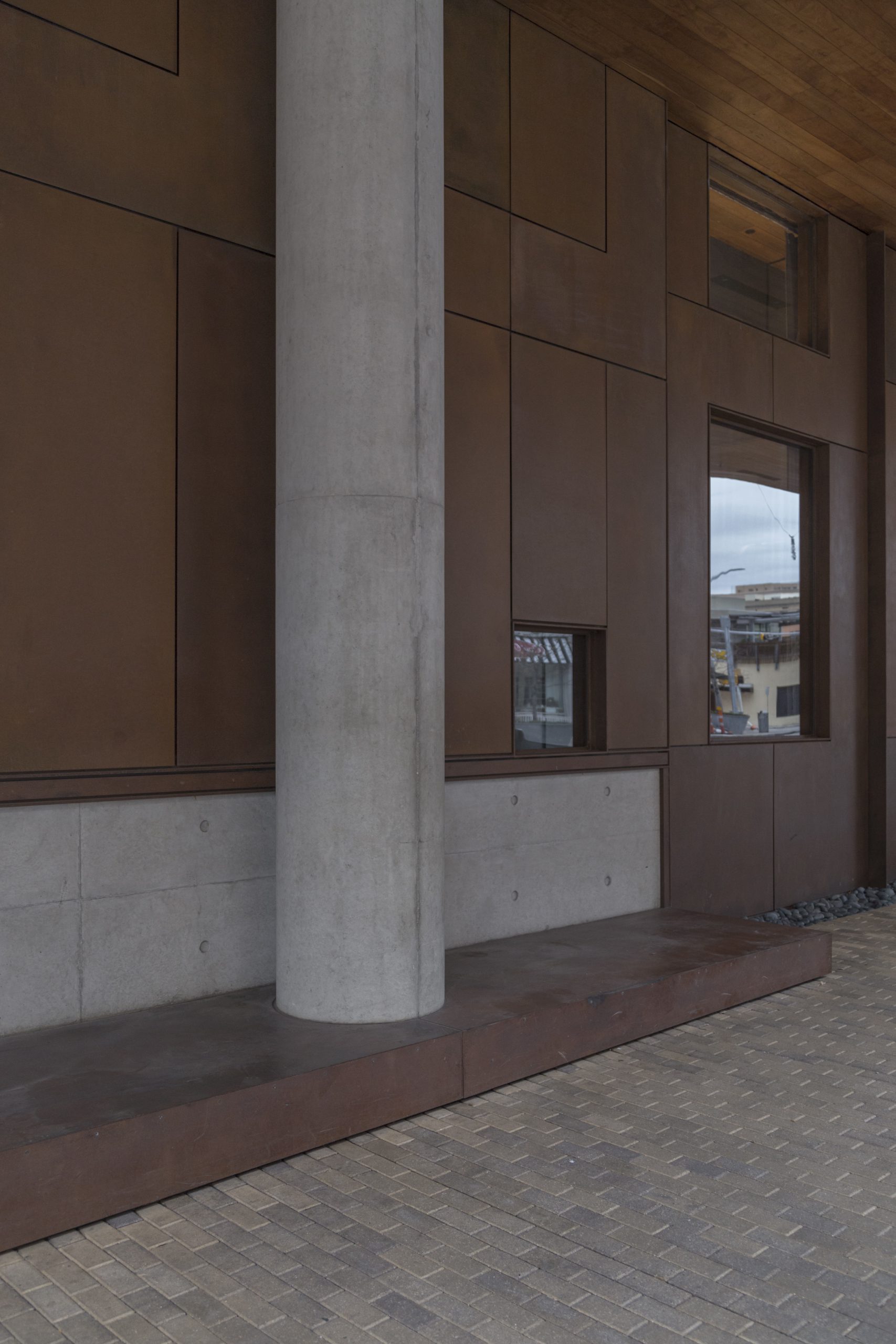

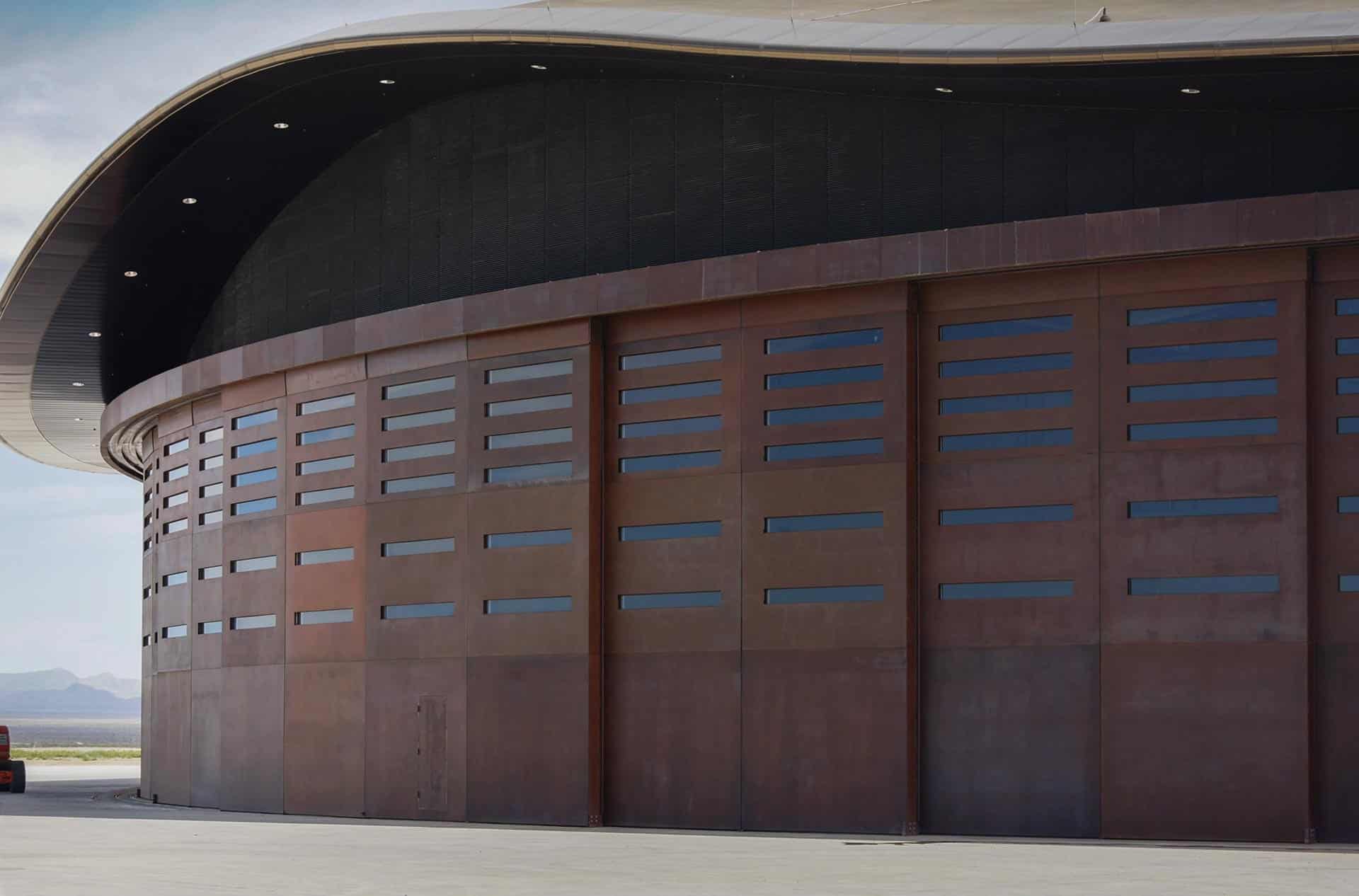

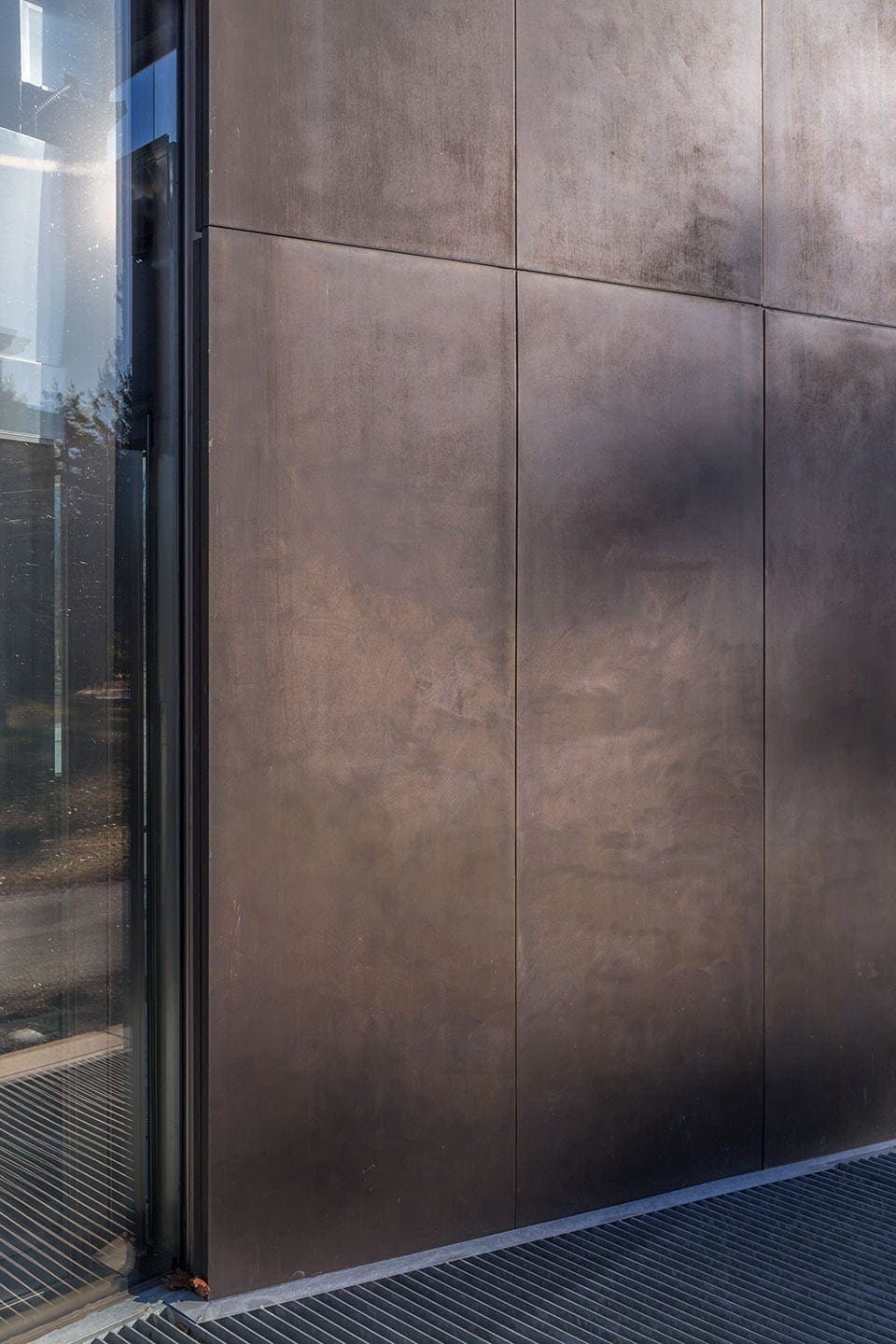

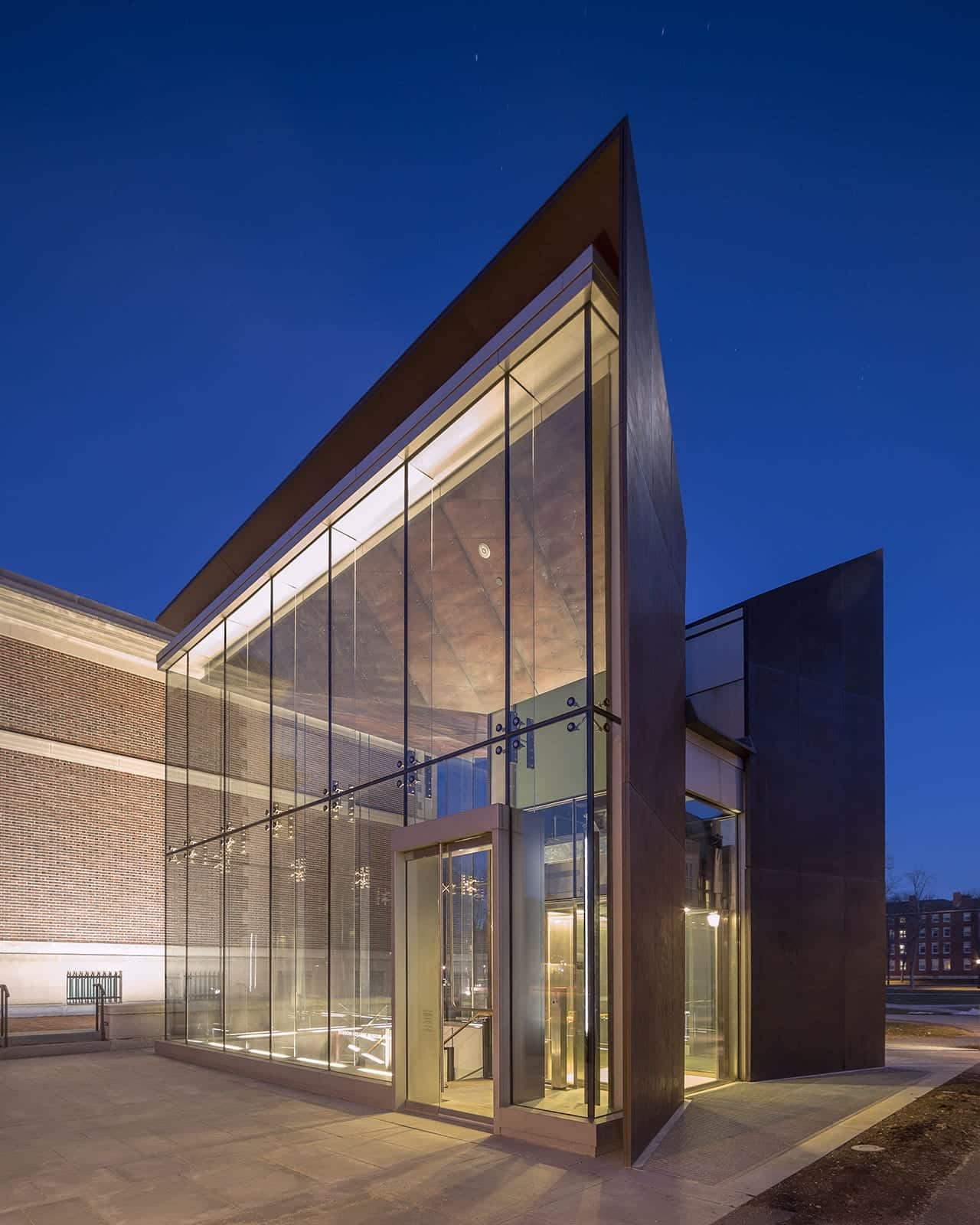

Plate Panel Inspiration
See the Plate Panel system in application.
Explore Plate Panel in a selection of Zahner projects.
Specs & Info
| Title | File Type | Link |
|---|---|---|
| Double Return – Long Span – DWG / DXF / PDF | zip | |
| Double Return – Short Span – DWG / DXF / PDF | zip | |
| Drop & Lock – with Hat Channel – DWG / DXF / PDF | zip | |
| Drop & Lock – with Mullion and Anchor – DWG / DXF / PDF | zip | |
| Image File Guidelines | ||
| ImageWall Inspiration Guide | ||
| ImageWall Product Datasheet | ||
| ImageWall Specification – Double Return | docx | |
| ImageWall Specification – Drop & Lock | docx | |
| Surfaces Instructions – General Cleaning | ||
| Zahner Product Warranty |
Details
Painted Aluminum
- Alloy: 5052 H-32
- Available Finishes: 2-coat solid color 70% PVDF coating
- Material Thickness: 0.090″
- Panel Weight / sqft (without perforation): 1.27 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 37 PSF
- Double Return Panels – Long Span
- Not available
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 28 PSF
Anodized Aluminum
- Alloy: 5052 H-32
- Available Finishes: AAMA 611 Class I Anodizing
- Material Thickness: 0.125″
- Panel Weight / sqft (without perforation): 1.75 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 78 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 44 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 52 PSF
Stainless Steel
- Alloy: 304/316L
- Available Finishes: Angel Hair®
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.15 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 43 PSF
Weathering Steel
- Alloy: A606-4
- Available Finishes: Solanum Steel™
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.13 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 46 PSF
1at maximum deflection of Length/60
