Flat Seam Facade System
Panel Attachment System
Flat Seam by Zahner offers a uniquely flexible and affordable metal facade system, compatible with most Zahner Surfaces.
New Paltz, New York
Details
36 Inch
- Panel Height, in : 35.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 11
- Solanum Steel : 16
- Oscura Blackened Steel : 13
- Spectura Steel : 13
- Dirty Penny Copper : 13

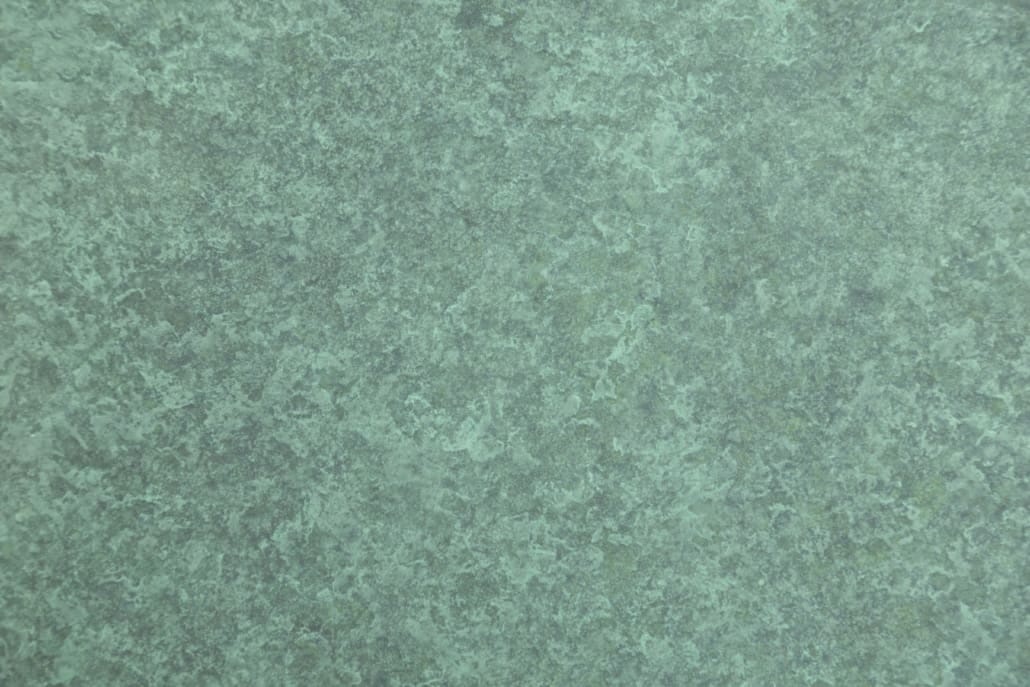

- Star Blue Copper : 13
- Baroque Zinc : 11
- Hunter Zinc : 11
- Roano Zinc : 11
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
54 Inch
- Panel Height, in : 53.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 16
- Solanum Steel : 24
- Oscura Blackened Steel : 19
- Spectura Steel : 19
- Dirty Penny Copper : 19
- Star Blue Copper : 19
- Baroque Zinc : 16
- Hunter Zinc : 16
- Roano Zinc : 16
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
90 Inch
- Panel Height, in : 89.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 26
- Solanum Steel : 39
- Oscura Blackened Steel : 32
- Spectura Steel : 32
- Dirty Penny Copper : 32
- Star Blue Copper : 32
- Baroque Zinc : 27
- Hunter Zinc : 27
- Roano Zinc : 27
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
108 Inch
- Panel Height, in : 107.75
- Panel Width, in : 17.75
- Panel Depth, in : 2.26
- System Depth, in : 3.25
- Approximate Panel Weight, lbs
- Angel Hair Stainless Steel : 32
- Solanum Steel : 47
- Oscura Blackened Steel : 38
- Spectura Steel : 38
- Dirty Penny Copper : 38
- Star Blue Copper : 38
- Baroque Zinc : 32
- Hunter Zinc : 32
- Roano Zinc : 32
- Horizontal Reveal Height, in : 0.25
- Vertical Reveal Width, in : 0.25 – 3.00*
- Minimum Clearance Above Top Panel, in : 1.00
- Hardware Height, in : 107.63
- Reveal Cover Height, in : 107.75
About the Flat Seam System

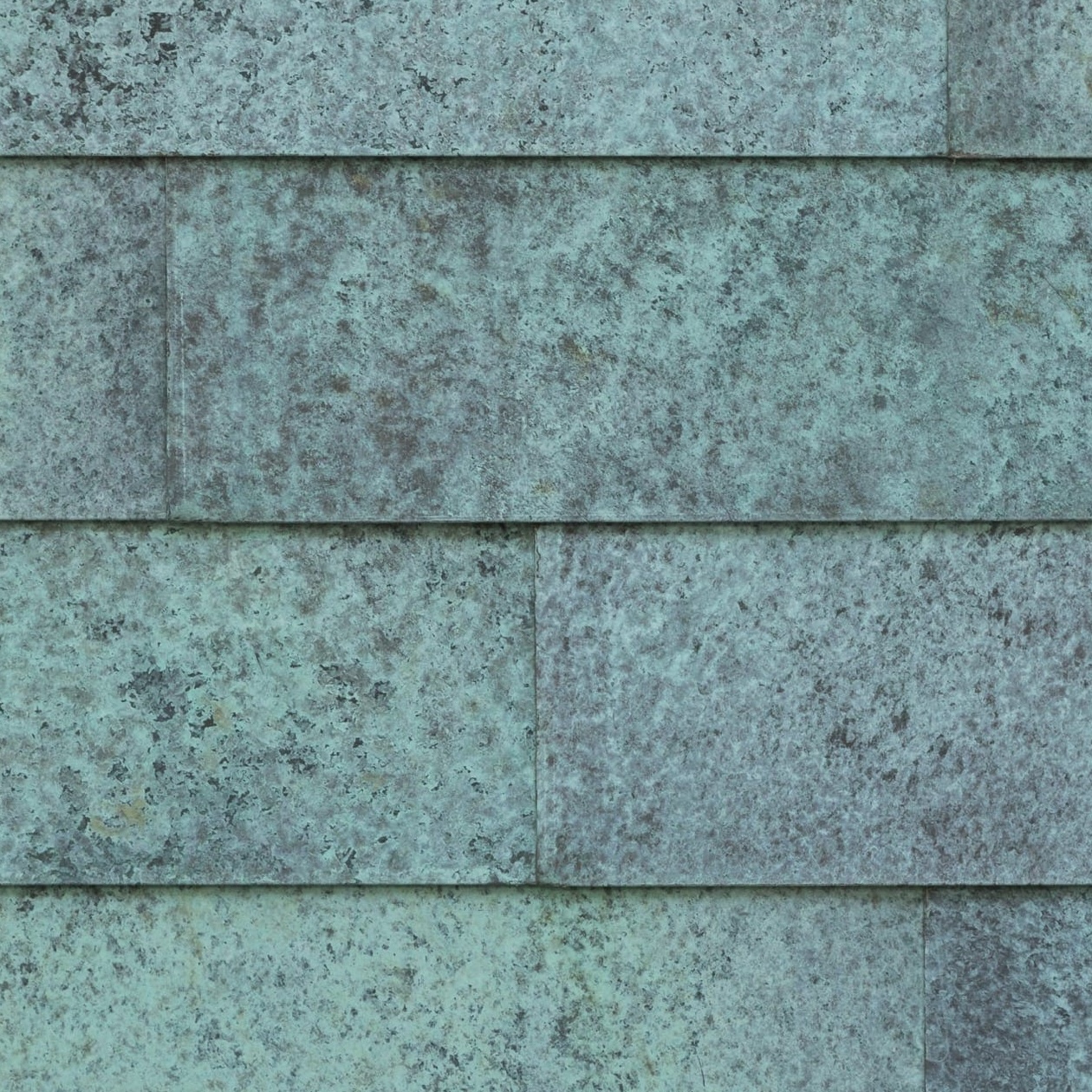

Flat Seam provides designers with a customizable facade system that can feature almost any finish. Various aesthetics are achievable with this system, as it allows for a combination of varying panel sizes, shapes, and joint layouts with similar fabrication and installation techniques.

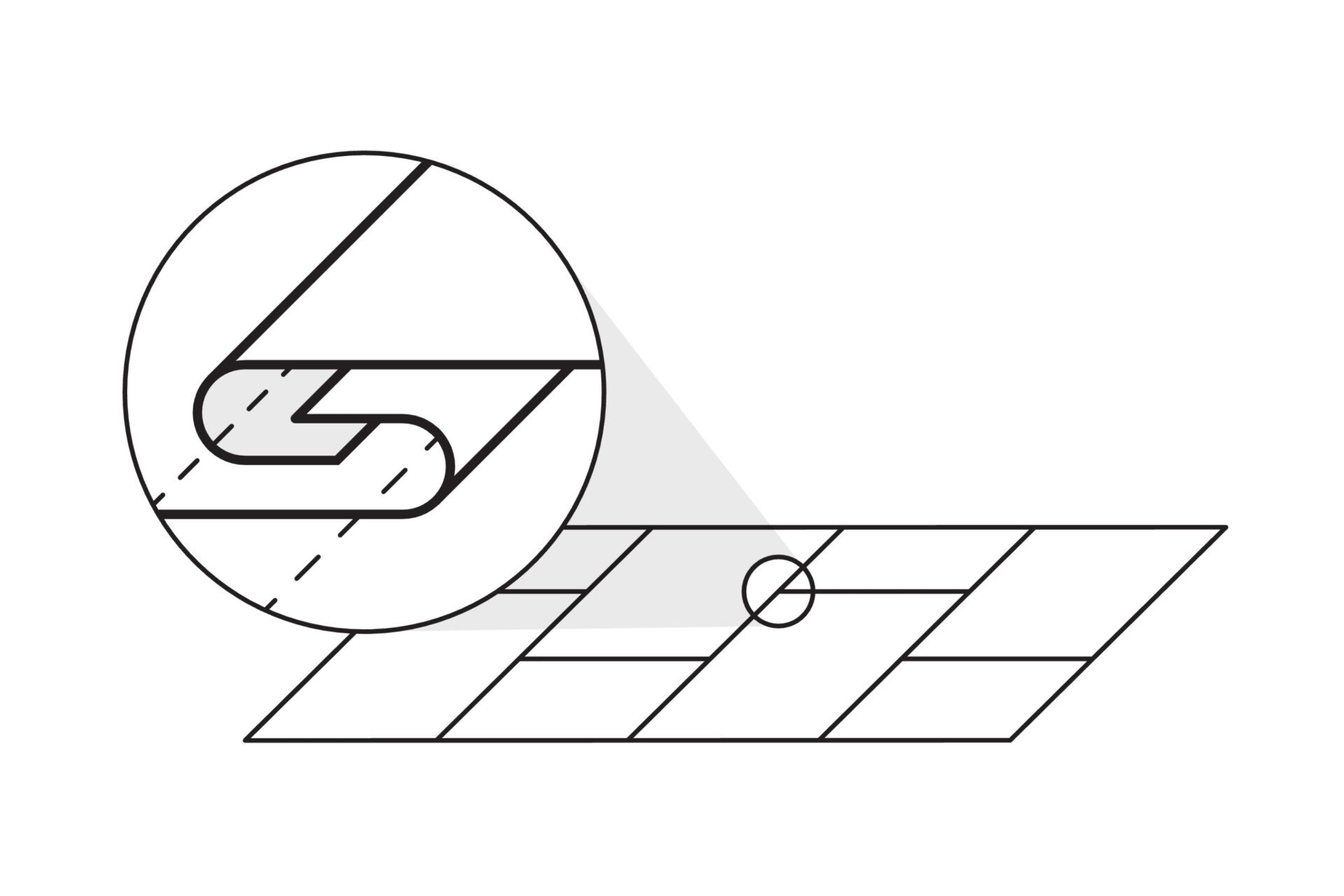

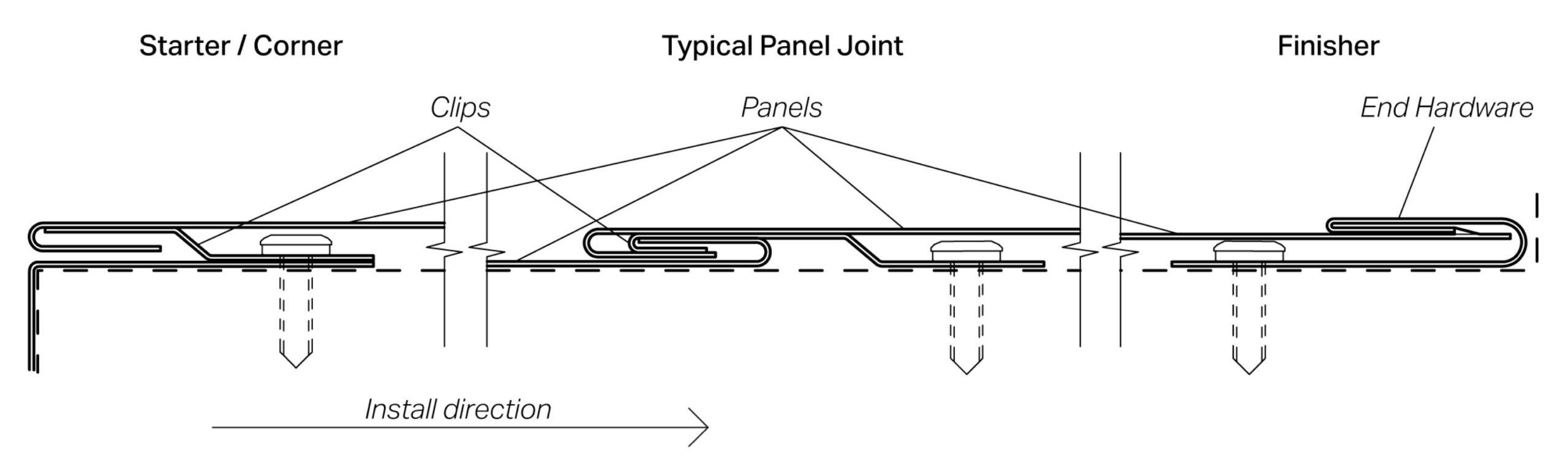

Our Flat Seam system comprises interlocking panels and stainless steel clips that secure the system to the substrate. These overlocking hems allow some tolerance in the system layout, making field modifications flexible and efficient.
Great for any vertical wall application or sloping roof, we can help you choose the best material, finish, panel size, and joint pattern for your project’s design and budget.
Benefits
| Material Finish Options | An excellent option for thinner materials, controlling cost |
| Material Usage | Panel sizes nest efficiently into raw material sheets |

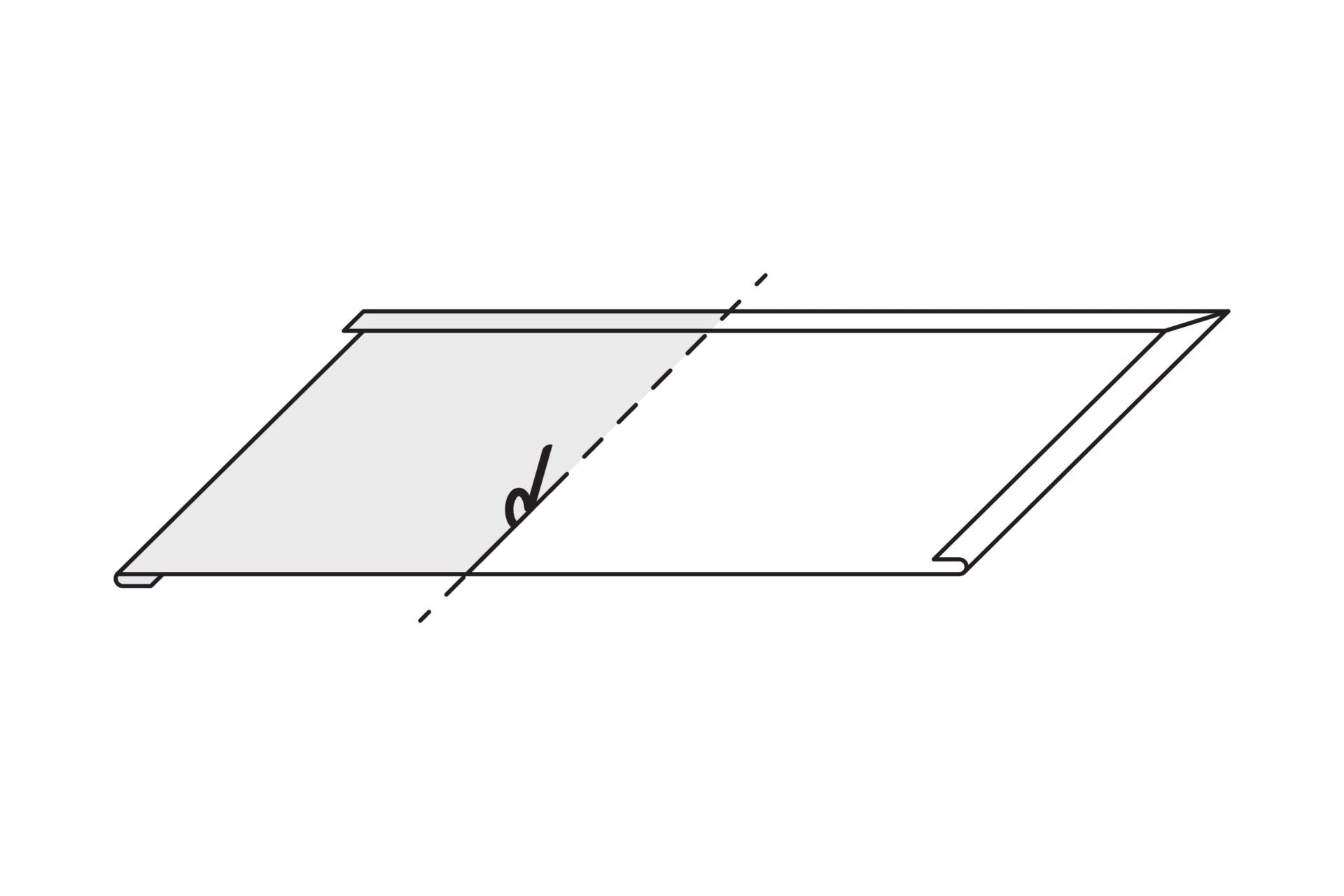

| Installation Flexibility | Panels can be field-cut to size, improving scheduling and productivity |
| Tolerances | Hem overlap allows for ideal installation tolerances |

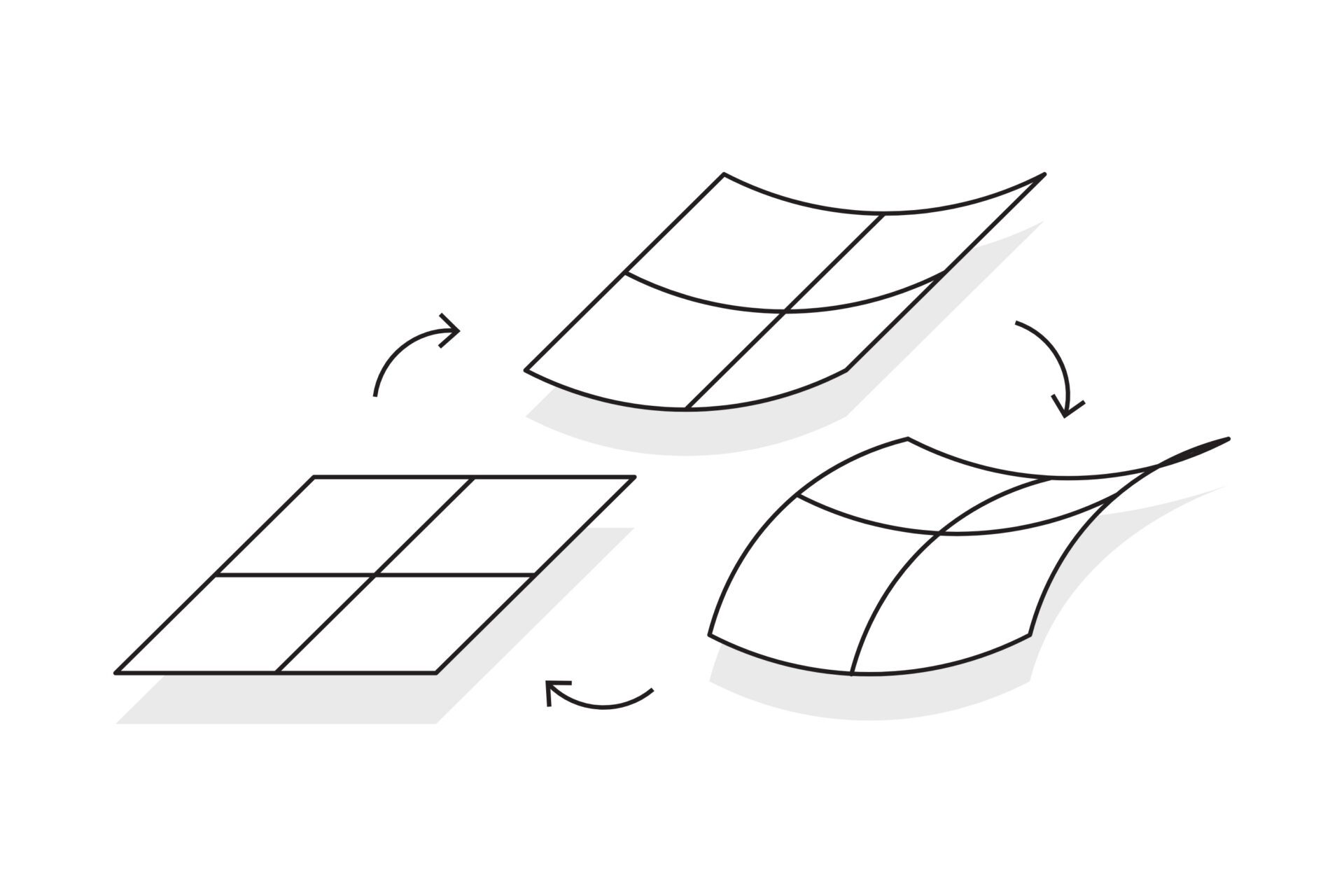

| Adapts to Geometry | Flat seam panels easily form to complex geometry |

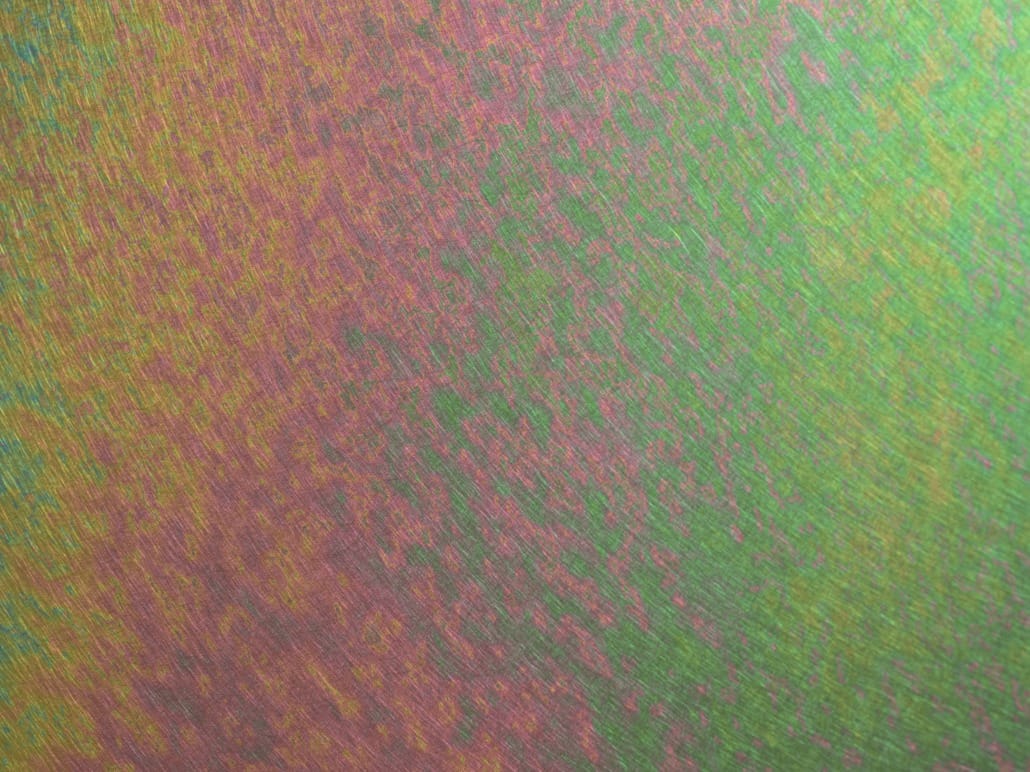

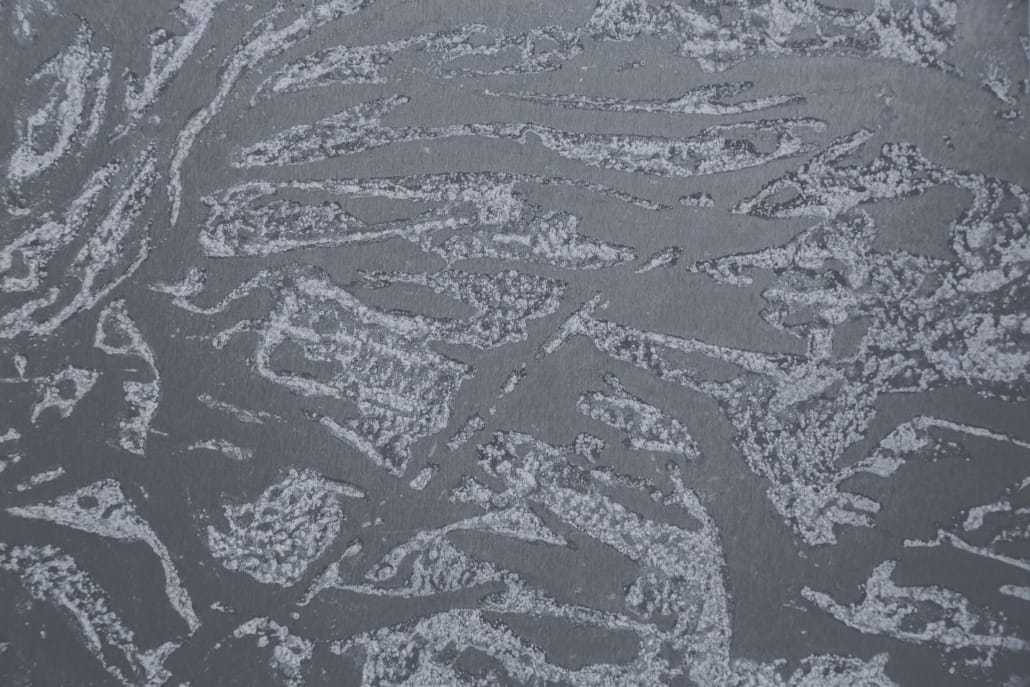

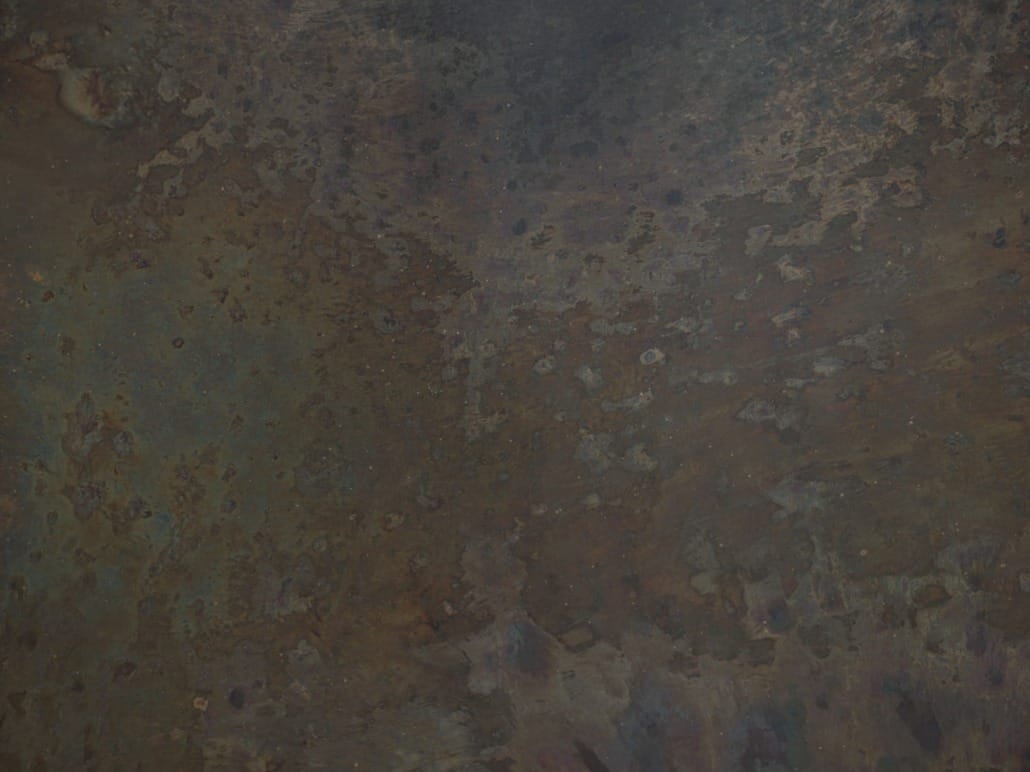

Finishes for Flat Seam
Explore Zahner Surfaces that are ideal for use with Flat Seam.

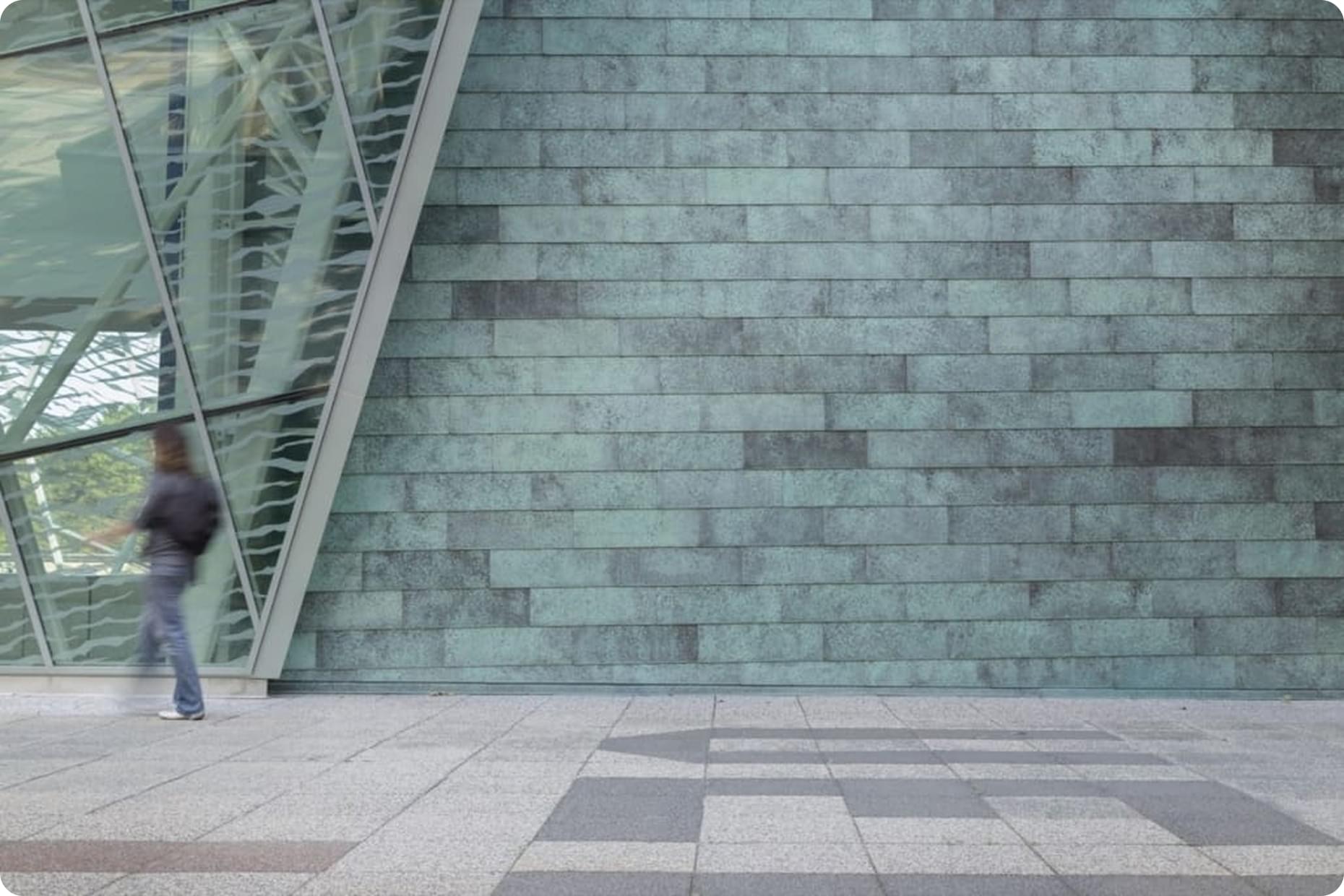

Flat Seam Inspiration
See the Flat Seam system in application.
Explore Flat Seam in a selection of Zahner projects.
Biloxi, Mississippi

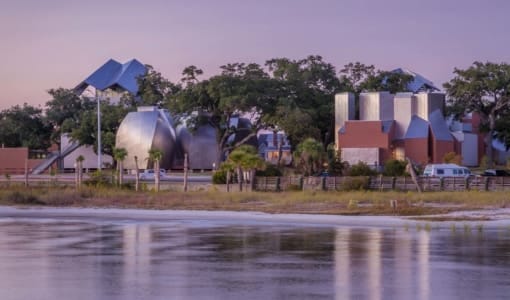

OHR O’Keefe Museum
Leawood, Kansas

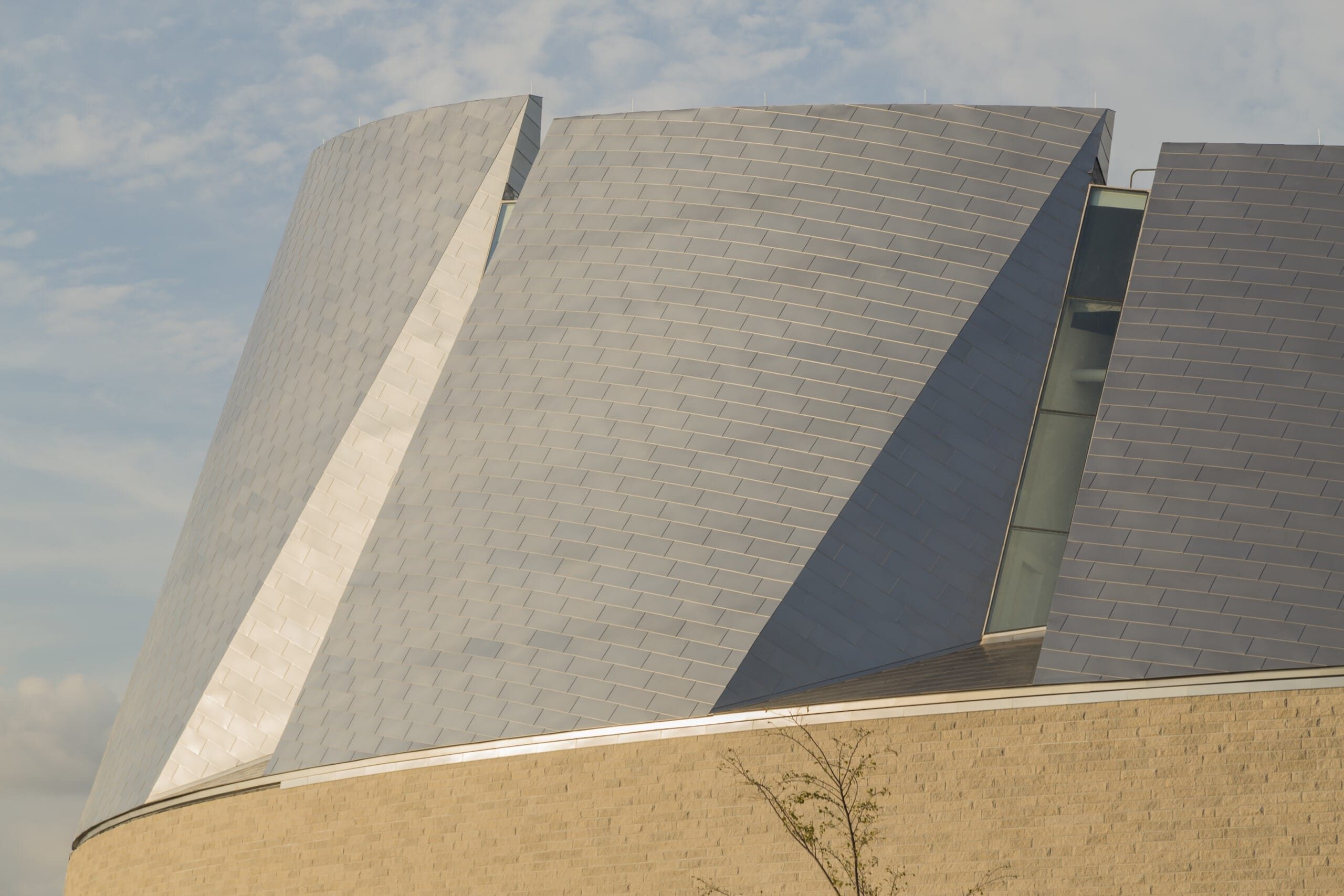

Church of the Resurrection
New Milford, Connecticut

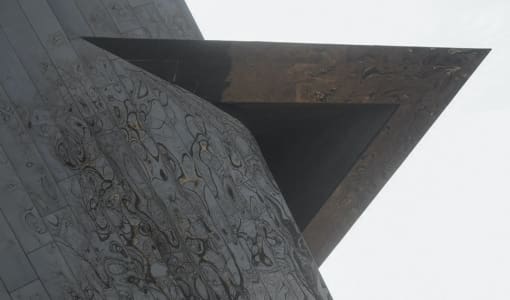

18.36.54
Roanoke, Virginia
Taubman Museum

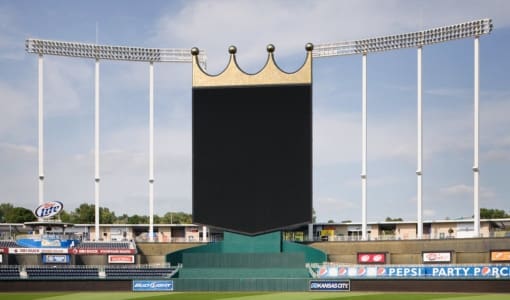

Kansas City, Missouri
Royals Crown
Charlotte, North Carolina

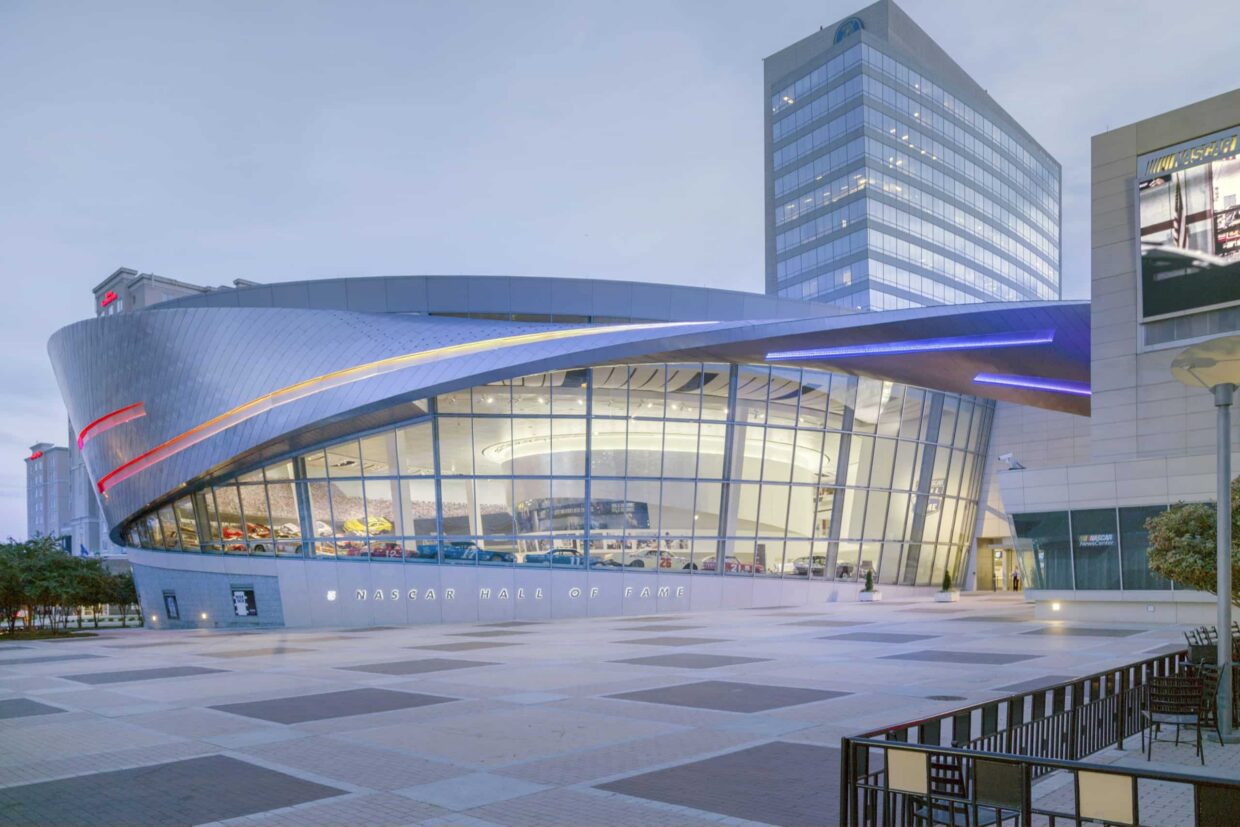

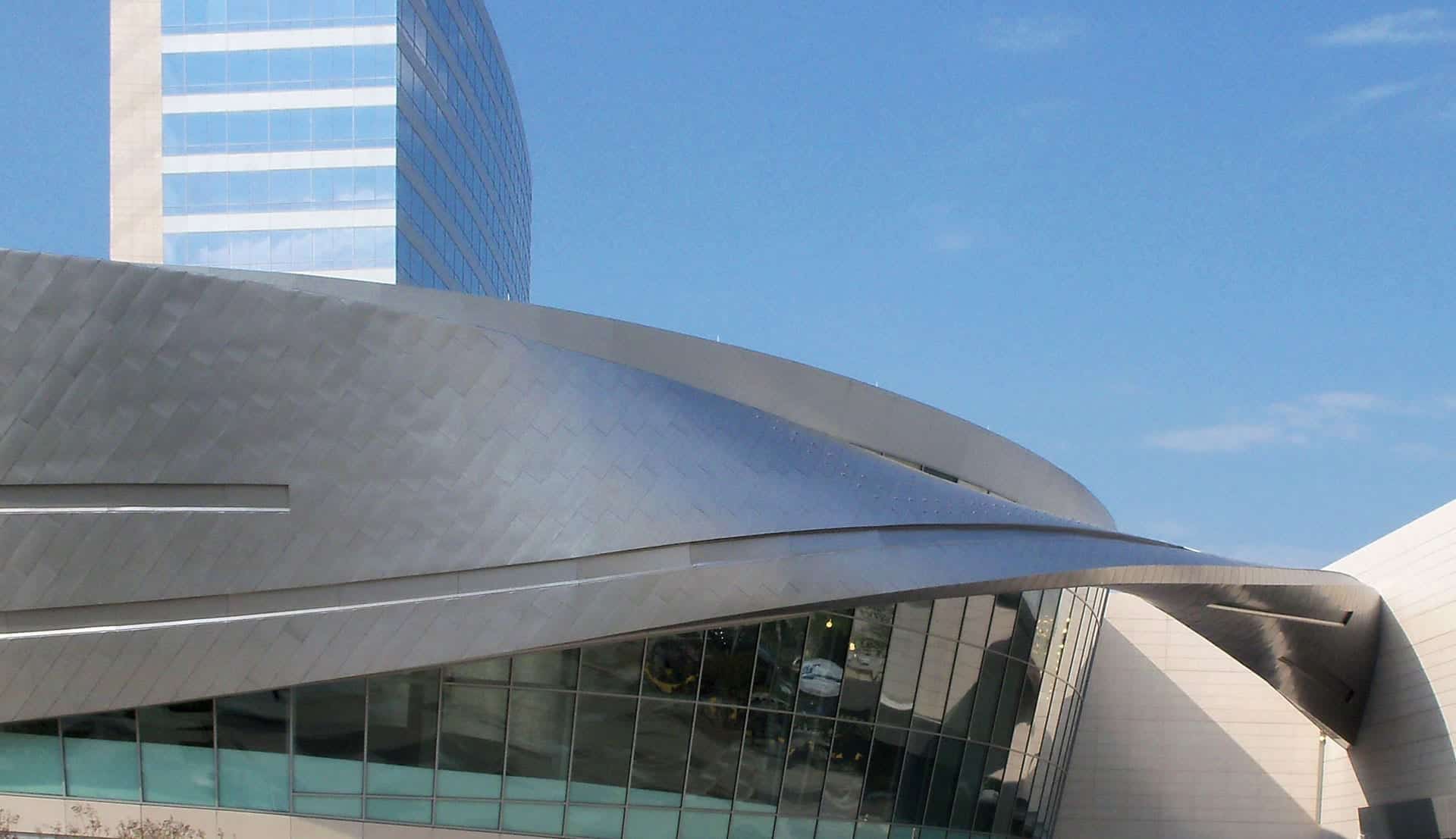

NASCAR Hall of Fame

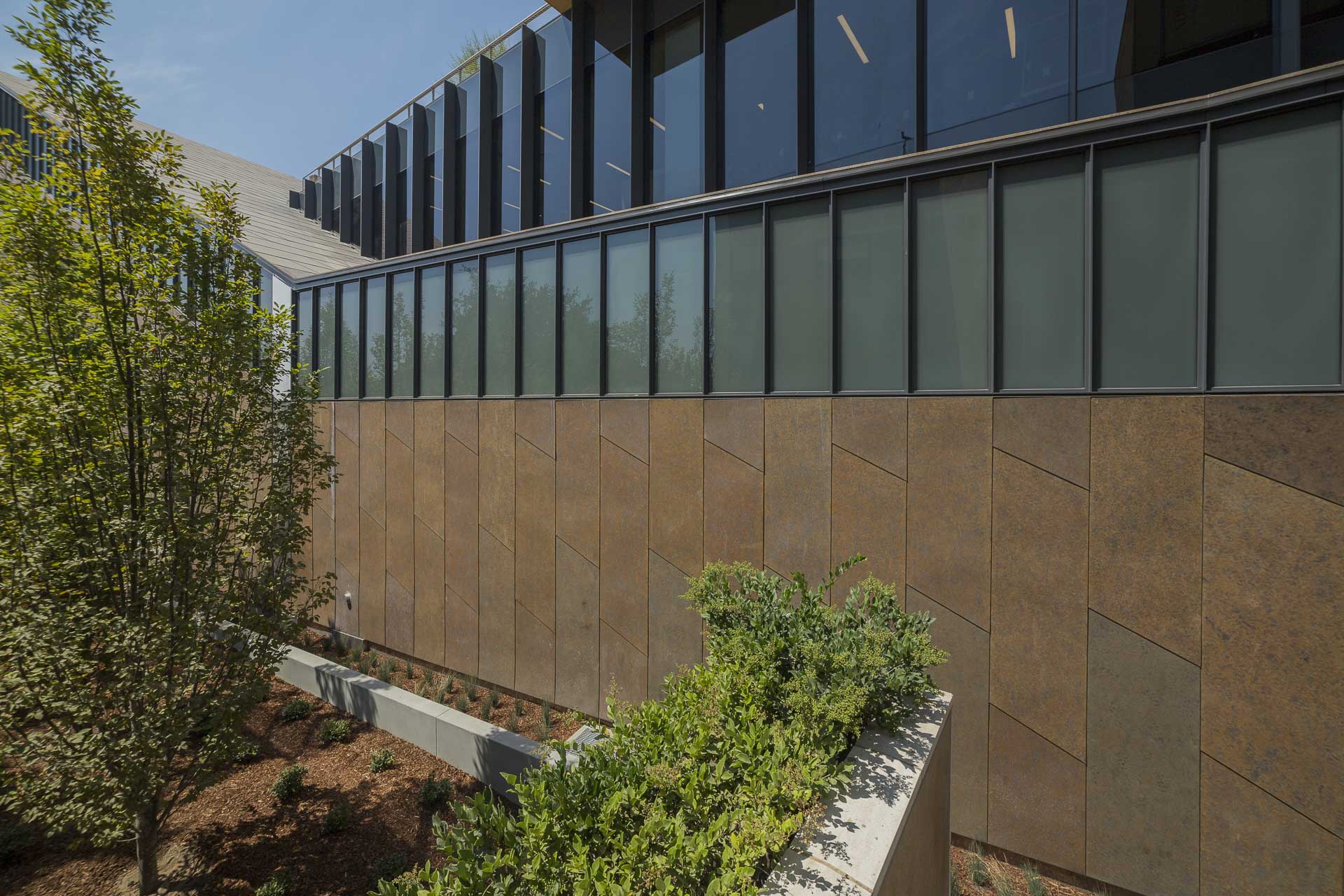

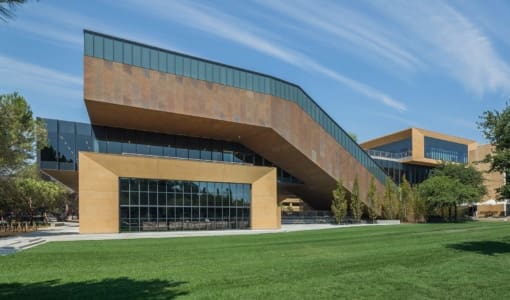

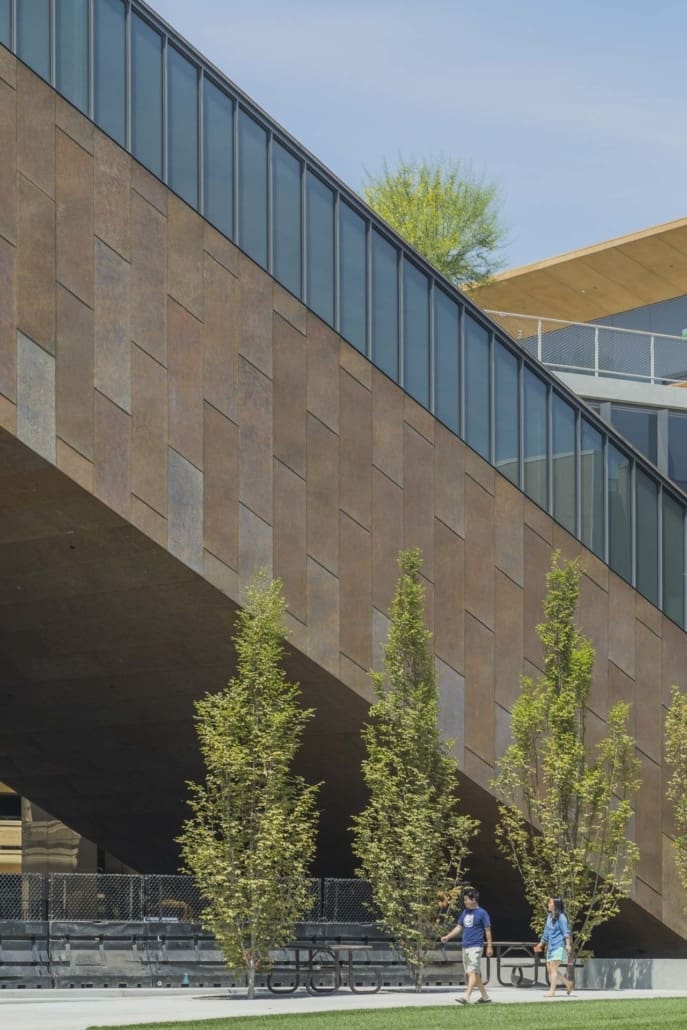

Stanford, California

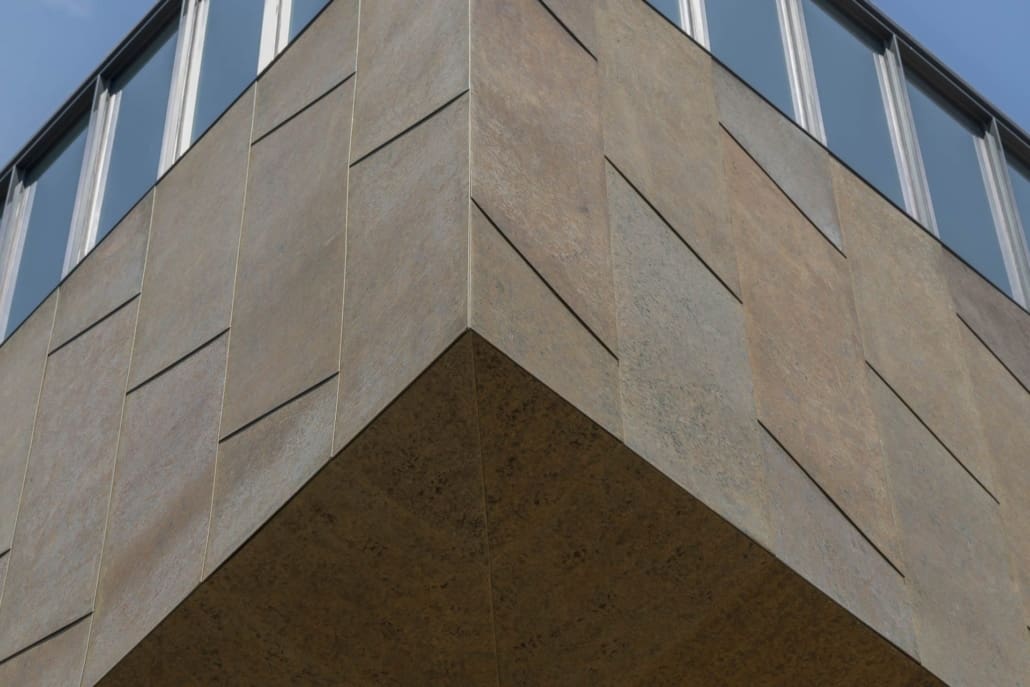

McMurtry Building

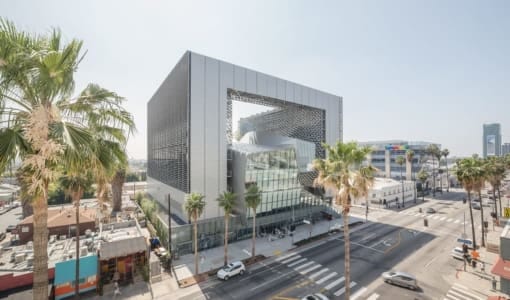

Los Angeles, California
Emerson LA

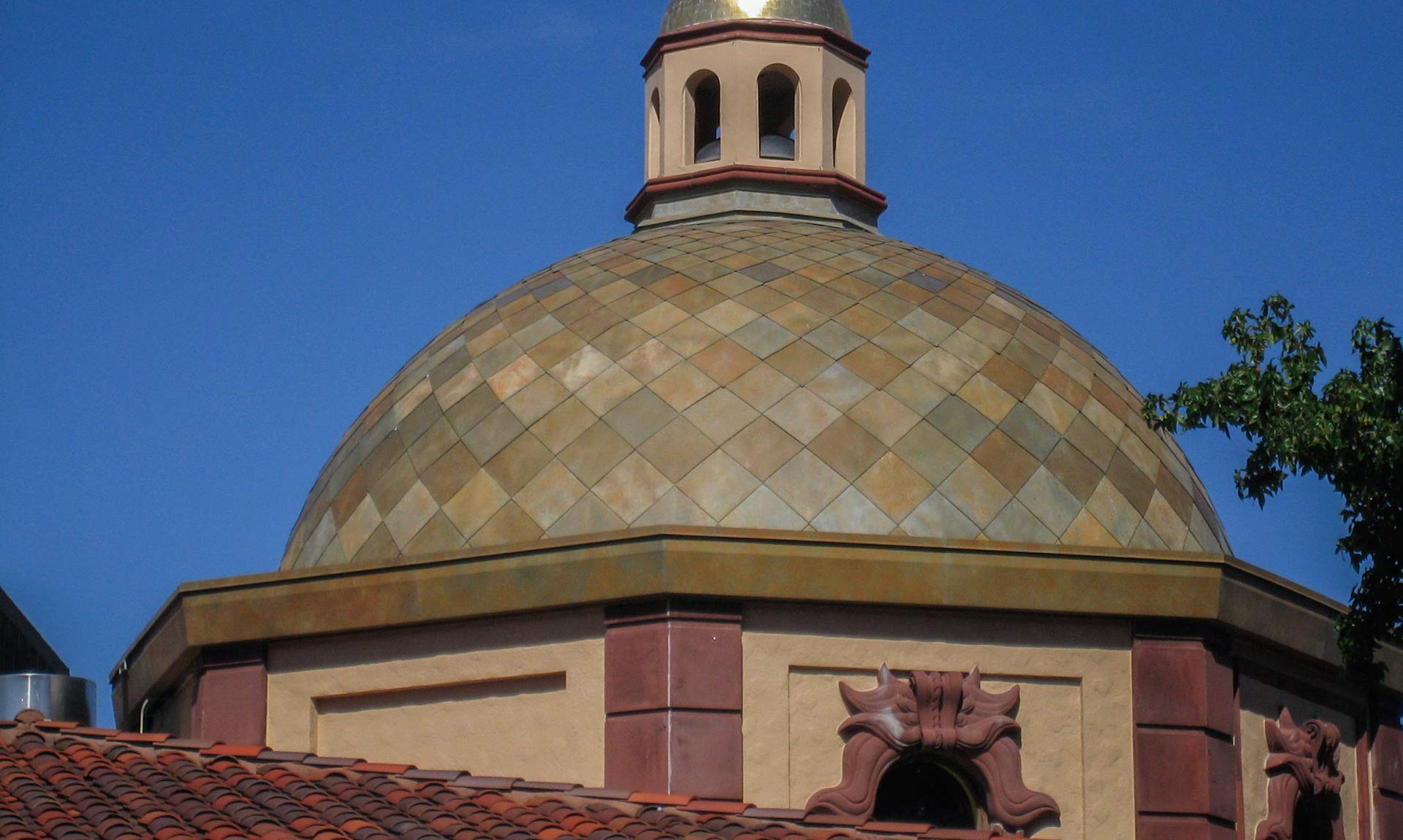

Kansas City, Missouri
Dome on the Plaza

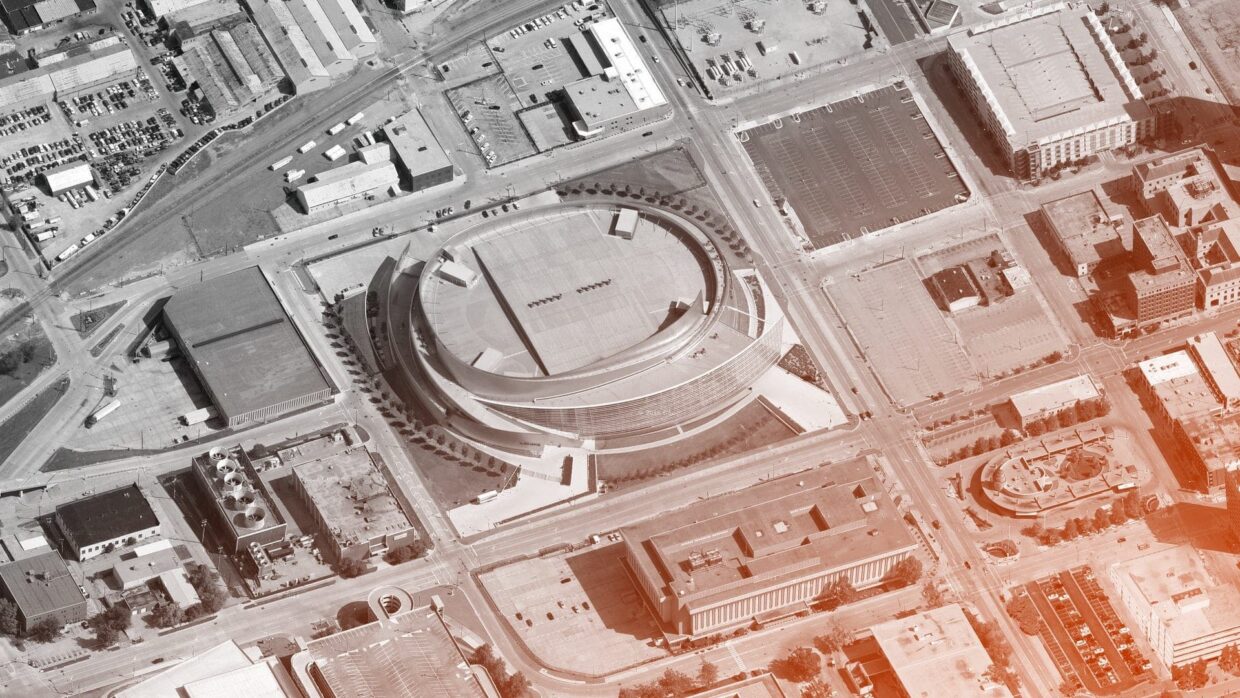

Tulsa, Oklahoma
BOK Center
Edmonton, Canada

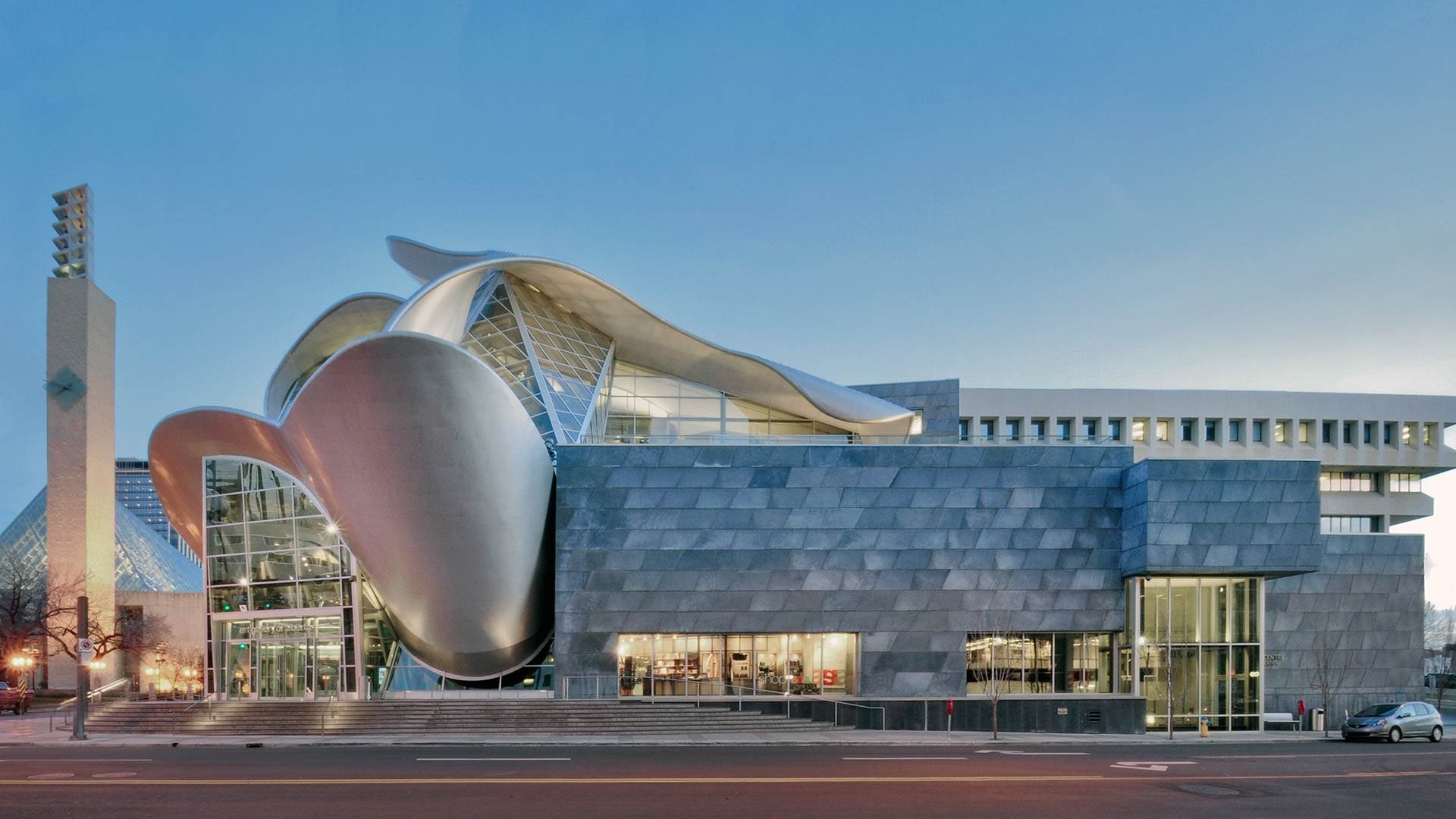

Art Gallery of Alberta
Specs & Info
| Title | File Type | Link |
|---|---|---|
| Double Return – Long Span – DWG / DXF / PDF | zip | |
| Double Return – Short Span – DWG / DXF / PDF | zip | |
| Drop & Lock – with Hat Channel – DWG / DXF / PDF | zip | |
| Drop & Lock – with Mullion and Anchor – DWG / DXF / PDF | zip | |
| Image File Guidelines | ||
| ImageWall Inspiration Guide | ||
| ImageWall Product Datasheet | ||
| ImageWall Specification – Double Return | docx | |
| ImageWall Specification – Drop & Lock | docx | |
| Surfaces Instructions – General Cleaning | ||
| Zahner Product Warranty |
Details
Painted Aluminum
- Alloy: 5052 H-32
- Available Finishes: 2-coat solid color 70% PVDF coating
- Material Thickness: 0.090″
- Panel Weight / sqft (without perforation): 1.27 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 37 PSF
- Double Return Panels – Long Span
- Not available
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 28 PSF
Anodized Aluminum
- Alloy: 5052 H-32
- Available Finishes: AAMA 611 Class I Anodizing
- Material Thickness: 0.125″
- Panel Weight / sqft (without perforation): 1.75 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 78 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 44 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 52 PSF
Stainless Steel
- Alloy: 304/316L
- Available Finishes: Angel Hair®
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.15 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 43 PSF
Weathering Steel
- Alloy: A606-4
- Available Finishes: Solanum Steel™
- Material Thickness: 0.075″
- Panel Weight / sqft (without perforation): 3.13 lbs
- Perforation Grid Size: 1” O.C.
- Perforation Hole Sizes: 0.25” – 0.875” in 1/16” increments
- Double Return Panels – Short Span
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.5″
- Panel Max Design Pressure (ASD)1: 51 PSF
- Double Return Panels – Long Span
- Panel Face Width x Length: maximum 30” x 90”
- Panel Face Depth: 4″
- Panel Max Design Pressure (ASD)1: 24 PSF
- Drop & Lock Panels
- Panel Face Width x Length: maximum 40″ x 120”
- Panel Face Depth: 2.75″
- Panel Max Design Pressure (ASD)1: 46 PSF
1at maximum deflection of Length/60
