Dr. A.H. McCoy Federal Building Modernization

This upgrade to the McCoy Federal Building includes infrastructure additions to the main building and an ancillary building which serves as a security entrance to the main structure. Designed by Schwartz/Silver architects, Zahner provided the glass facade design along with its structural support system.

In 2010, the General Services Administration (GSA) commissioned Schwartz/Silver to upgrade the McCoy Federal Building Courthouse and GSA Facilities in Jackson, Mississippi. Zahner was brought on to construct the building envelope for the structure, under design assist contract. Zahner provided engineering, fabrication, and installation of the curving glass facade in addition to the various architectural metal surfaces.

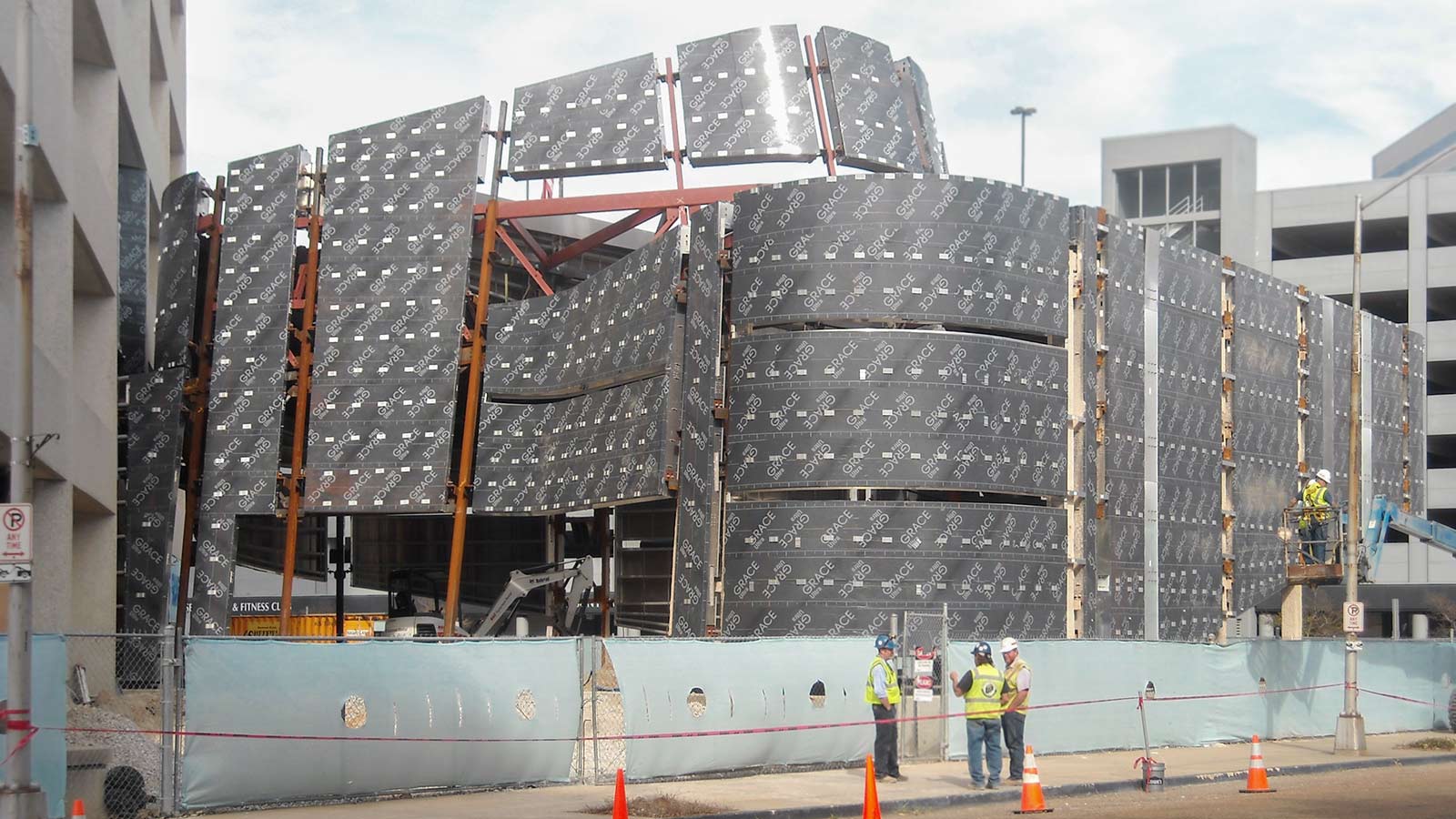

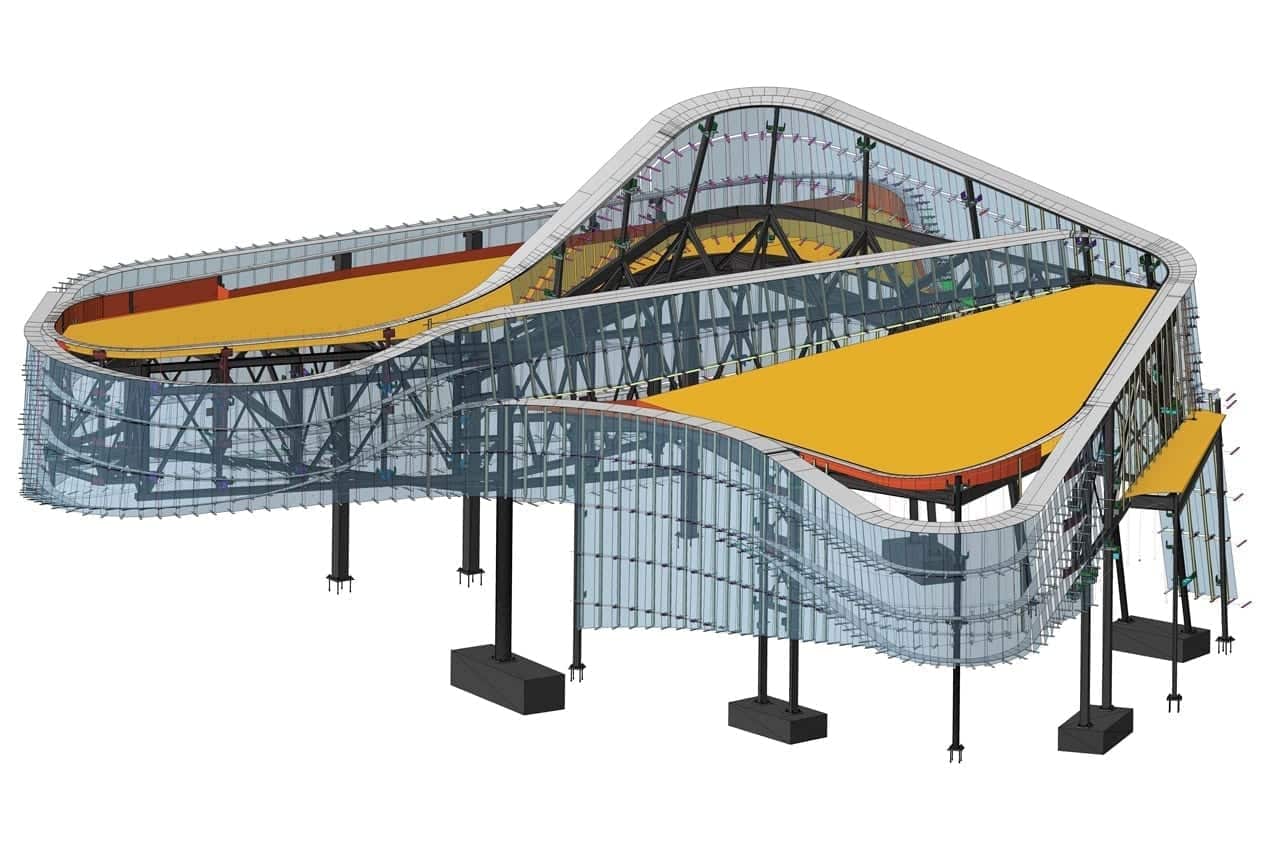

Glass and steel extrusions, each 10 to 25 feet long, thread into ZEPPS Sections to hold 1,078 lites of glass for the design by Schwartz/Silver for the Jackson, Mississippi Federal Courthouse and GSA Building. Locked into place by over 2,000 quills of varying heights, almost every single lite of glass is unique; the lites vary in width and height as specified by Zahner engineering and programming specialists.

New building codes designed to protect sensitive buildings and airports require security check-ins to be performed in a separate building. The addition to the McCoy Federal Building will also improve various functionalities and accessibility, as well as marketability for the value of the property and those around it, a benefit of its use as an example of passive security. It also is suggested that the building will help continue to improve the community interest in the downtown neighborhoods by freshening the street-level image of the Federal courthouse and the downtown area.

The project was completed in 2013, and is LEED Registered and slated to receive LEED Silver certification from the United States Green Building Council.
