Jay Pritzker Pavilion at Millennium Park

Pritzker Pavilion is a one-hundred-foot proscenium located at the North end of Millennium Park in Chicago. Designed by Frank Gehry Partners and manufactured with structural forms by Zahner.

The project consists of fourteen distinct forms, which visually appear as a cohesive whole. Each of these distinct forms is made using a straight stick steel primary structure. A secondary structure manufactured by Zahner attaches to the primary and is then clad in stainless steel by Zahner.

Each of these fourteen shapes serve to form the bandshell, providing protection from the elements while creating a focal point at the stage and orchestra pit of this dynamic outdoor amphitheater. Architects at Frank Gehry Partners began working with Zahner on this project in 1999, which was completed in 2004.

The project uses ZEPPS, the Zahner-patented system for developing curved forms. Made in Kansas City as prefab assemblies using steel and aluminum, each of these structural assemblies, were shipped to Chicago. In total there were 697 assemblies shipped to the jobsite. These assemblies were clad with over 3,000 stainless steel sheets measuring 2' x 4' on average. The sheets used for this project are 22ga Angel Hair finish on A316 stainless steel, a high performance stainless steel alloy containing molybdenum, a metal which provides high corrosion resistance for the metal.

Pritzker paviliion photo copyr zahner 1870 2
Pritzker Pavilion at Millenium Park.
Pritzker paviliion photo copyr zahner 3658

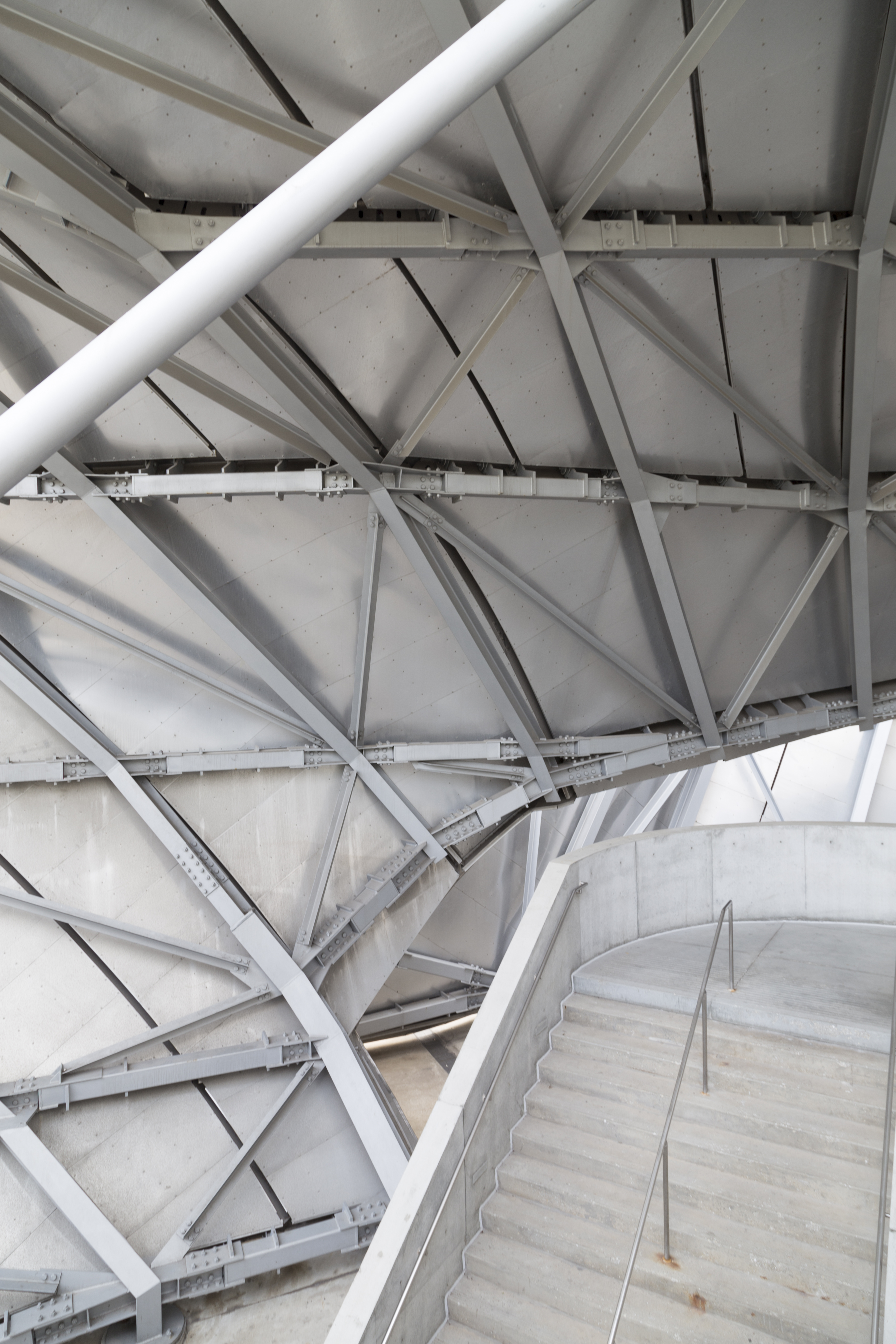

Pritzker paviliion photo copyr zahner 1895
Pritzker paviliion photo copyr zahner 1904 2
Aerial during installation of pritzker
Pritzker construction cmp at night
Pritzker construction cmpp 042203 1
Pritzker construction zepps march 2010
Detail of hardware pritzker
Pritzker construction cmpp 061903 2
Pritzker construction cmpp 072203

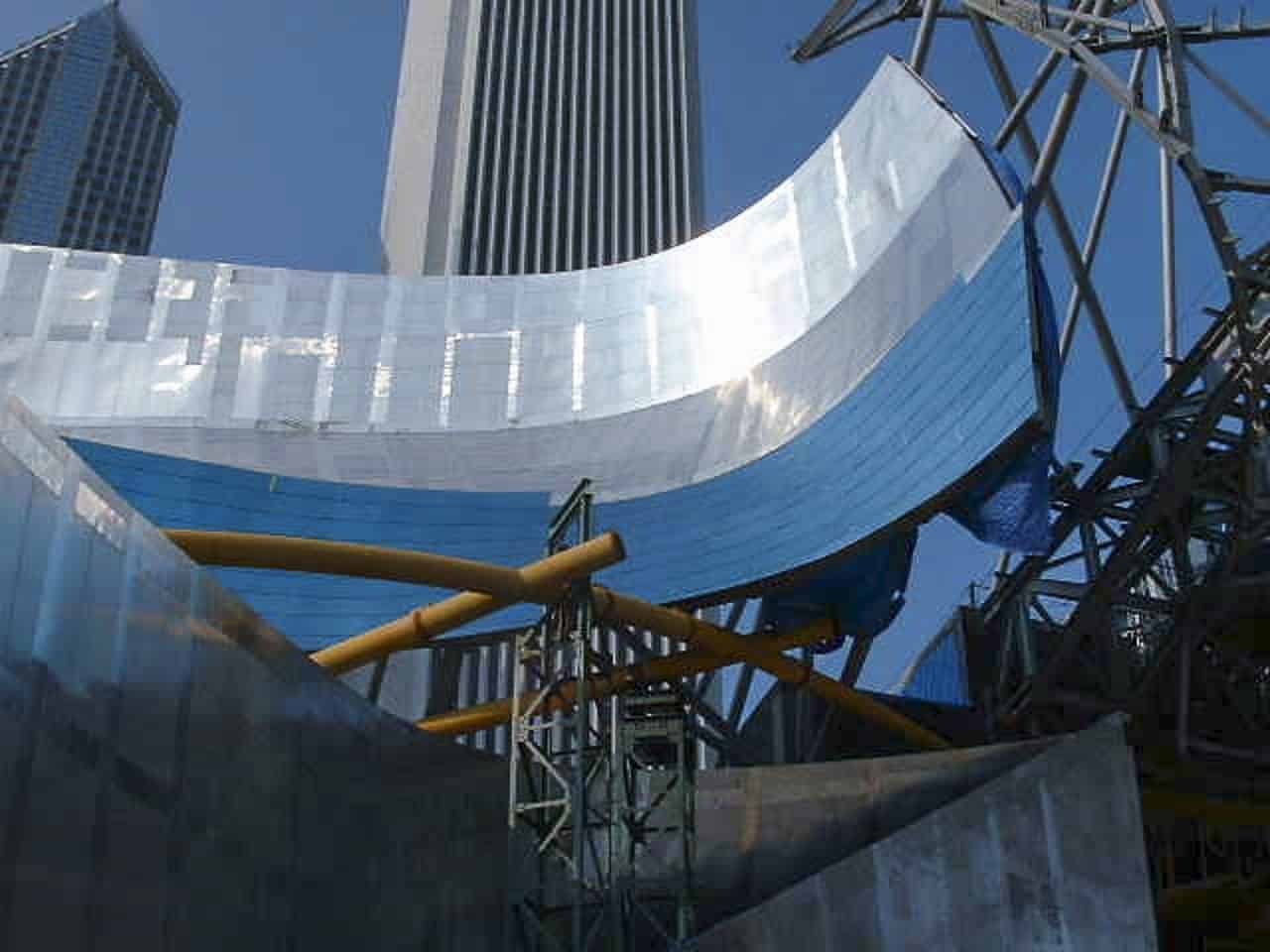

Pritzker construction cmpp 081303
Pritzker construction zepps march 20106
Pritzker construction zepps march 20105
Pritzker construction zepps march 20104
Pritzker construction cmpp 050103
Pritzker construction c1 panel setting
Pritzker construction milenium good
Pritzker paviliion photo copyr zahner 1861
Pritzker paviliion photo copyr zahner 1857

The structure reaches a height of one-hundred twenty feet. In several areas, the structure curves back on itself, becoming nearly horizontal. The metal surface of this project is clad in stainless steel with a custom flat seam panel for dual curvature. The near-flat surface it creates, allowing the viewer to focus on the entirety of the shape rather than being drawn to the individual lines. According to an interview with the architect, the proscenium was inspired by Gehry's 2001 flagship store for Issey Miyake in New York City, a sculptured titanium also made with Zahner.

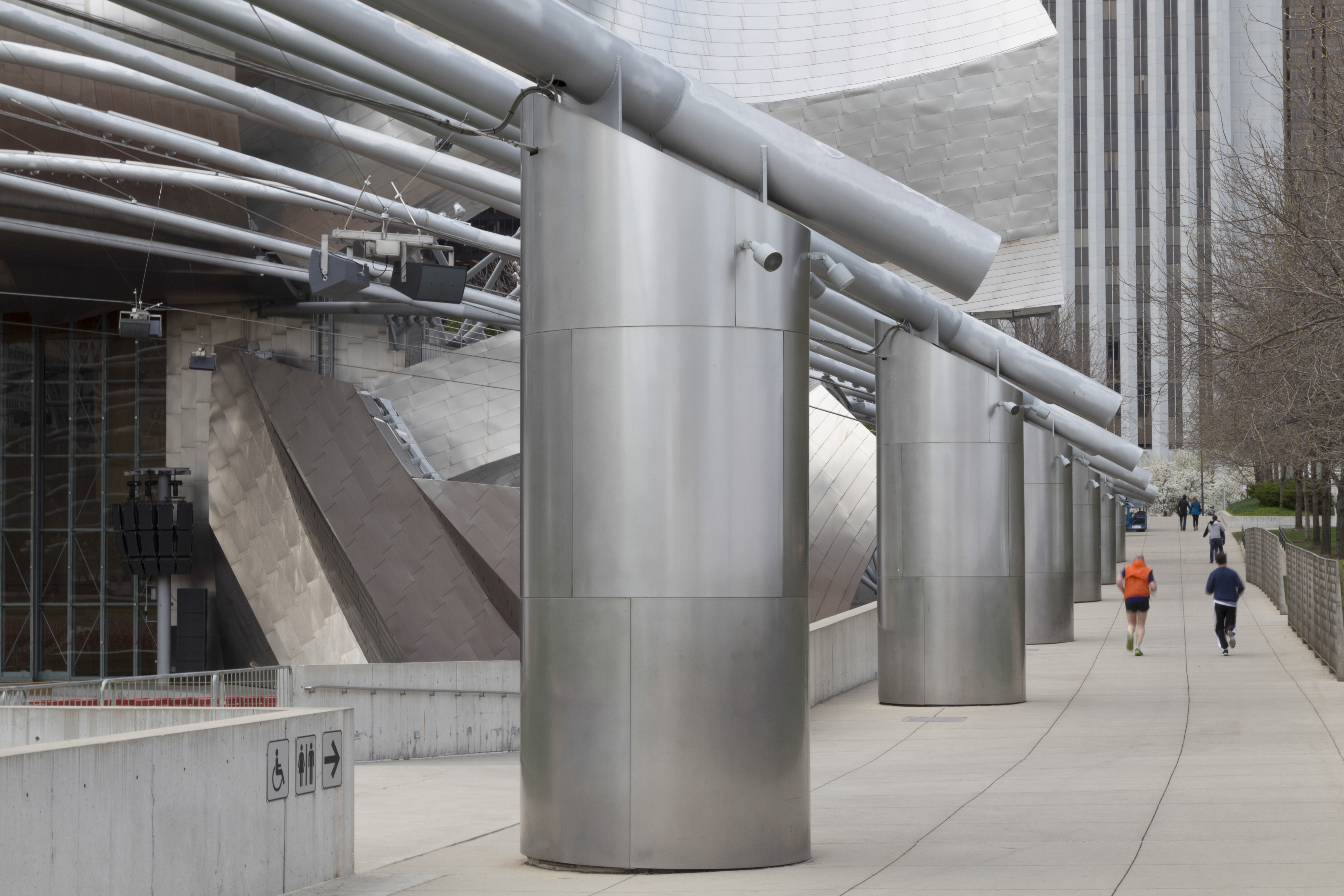

Zahner also completed all 24 of the 6' diameter column covers. These enclose the green area of the park and provide support for the overhead lighting and sound cage over the park. These column covers consist of heavy-gauge stainless steel plate panels rolled to shape and attached with interior fastening system. This method for attachment is a patented system developed by Zahner: Inverted Seam, a roofs and wall system with no exposed fasteners. The columns range in height from 12’ to over 24’ .

Each of the column covers is clad in a 10ga stainless steel, a heavier gauge than the 22ga stainless steel cladding the proscenium.

Pritzker paviliion photo copyr zahner 1856
