Mission Bay Block 27 Parking Structure

Mission Bay Block 27 is a parking structure serving the UCSF community of San Francisco. Featuring a facade by Zahner, the WRNS Studio design is a noted work of architecture for parking structures.

Located in the Mission Bay Block 27 of San Francisco, this design by WRNS Studio for Alexandria Real Estate, houses 1,420 parking spaces on seven elevated levels. The structure features a metal screen with perforated imagery of California's redwood forests. This facade was design-engineered by the Design Assist Group and produced by Zahner.

WRNS Studio desired an abstract pattern composed of four distinct oval cut-outs. They provided tree imagery and Zahner Design Engineers processed the imagery into the myriad of circular shapes to abstract the form. For the surface, the firm decided on a perforated bronze-anodized aluminum cladding, which covers the entirety of the metal scope for the garage.

Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Detail of the perforated aluminum facade system from within the garage.
Detail of the perforated aluminum facade system from within the garage.
Engineering drawing of the perforated facade layout used on the San Francisco parking structure.
Engineering drawing of the perforated facade layout used on the San Francisco parking structure.
Detail of the perforated aluminum facade system from within the garage.
Detail of the perforated aluminum facade system from within the garage.

How WRNS Created its Mosaic-Perforated Metal Facade

The aluminum's punch-pattern was generated using a photograph of foliage. The image was run through several computer processes to rapidly produce the millions of custom perforated panels. Note: Zahner now offers an online tool for creating perforated metal panels at ImageWall for ShopFloor. This computer-to-machine language translation runs on the ZIRA™ Technology, a patented process (* Patent No. 7,212,688 B2 - May, 2007) for translating the architect's imagery into pixelized metal, perforated and/or bumped panels.

This project was an experimental use of the ZIRA™ Process, as the individual punched shapes were integral to the project. Instead of the typical round and square punches, the designer selected four elliptical punch patterns which were custom-manufactured to complete the surface of the screen-wall. The ZIRA™ Technology allows architects, designers, and engineers to transfer an image onto the surface of metal using physical processes such as perforation, bumped and dimpled surface patterns, as well as waterjet cut patterns and other physical alterations.

Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Parking
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.
Mission Bay Block 27 Parking Structure at Alexandria.

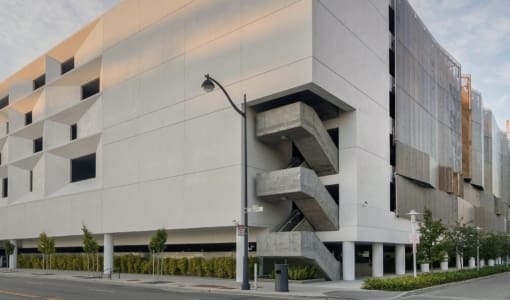

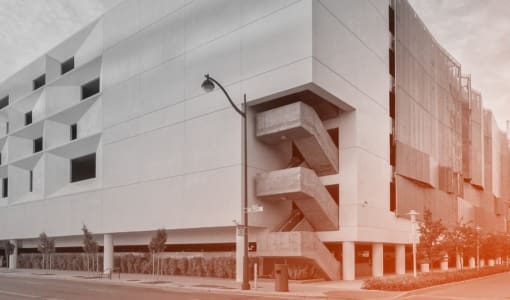

The northwest and south sides of the parking structure feature an intriguing stucco facade.
The northwest and south sides of the parking structure feature an intriguing stucco facade.
Mission Bay Parking
Mockup of the WRNS concept, punched on aluminum plate metal.
Mockup of the WRNS concept, punched on aluminum plate metal.
Detail of the perforated zigzag aluminum system used to cool and ventilate the school's parking garage.
Detail of the perforated zigzag aluminum system used to cool and ventilate the school's parking garage.
Detail of the perforated zigzag aluminum system used to cool and ventilate the school's parking garage.
Detail of the perforated zigzag aluminum system used to cool and ventilate the school's parking garage.
