Queen Anne’s Lace

October 18, 2017/in Art & Sculpture Private Art Kansas City Dierk Van Keppel, L. William Zahner Blue, Brown, Green, Indigo, Light blue, Orange, Red, Rose S 2010 /by cmorris

Queen Anne’s Lace artwork for Private Residence

Queen Anne’s Lace is an artwork made in collaboration with Dierk van Keppel for a private residence, manufactured using Zahner CNC-cut 1/2″ plate aluminum. The artwork draws inspiration from an image of the Queen Anne’s Lace flower found in the collector’s garden.

Zahner worked with Dierk Van Keppel whose studio at Rock Cottage Glass created the glass inlay for the artwork. The metal component of the piece was made in aluminum at the Zahner facility in Kansas City. The aluminum surface is processed with a GB-60 finish, providing a muted reflectivity.

Related Project

Queen Anne’s Lace

Detail of the Queen Anne's Lace artwork, showing how light can pass through the glass inlays.

IwamotoScott

August 15, 2016/in Exterior Architecture Parking Structure Miami--Florida Iwamoto Scott, TimHaahs Blue, Blue-grey, Light blue L 2015 /by cmorris

City View Garage, Miami Design District

A geometric display of varying blue-toned aluminum skins adorns the Southeastern facade of the City View Garage in the Miami Design District. Designed by IwamotoScott Architecture, the Zahner-manufactured facade was developed in Kansas City and shipped as nesting parts to the job site in Miami, Florida. Zahner field installers hung the panels.

Sited along the Southern edge of the Miami Design District adjacent to I-195, the parking structure is part of a larger plan to bring arts, luxury, and culture into the new district. The main body of the building is a parking structure above a level of retail storefront and includes a small six story office block.

The building’s design averted the need for industrial ventilation of the parking area. IwamotoScott met this challenge with a modular decorative metal screen, whose mechanically-folded aluminum system features variously sized apertures to provide the required porosity for natural ventilation.

City View Garage with IwamotoScott facade.

IwamotoScott was commissioned alongside New York-based architects Leong Leong and Southern California-based artist John Baldessari, by Dacra and L Real Estate to create three unique facades for the City View Garage in Miami’s Design District. The IwamotoScott portion of the facade wraps around the parking structure’s Southeast corner and includes an elevator lobby, exterior stair, and the office block.

featuring Baldessari's artwork between the Leong Leong Facade and the IwamotoScott facade.

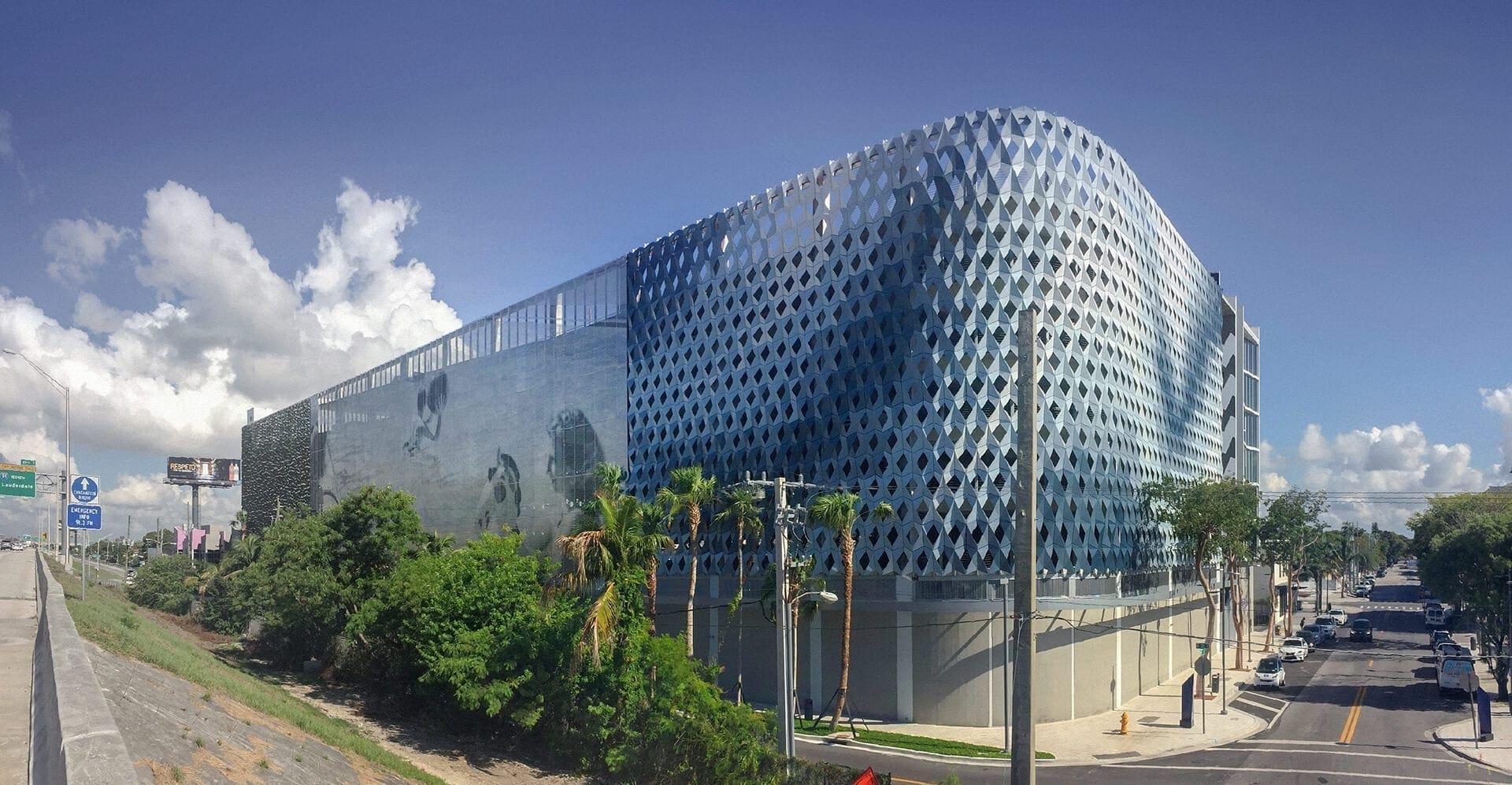

Photo of IwamotoScott Facade for the Miami Design District City View Garage

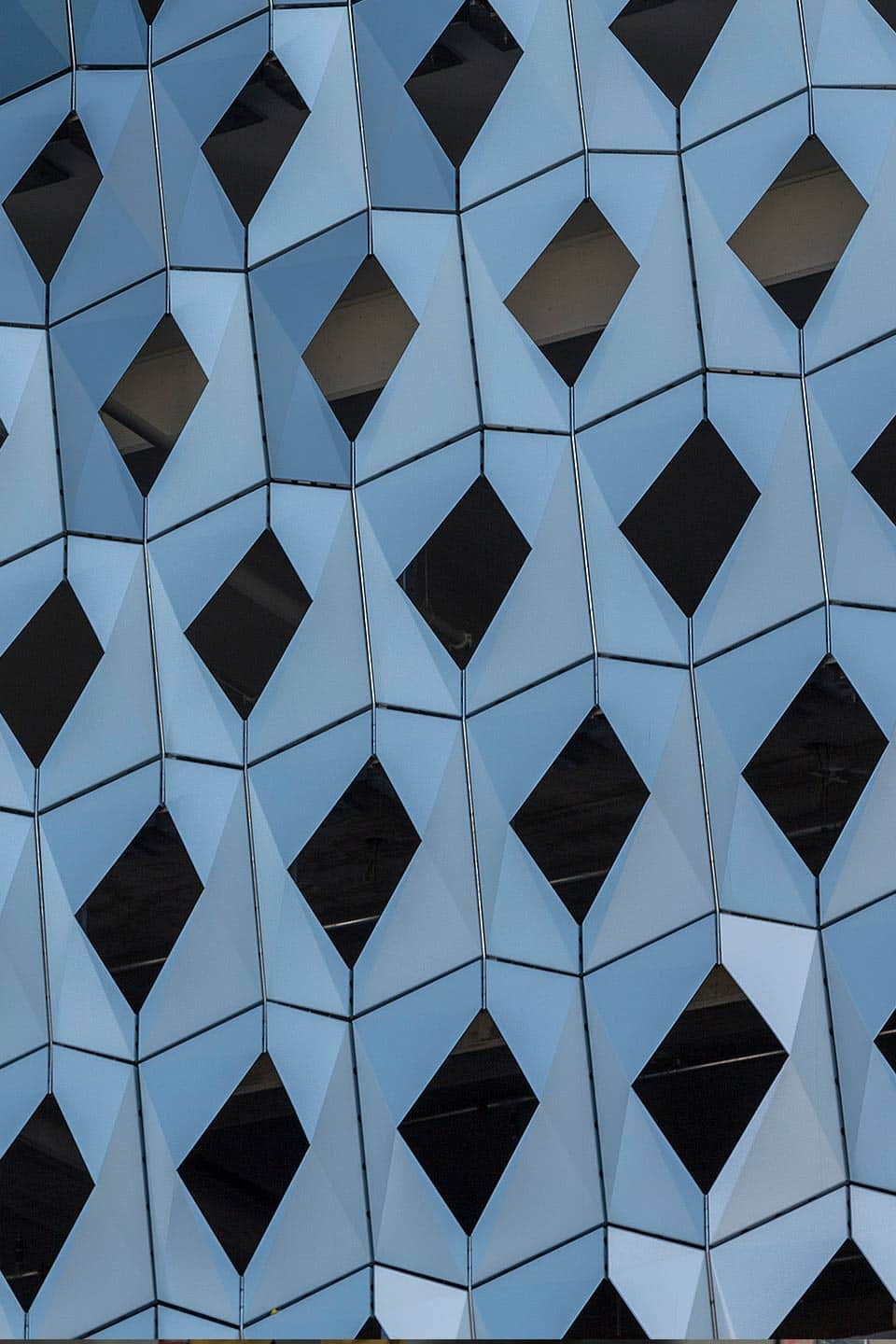

Detail of the IwamotoScott Facade for the Miami Design District City View Garage.

Photo © A. Zahner Co.

Interior detail view of the IwamotoScott Facade for the Miami Design District City View Garage

Interior and roof view of the IwamotoScott Facade for the Miami Design District City View Garage.

Photo © A. Zahner Company.

Photograph of the IwamotoScott Facade during construction, Miami Design District City View Garage.

PHOTO © A. ZAHNER COMPANY.

Developing the IwamotoScott facade for City View Garage

There are five different repeating modules, which are custom-fabricated by Zahner using 40 panel types. Zahner developed the modular design using powercopies to programmatically control the design’s various parts in both the operational engineering, plant, and hanging in the field.

The aluminum parts were painted using a gradient coloring scheme, which provides a subtle gradation of its five unique aperture sizes, suspended from fins which cantilever from the edges of the garage’s concrete slabs.

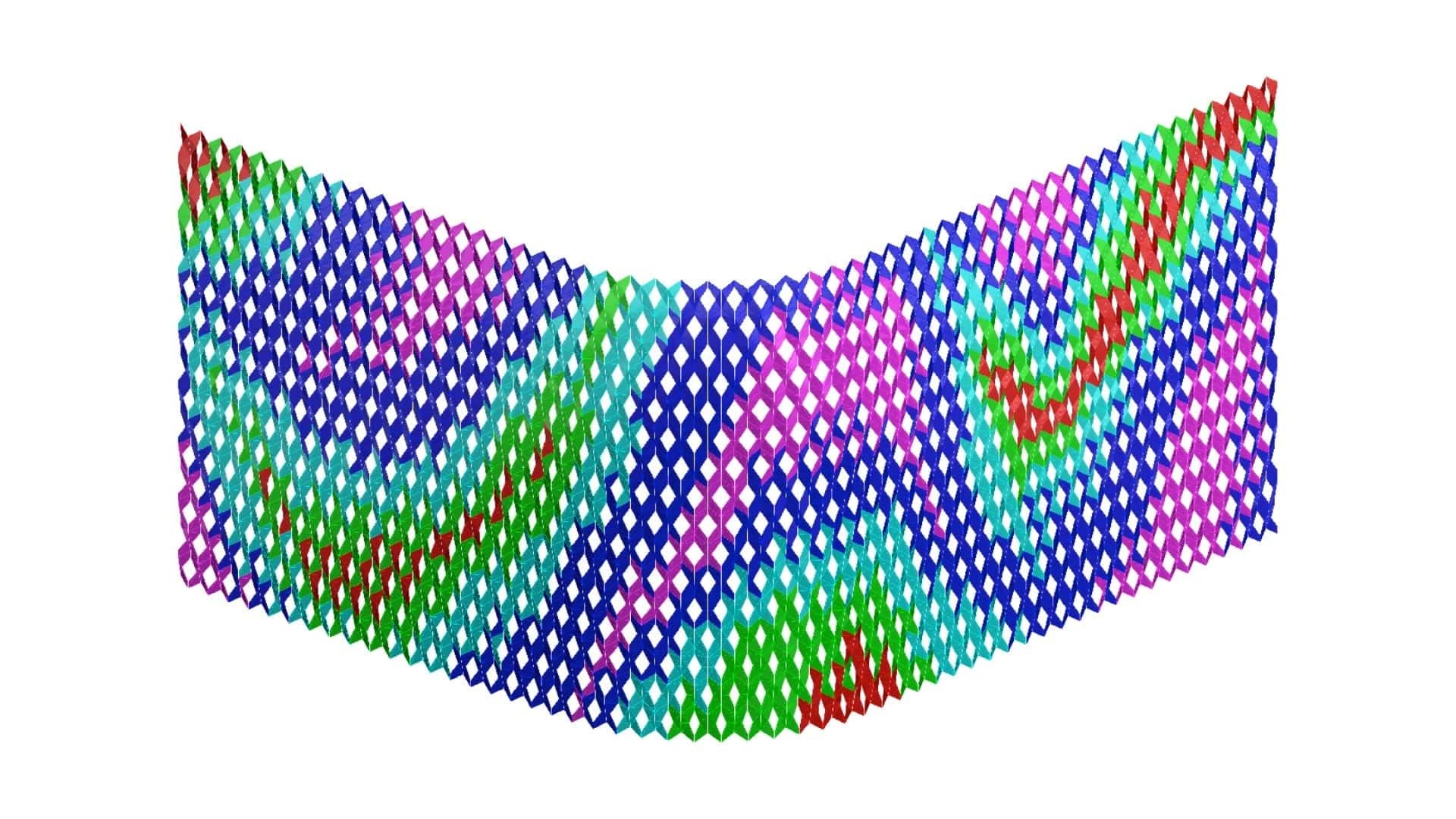

Digital model of the IwamotoScott facade, color-coded to indicate its five repeating panel types.

IMAGE © A. ZAHNER COMPANY.

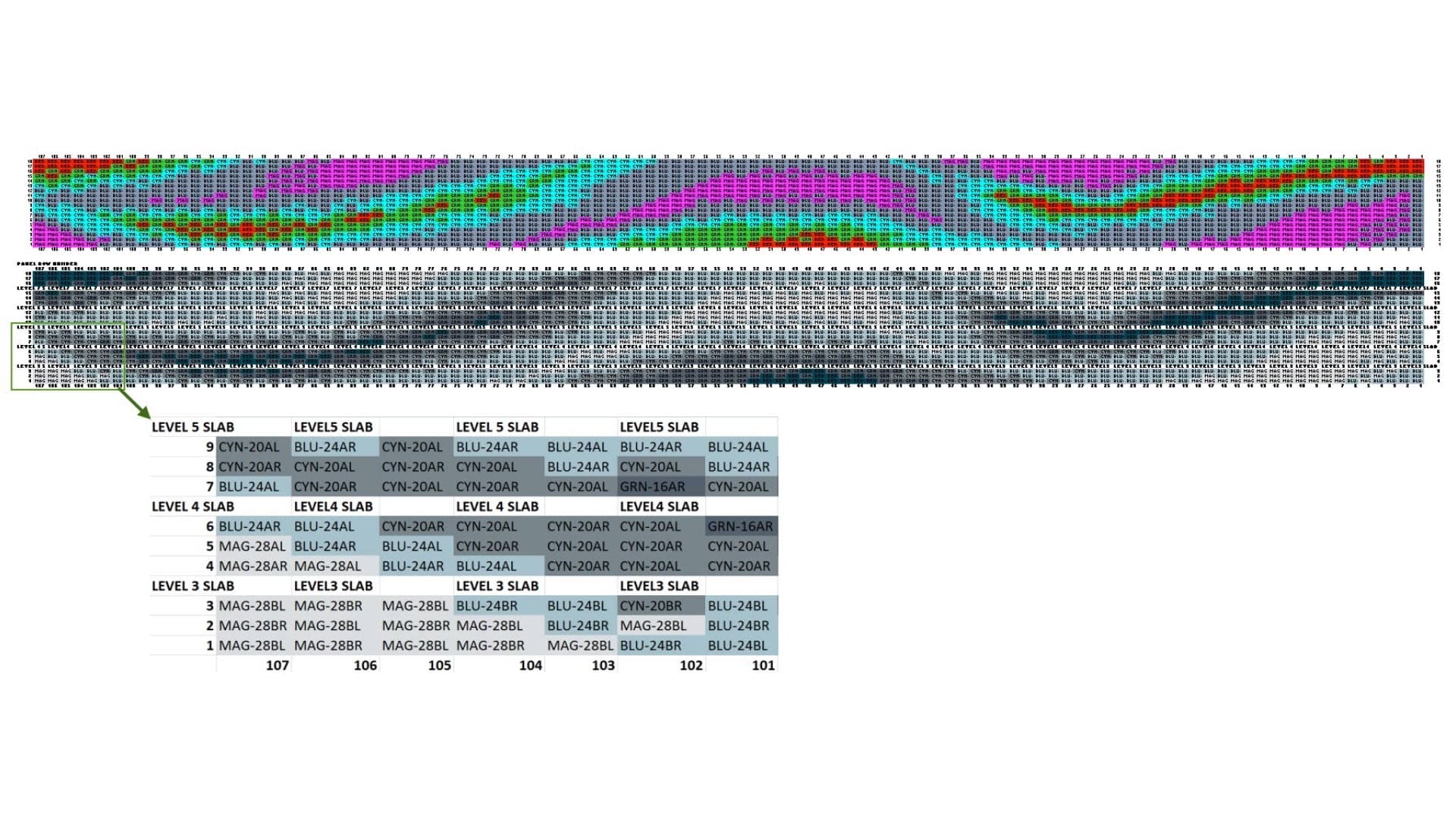

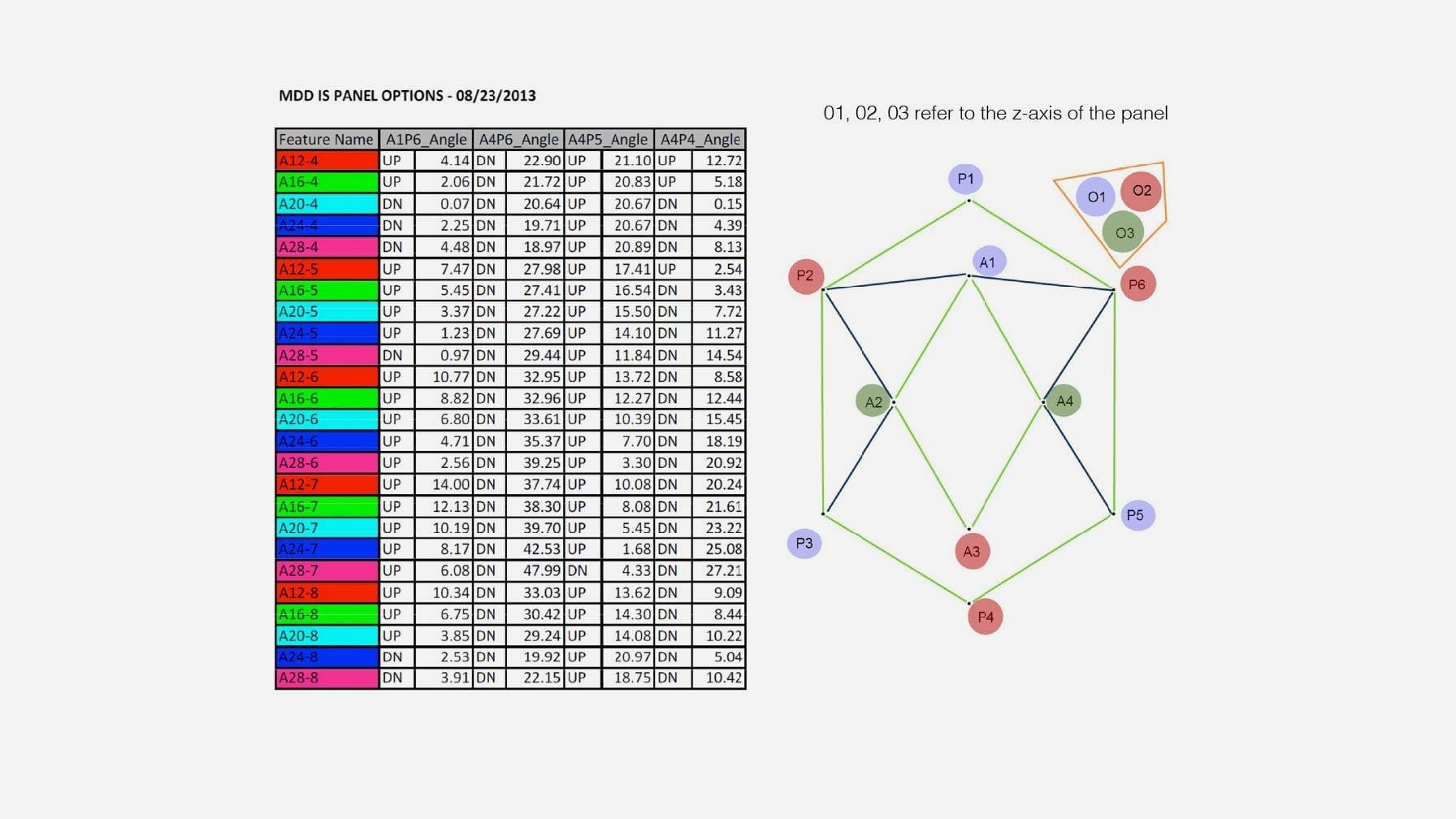

Diagrams for the IwamotoScott Facade for the Miami Design District City View Garage.

IMAGE © A. ZAHNER COMPANY.

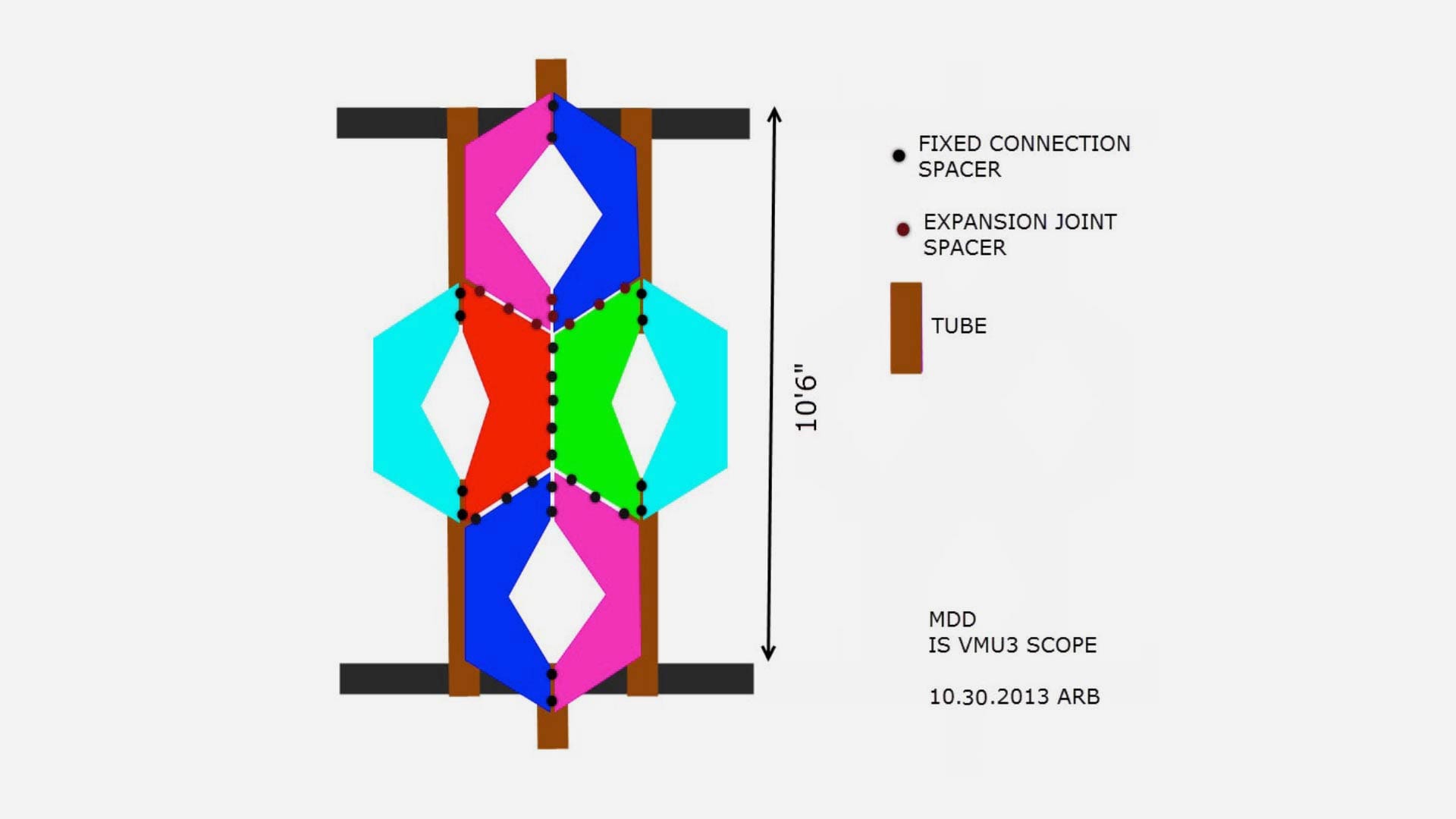

Diagram of the 40 panel types used to create the IwamotoScott Facade at Miami Design District.

Images © A. Zahner Company.

Nested parts for the IwamotoScott facade in the Zahner Kansas City facility.

Photo © A. Zahner Company.

Example photo of the crated IwamotoScott facade parts used on the City View Garage

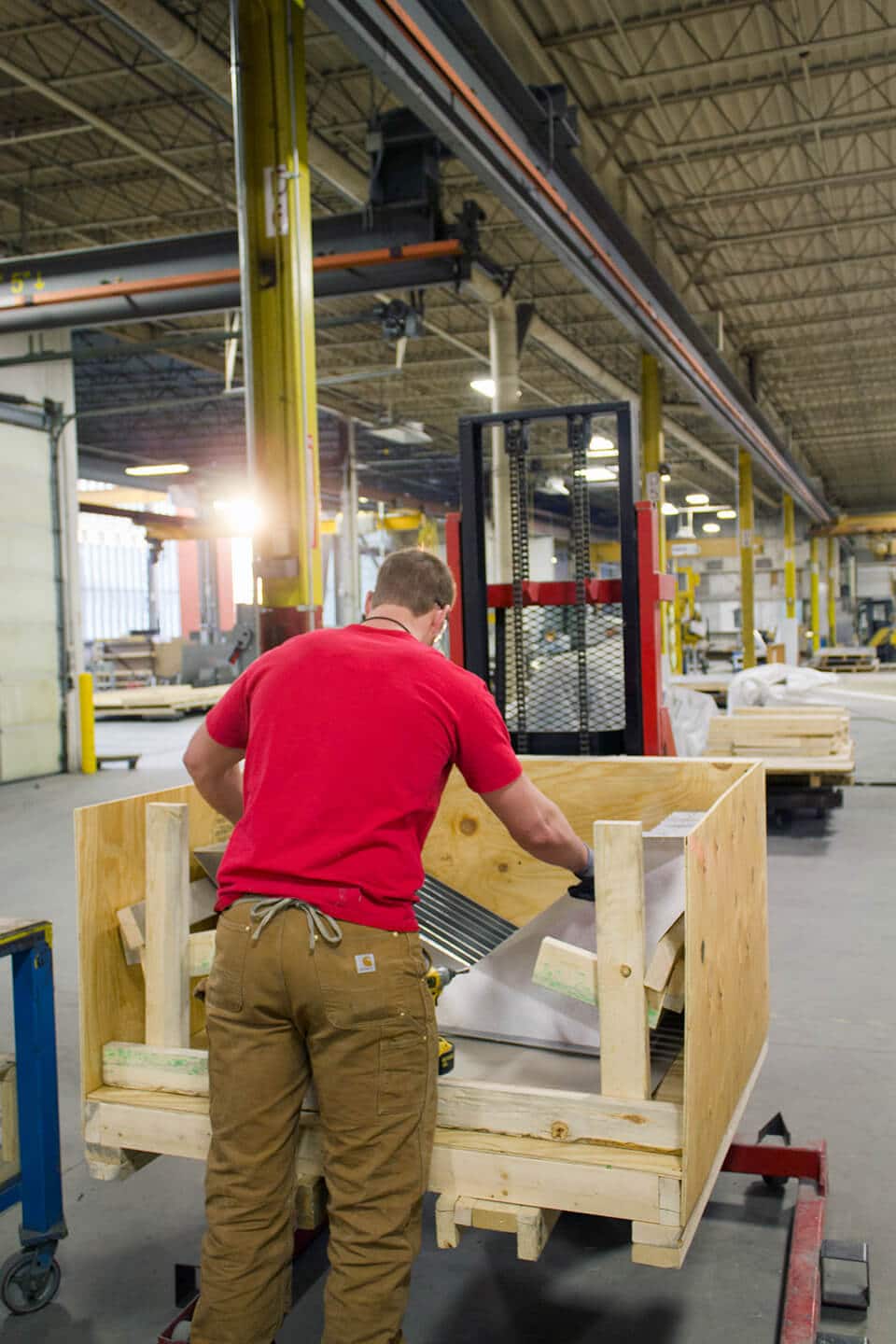

Zahner fabricator crates the aluminum parts for the IwamotoScott Facade.

Photo © A. Zahner Company.

Detail of the IwamotoScott Facade for the Miami Design District City View Garage.

Photo of the IwamotoScott Facade for the Miami Design District City View Garage

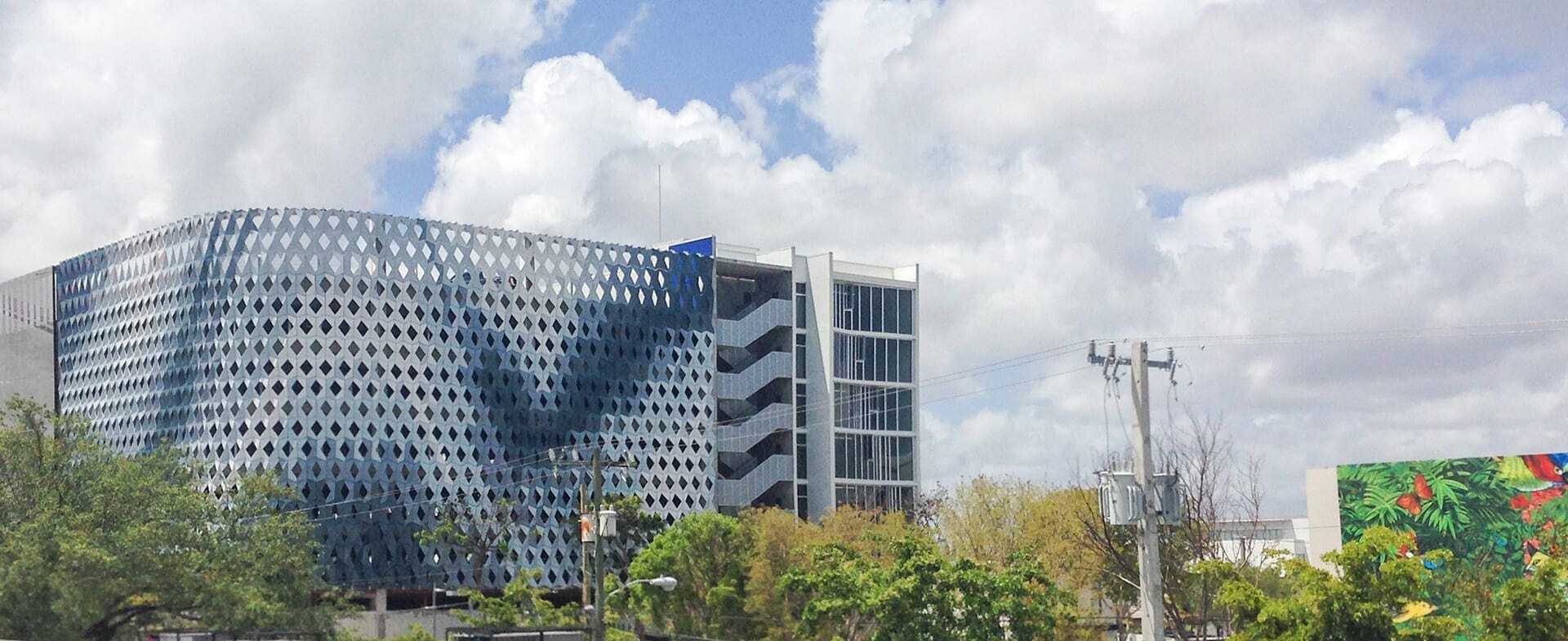

Eastern view of the IwamotoScott Facade for the Miami Design District City View Garage.

Photo © A. Zahner Company.

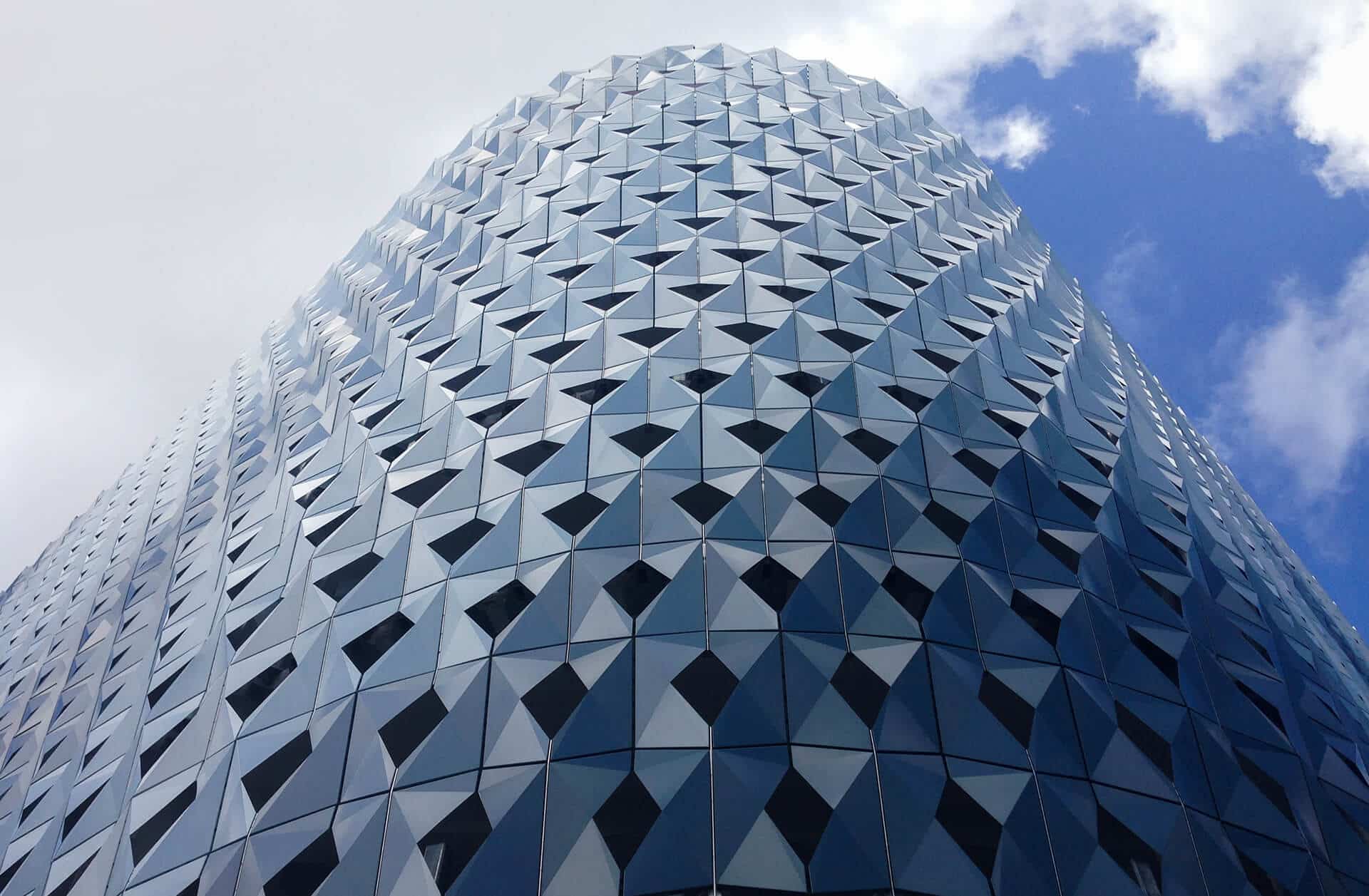

Upward view of the IwamotoScott Facade for the Miami Design District City View Garage.

MoPop Museum

August 15, 2016/in Exterior Architecture Museum Seattle--Washington Frank Gehry Partners, LMN Architects Gold, Light blue, Red, Silver, Violet, White XL 2000 /by cmorris

Museum of Pop Culture (MoPOP)

Jimi Hendrix inspired the name, Frank Gehry designed the project, and Zahner produced the stunning curvilinear forms and structure. Residing in the shadow of the Seattle Space Needle, the Experience Music Project (now the Museum of Pop Culture, or MoPOP) was completed in 2000.

Gehry’s unique design required a creative approach to engineering and fabrication. The Museum was one of the first projects to use ZEPPS, the Zahner technology for producing curvilinear and complex structures. The process resulted in 3,300 unique structural assemblies clad in 21,000 metal sheets — for a total surface area of more than 140,000 square feet of curving metal. No two sheets and no two panel assemblies are the same.

Surface techniques are similarly varied, and include Angel Hair stainless steel, red interference-coated stainless steel and fluorocarbon-coated aluminum.

“

The most complex exterior skin ever devised for a building.

Civil Engineering MagazineSteve M. Huey.

Constructing the Building Envelope

Working with Gehry’s design, the Zahner team developed a process for reducing curves into large, pre-fabricated assemblies which could then be easily shipped and rapidly installed. Thus, the Zahner Engineered Profiled Panel System (ZEPPS) came into being.

At its core, the ZEPPS process consists of an aluminum support structure, clad in a layer of sheet metal. A final metal layer (of the designer’s selection) completes the assembly and is usually installed onsite. The ZEPPS process efficiently produces complex forms with minimal waste, reducing a building’s ecological footprint.

Since the EMP Museum’s completion, the ZEPPS system has undergone several iterations, growing more powerful, accurate, and refined. The process continues to be the preferred method for manufacturing sculptural form.

Clyde Frazier NYC

August 15, 2016/in Interior Architecture Restaurant New York City Morphosis Black, Blue, Blue-grey, Brown, Charcoal, Gold, Green, Grey, Indigo, Light blue, Magenta, Orange, Red, Silver, Violet, White, Yellow M 2012 /by cmorris

Clyde Frazier’s Wine & Dine in New York City

Clyde Frazier’s Wine & Dine is a new construction high-end sports bar and eatery designed by Morphosis. The space features a Zahner-manufactured ceiling, made using generative design and automated fabrication.

Designed by Morphosis for NBA Champion and former New York Knicks Player Walt Clyde Frazier, this New York City restaurant expands a full city block in the Hell’s Kitchen neighborhood. A swarm of suit jackets dominates the central corridor of Clyde Frazier’s Wine and Dine, a 10,000 square foot experience which mixes American and Asian cuisines.

Zahner provided the ceiling architectural feature. This ceiling is made up of custom cut and folded aluminum plates, 544 in total. The aluminum plates are printed from photographs of Mr. Frazier’s suit jackets. These parts are segmented into six unique shapes, where are placed at intervals of increasing distance. This interval placement creates the illusion that every part is unique.

Clyde Frazier's Wine & Dine in New York City.

The colors in the model categorize the panels according to breaks and sizes. Between the differing anchor placements, prints, panel sizes, and panel shapes, all 544 aluminum panels ended up being unique.

Even more complex were the ribs which held them in place. Because the panels were anchored at different angles, every drill hole had to be custom placed. Thus, each of the 69 ribs had 6 segments for a total of 463 segments, each with 3 unique faces.

3D model for Clyde Frazier's Wine and Dine.

“The transformative feature in the room, however, is suspended from the ceiling, where a 170-foot-long assemblage of colorful, patterned, flat and folded aluminum fins floats over the dining area, bar, and lounge. Morphosis found the stripes, plaids, and prints for this polychromatic sculptural reef in Frazier’s closets.

The architects photographed their contents and, working with Zahner’s metal fabricators, digitally printed images for a film adhesive applied to 544 aluminum panels of six shapes. The palette varies from blue to brown-gold to charcoal, with red painted undersides enhancing the gestalt. ‘It’s mesmerizing,’ says Frazier.” — Suzanne Stephens, Architectural Record.
